Disassemble and reassemble
1 Indoor unit
Stop operation of the air conditioner and remove the power cable before repairing the unit.
If you disassemble the heat exchanger, you must pump down at first.

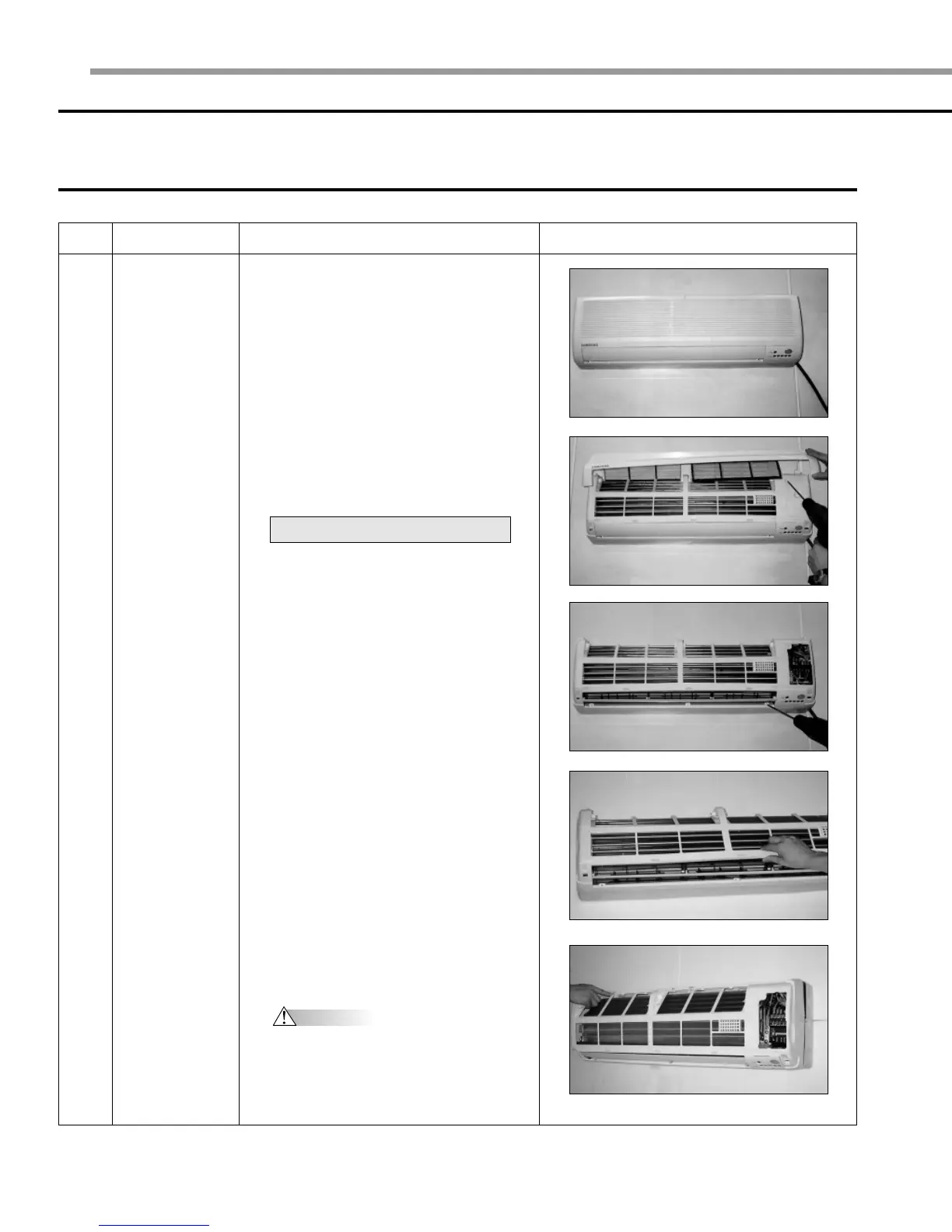

No. Part Procedure Remark
Front Panel
1
1) Stop the operation of the air conditioner
and block the main power.
2) Separate the tape from the front panel.
3) Contract the second finger to the left,
and right handle. And pull the inlet grille
to open.
4) Take the left and right filter out.
5) Loosen one of the right screw and
separate the terminal cover.
6) Loosen three screws of front panel.
7) Pull the upper left, center and right of
discharge softly so that the outside
cover is pulled out.
8) Pull softly the lower part of discharge and
push it up.
Caution
Assemble the front panel and fix the
hooks of left, center and right.
*Taking off the deodorizing filter.
ΙΙ
