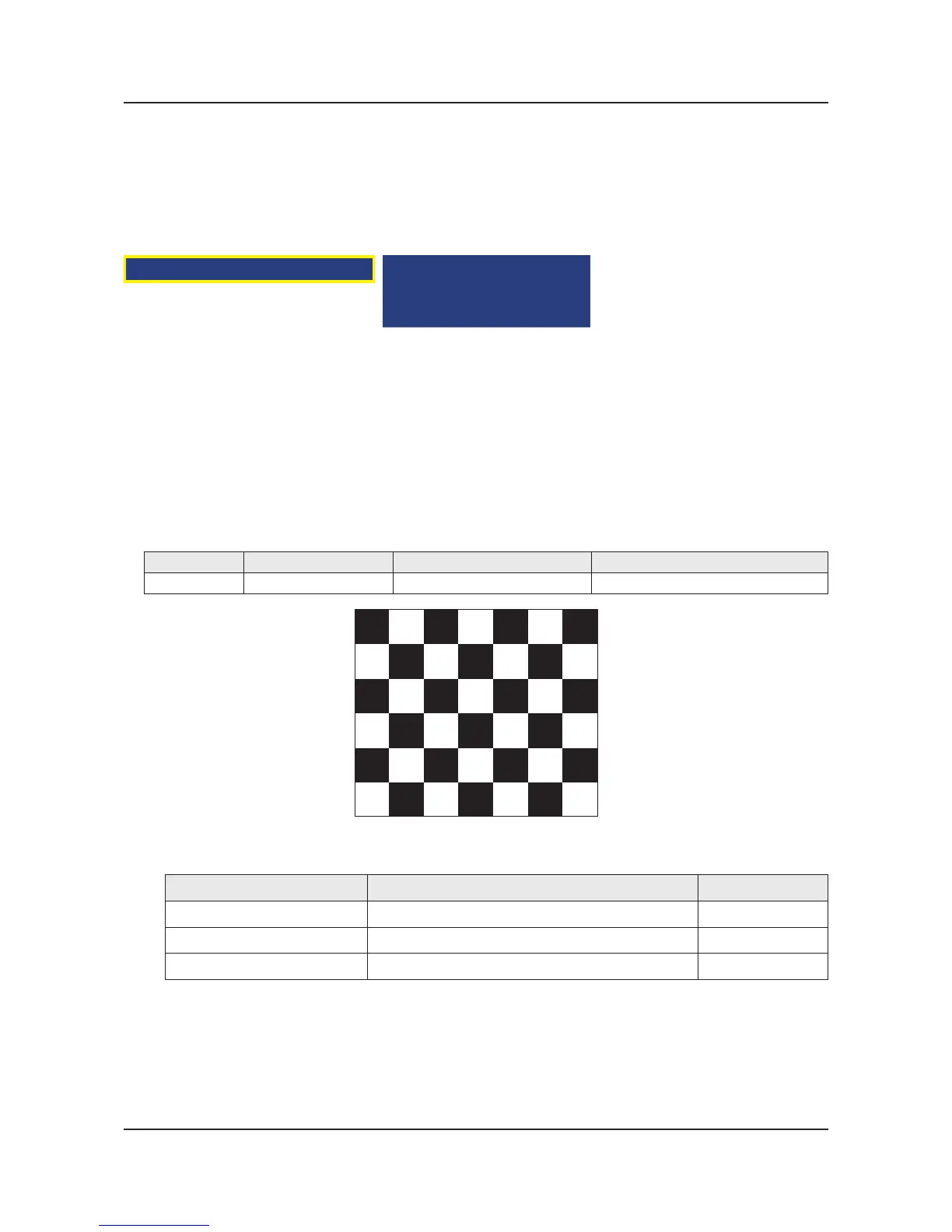

4-3. White Balance
4-3-1. Calibration
Into the Factory Mode.1.
Select 2.
ADC/WB menu.
Select 3.
ADC menu.
ADC / WB
AV Calibration
Comp Calibration
HDMI Calibration
4-3-2. Service Adjustment
You must perform Calibration in the Lattice Pattern before adjusting the White Balance.
Color Calibration ¢
Adjust Specification•
Source Setting Mode Pattern Use Equipment
HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator
(Chess Pattern)
Use other equipment only after comparing the result with that of the Master equipment. -
Input mode Calibration Pattern
CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice
Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice
HDMI IN Perform in 720p B&W Pattern #24
Lattice
4-22
4. Troubleshooting
