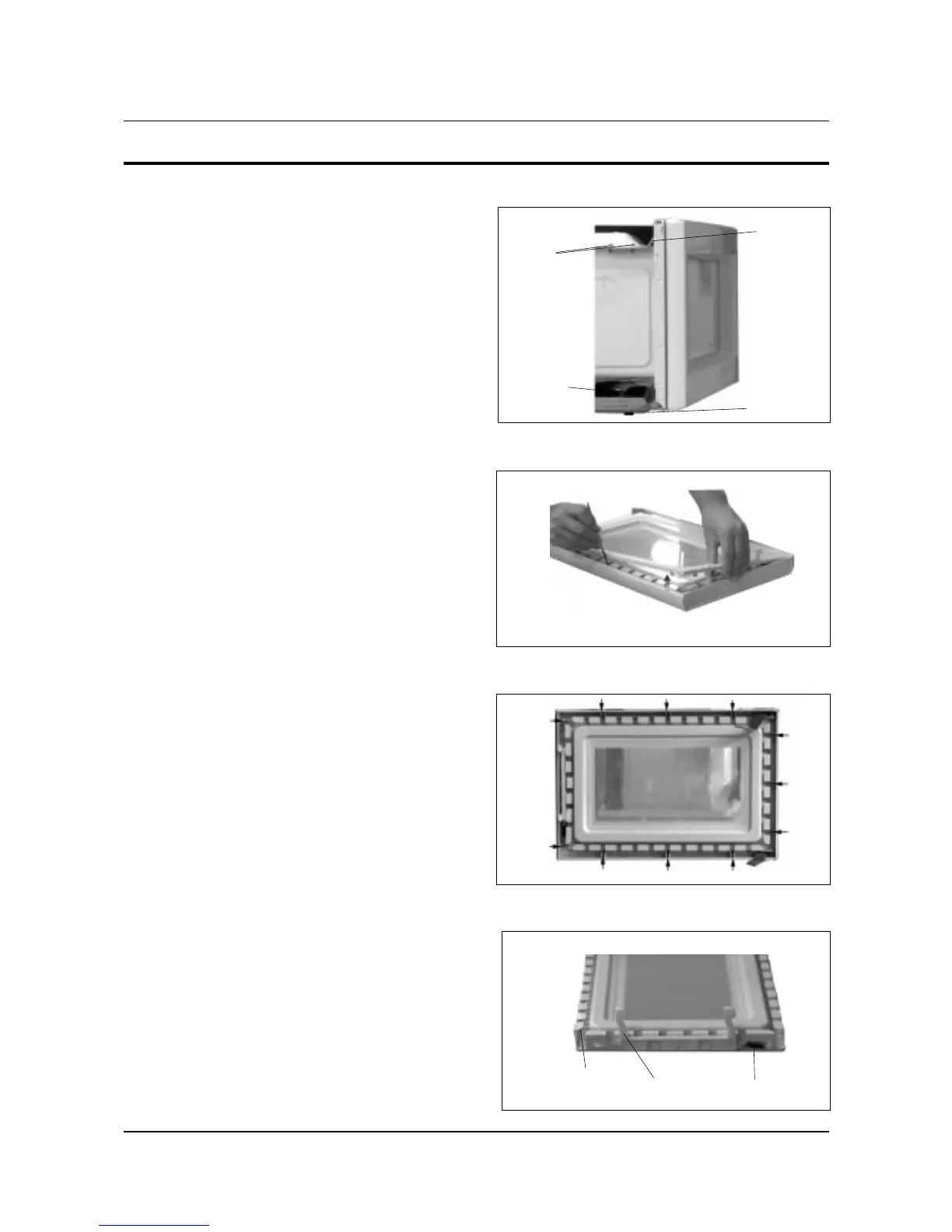

4-3 Replacement of Door Assembly
4-2 Samsung Electronics
Disassembly and Reassembly
Upper Hinge
Lower Hinge
Screws
Door "E"
Key Door
Spring
Screw
4-3-1 Removal of Door Assembly
Remove hex bolts securing the upper hinge and
lower hinge. Then remove the door assembly.
Insert flat screwdriver into the gap between Door
"E" and Door "C" to remove Door "C". Be careful
when handling Door "C" because it is fragile.
Following the procedure as shown in the figure,
insert and bend a thin metal plate between Door
"E" and Door "A" until you hear the 'tick' sound.
1. Insertion depth of the thin metal plate should be
0.5mm or less.
4-3-4 Removal of Key Door & Spring
Remove pin hinge from Door "E"
Detach spring from Door "E" and key door.
4-3-2 Removal of Door "C"
4-3-3 Removal of Door "E"
