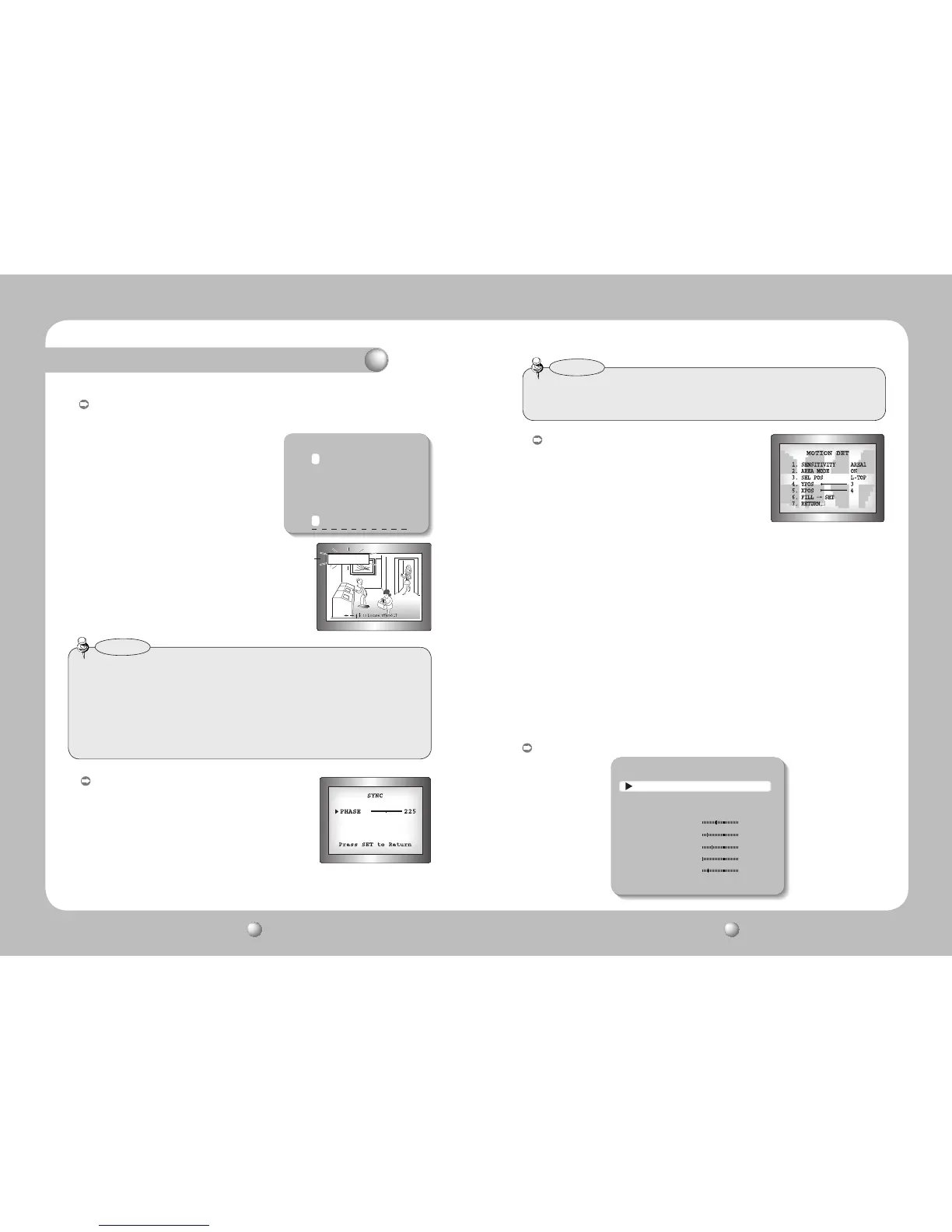

Operating Your Camera

CAMTITLE:Ifyouenteratitle,thetitlewillappearonthemonitor.
  1)IftheSPECIALmenuscreenisdisplayed,usetheUpandDownbuttonssothatthe
arrowindicates‘CAMTITLE’.
2) Set it to ‘ON’ by using the Left and Right buttons.
5) Enter a title, move the cursor to ‘POS’ and press
the SET button. The entered title appears on the
screen. Select the position to display the title on
the screen by using the 4 direction buttons and
press the SET button. When the position is
determined, select ‘END’ and press the SET button
toreturntotheSPECIALmenu.
MOTION DET
:
This product has a feature that allows you to observe
movement of objects in 8 different areas on the screen,
and the words 'MOTION DETECTED' appear on the
screen when movement is detected.
you can monitor activity more efficient.
FRONT DOOR
1)WhentheSPECIALmenuscreenisdisplayed,presstheUpandDownbuttonsso
that the arrow indicatesMOTION DET.
 2) Set up the mode using the 4 direction buttons.
- SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is high,
motion detection sensitivity is increased to recognize even small
movement.
- AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.
- SEL POS : Determines which of the 4 vertices of each MD area is to be used.
- YPOS : Determines the coordinate of the vertical axis for SEL POS.
- XPOS : Determines the coordinate of the horizontal axis for SEL POS.
- FILLSET : Fills in a selected MD area. The color of filling is sequentially selected
as brown, orange, blue, cyan, green, yellow, magenta and red.
- RETURN : Select this to save the MOTION DET menu settings and return to the
SPECIAL menu.
3) Press the SET button.
4) Use the 4 direction buttons to move to a
desired letter and select the letter by
pressing the SET button. Repeat this to
enter multiple letters. You can enter up to
15 letters.
CAMERA TITLE SETUP
ABCDEFGHIJKLM
NOPQRSTUVWXYZ
abcdefghijklm
nopqrstuvwxyz
-.0123456789
CLR POS END
•WhentheCAMTITLEmenuis‘OFF’,notitlewillbedisplayedonthemonitorscreeneven
if you enter one.
•OnlyEnglishisavailableinthismode.
•IfyoumovethecursortoCLRandpresstheSETbutton,allthelettersaredeleted.Toedit
aletter,changethecursortothebottomleftarrowandpresstheSETbutton.Movethe
cursor over the letter to be edited, move the cursor to the letter to be inserted and then
presstheSETbutton.
Notes
• WhenusingACpowerat60Hzfrequency,youcanusetheL/Ltypesynchronization.
•WhenthepowerisDC12V,theSYNCmenuisfixedtothe‘INT’mode.
Notes

SYNC : Inareaswherethesupplyisat60Hz,youcan
synchronize the output phase of multiple cameras
using the power synchronization function (Line-
Lock) without using a synchronization signal
generator.
- INT : Internal Synchronization Type
- L/L : Power Synchronization Type, Line-lock
  •PresstheFunctionSetupswitch.
  •Youcanselectadesiredphasefrom0to359whenselect'phase'.
PRIVACY:Maskanareayouwanttohideonthescreen.
PRIVACY AREA SETUP
1. AREA AREA1
2. MODE OFF
3. MASK COLOR GREEN
4. MASK TONE 1
5. TOP 39
6. BOTTOM 79
7. LEFT 12
8. RIGHT 51
9. RETURN

Samsung SCB-2000 Specifications

General

Maximum resolution	- pixels
Number of TV lines	600
Supported video modes	-
Camera shutter speed	1/200 s
Minimum illumination	0.0001 lx
Sensor type	CCD
Optical sensor size	1/3 \
Optical zoom	- x
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Mounting type	Ceiling/wall
Product color	Black
Housing material	Aluminium, Steel
Ethernet LAN	No
AC input voltage	230 V
Power consumption (typical)	4 W
Cables included	Coaxial
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Dimensions (WxDxH)	58 x 121 x 52 mm

Weight and Dimensions

Depth	121 mm
Width	58 mm
Height	52 mm
Weight	510 g
