27

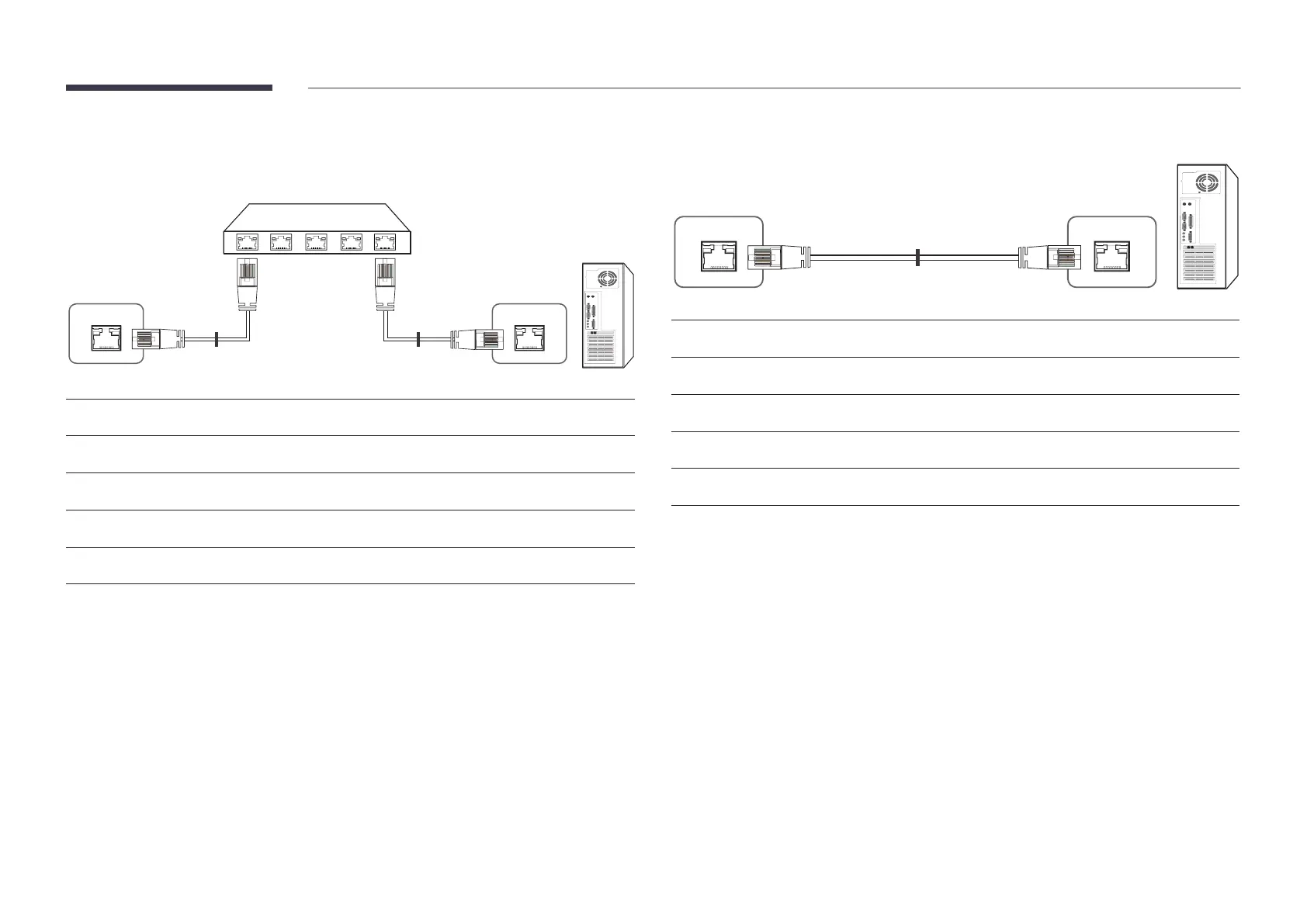

Connector : RJ45
Direct LAN cable (PC to HUB)
RJ45 RJ45 MDC
HUB
P1
P1P2
P2
Signal
P1 P2 Signal
TX+
1 <--------> 1 TX+
TX-
2 <--------> 2 TX-
RX+
3 <--------> 3 RX+
RX-
<--------> RX-
Cross LAN cable (PC to PC)
RJ45
P1 P2
Signal
P1 P2 Signal
TX+
1 <--------> 3 RX+
TX-
2 <--------> RX-
RX+
3 <--------> 1 TX+
RX-
<--------> 2 TX-
