3. Disassembly and Reassembly
3-1 Cabinet and PCB
Samsung Electronics 3-1
3-1-1 Ass'y top Removal
1) Remove Rubber Right q.
2) Remove 3 Screws w, e, r.
3) Remove Ass'y Top t.
4) Remove FPC Photo y.

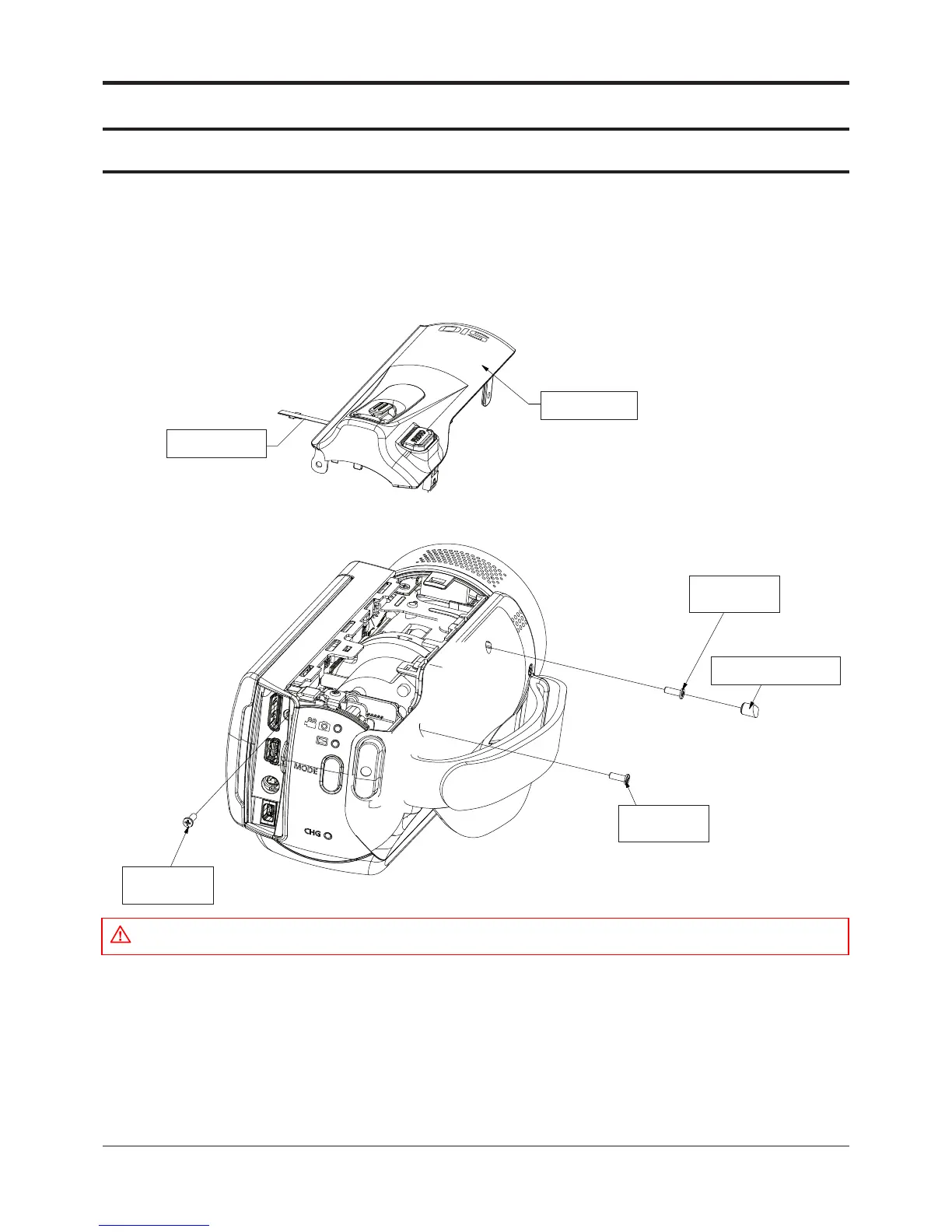

Fig. 3-1 Ass'y Top Removal
r 1 SCREW
(M 1.7 X 5B)
e 1 SCREW
(M 1.7 X 5B)
w 1 SCREW
(M 1.7 X 5B)
t ASS'Y TOP
q RUBEER RIGHT
y FPC PHOTO
Caution : FPC Must be remove with care
