installation & connection
20_ installation & connection
3.

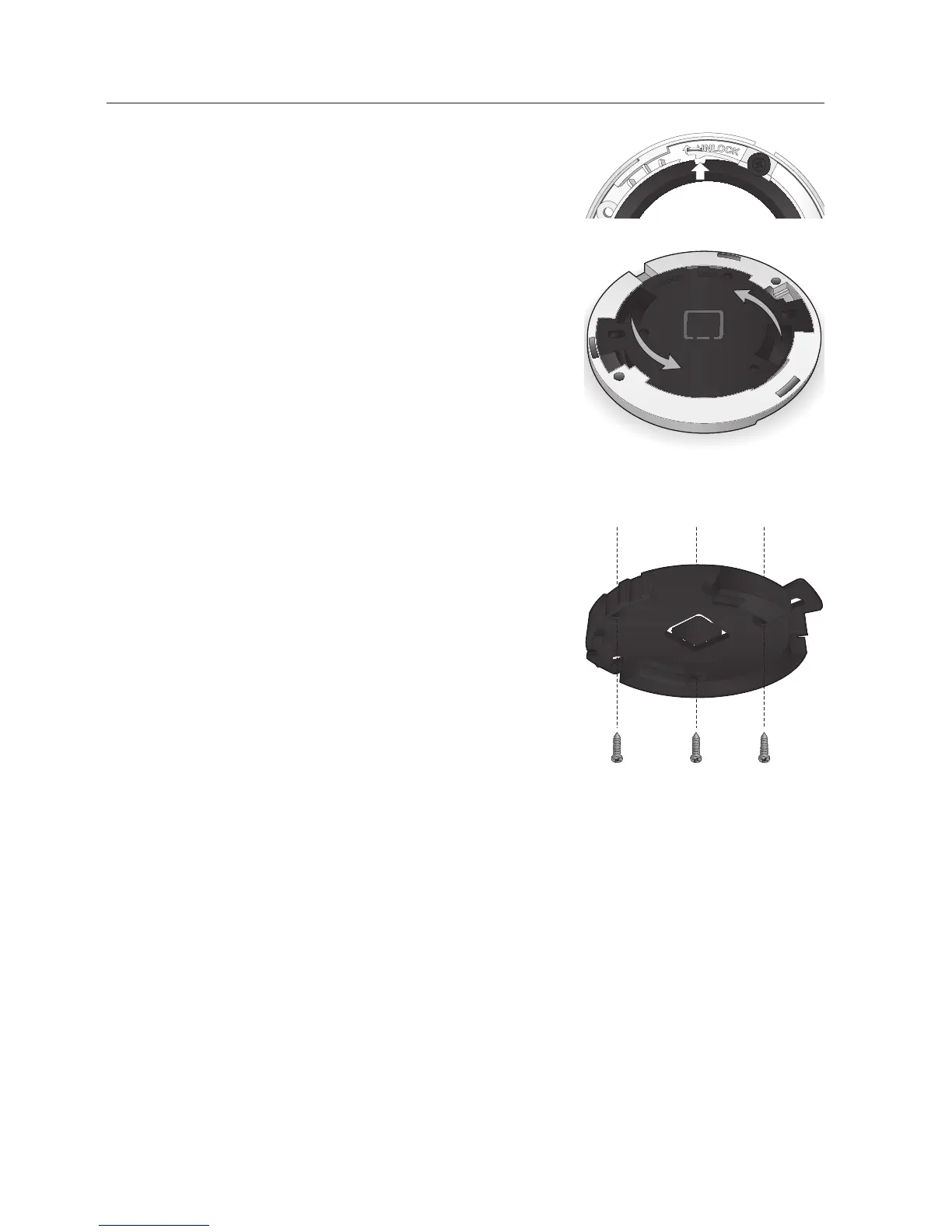

While pushing the ratchet toward <UNLOCK>
direction outwards, turn the bracket to <UNLOCK>
direction using bottom groove to separate it.
Installation
1. Use the provided screws (x3) to fix the bracket to
a desired position (ceiling or wall).
`
Ensure that the <FRONT> label on the bracket faces the
direction for camera monitoring.
2. Arrange the cables through the bracket to the
ceiling or wall.
`
If you intend to drill a hole in the installation site for the
wiring purpose, remove the wiring cover by force to reveal
a hole. Arrange the cables through the hole. If you intend
to arrange the cables without drilling a hole, use the empty
area opposite to the <FRONT> label side for the wiring
purpose.
3. Mount the main unit onto the bracket.
Align the marking hole of the main unit with the <FRONT> label of the bracket, and
turn the unit in the <LOCK> direction.
4. Adjust the lens in a desired direction.
For adjusting the lens direction, refer to “Adjusting the monitoring direction for
the camera”. (page 23)
5. Fix the cover to the main unit.
`
Fit the protruding part inside the cover into the corresponding hole of the main unit, and turn the
cover to fix it.
Wiring Cover
To Next Page
