Samsung UE32EH4000W User Manual

English - 7
SERVICE
SERVICE
Connector for service only.
✎✎ NOTE
• For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) port.
• If an HDMI to DVI cable is connected to the HDMI IN 1(DVI) port, the audio does not work.
• The interlace mode is not supported.
• The set might operate abnormally if a non-standard video format is selected.
• Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
• PC(D-Sub) and PC/DVI AUDIO IN input are not supported.
• Connecting through the HDMI cable may not be supported depending on the PC.
• The headphone jack supports only the 3 conductor tip-ring-sleeve (TRS) type.

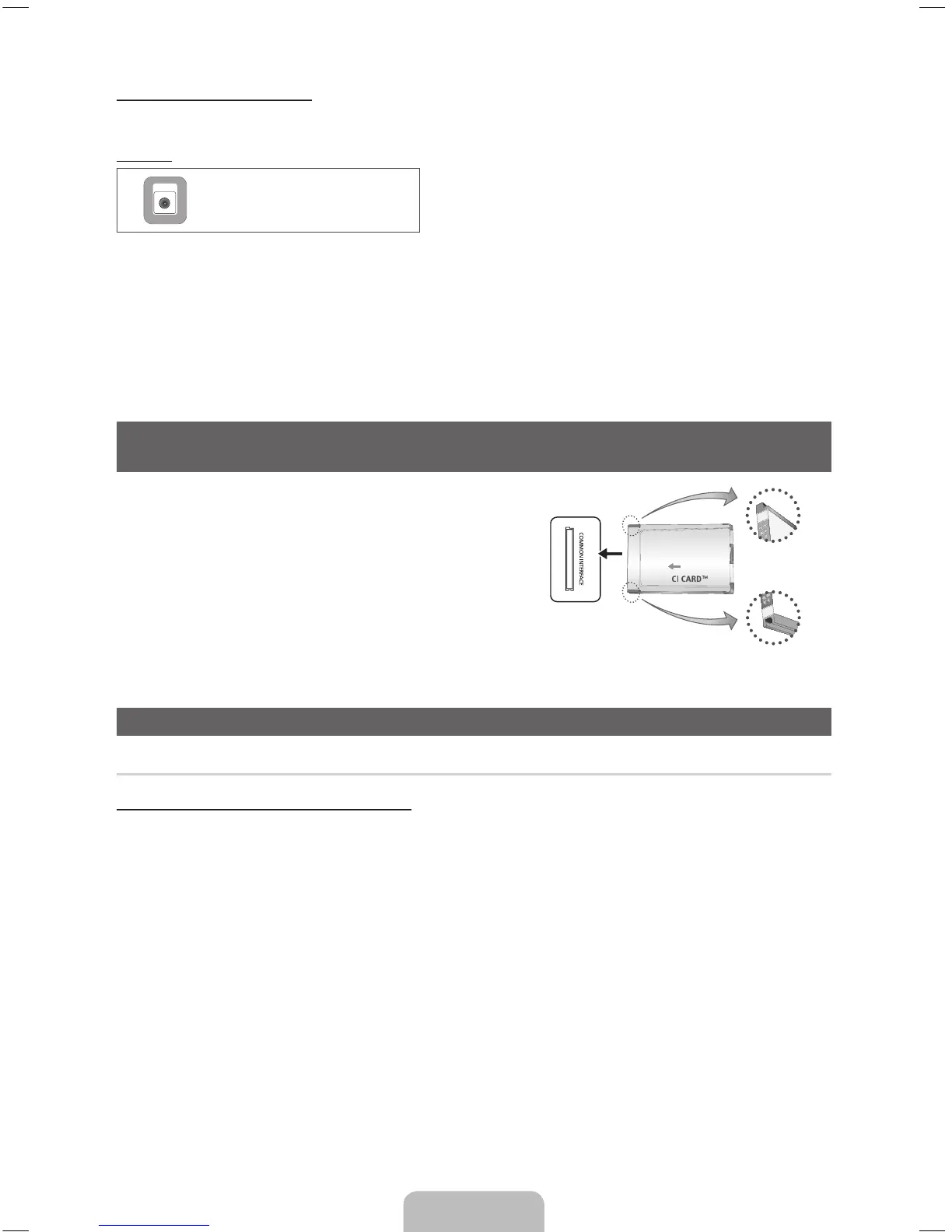

Connecting to a COMMON INTERFACE slot
(Your TV viewing Card Slot)
To watch paid channels, the “CI or CI+ CARD” must be inserted.
• If you do not insert the “CI or CI+ CARD”, some channels will display
the message “Scrambled Signal”.
• The pairing information containing a telephone number, the “CI or
CI+ CARD” ID the Host ID and other information will be displayed in
about 2~3 minutes. If an error message is displayed, please contact
your service provider.
• When the configuration of channel information has finished, the
message “Updating Completed” is displayed, indicating the channel
list is updated.
y The image may differ depending on the model.
Changing the Input Source
Source
TV / Ext. / HDMI1/DVI / HDMI2 / AV / Component
Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV.
✎ In the displaying Source list, connected inputs will be highlighted.
✎ PC(D-Sub) input is not supported. If you want to connect PC to the TV, use HDMI1/DVI input.
✎ Ext. always stays activated.
✎ Press the TOOLS button.
• Edit Name
You can set an external input sources name you want.
– When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.
– When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under
Edit Name.
– When connecting an AV devices to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI Devices
mode under Edit Name.
• Information
You can see detailed information about the connected external device.
Display Modes (HDMI/DVI Input)
Optimal resolution is 1366 X 768 @ 60 Hz. See specification page for full available resolution.
[UEH4000-XU]BN68-03951J.indb 7 2012-02-15 �� 10:25:28

Samsung UE32EH4000W Specifications

General

Response time	- ms
Display diagonal	32 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080i, 1080p, 720p
Motion interpolation technology	CMR (Clear Motion Rate) 50
3D	No
Annual energy consumption	51 kWh
Product color	Black
Panel mounting interface	200 x 200 mm
Tuner type	Analog & digital
Analog signal format system	PAL
Digital signal format system	DVB-C, DVB-T
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Audio formats supported	AAC, FLAC, M4A, MP3, OGG, WMA
Image formats supported	BMP, JPG
Video formats supported	3GP, ASF, AVI, DIVX, MKV, MP4, MTS, TP, TRP, TS, VOB, WMV
Number of OSD languages	29
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	35 W
Power consumption (PowerSave)	17 W
Package weight	7900 g
Cables included	AC

Weight and Dimensions

Depth (with stand)	191.7 mm
Height (with stand)	493.3 mm
Weight (with stand)	6300 g
Depth (without stand)	92.7 mm
Width (without stand)	738.8 mm
Height (without stand)	436.7 mm
Weight (without stand)	5700 g
