MECHANICAL DISASSEMBLY
CAUTION: This LCD TV uses several different kinds of screws. Using the correct screw is necessary to
prevent damage. Lead wires must be redressed to their previous locations after servicing.

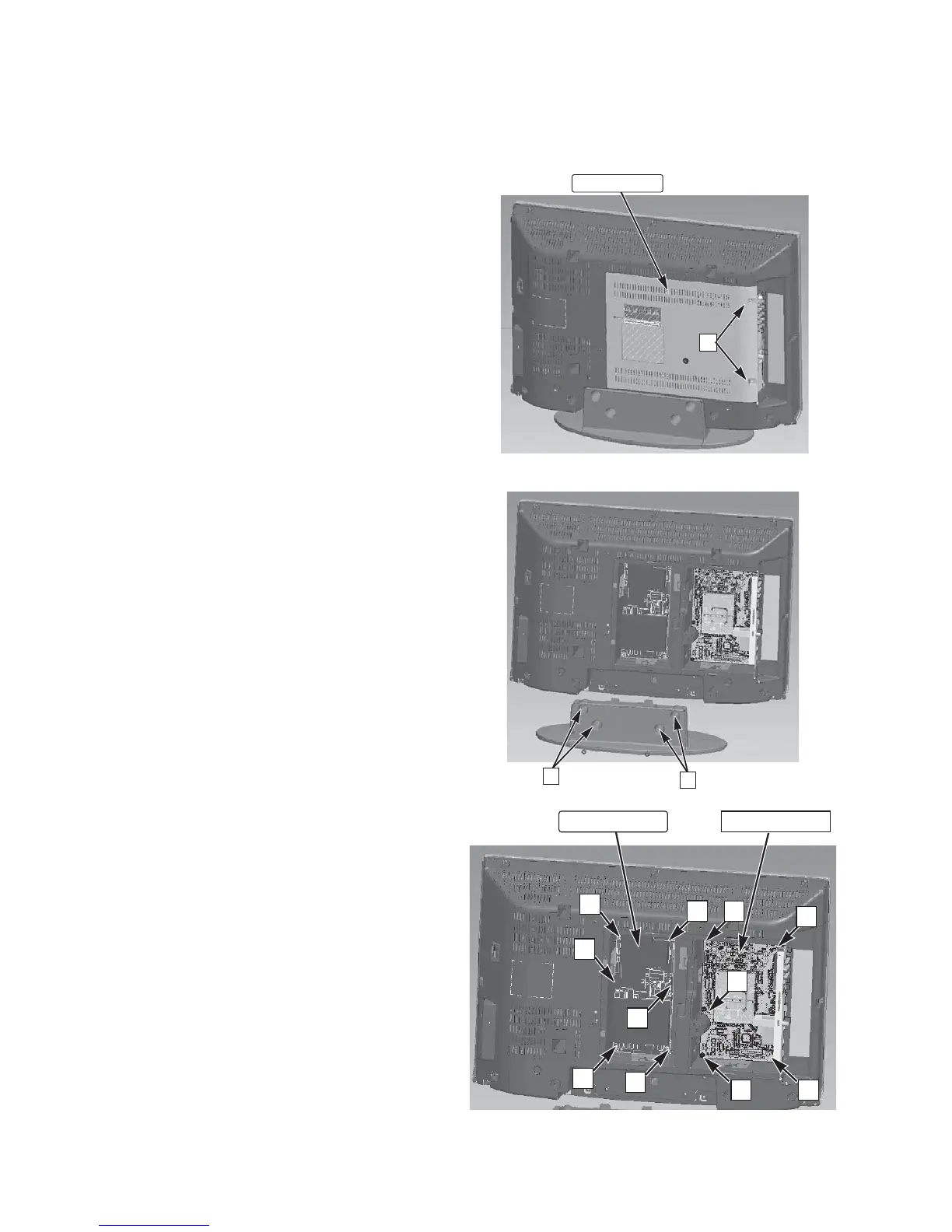

1. BACK LID REMOVAL
Remove 2 screws to take the back Lid off. (A: 3x6)
A
Back Lid
2. STAND REMOVAL
Position TV face down on a padded or cushioned surface
to protect the screen and finish.
Remove 4 screws (B: 6X16) to take the stand off.
3. MAIN BOARD REMOVAL
Remove 5 screws (C: 3X14) to take the main board off.
4. POWER UNIT REMOVAL
Remove 6 screws (C: 3X14) to take the power unit off.
B
B
Main BoardPower Unit
C
C
CC
C
C
C
C
C
C
C
