SPECIFICATIONS
General
Output power ......................... 4 W x 2 (at 4 ohms, 10% distortion)
Inputs ..................................... VIDEO IN : 400 mV / 50k ohms
Outputs .................................. SPEAKERS : 4 ohms
PHONES : 8 - 32 ohms
Power requirements............... AC 230 V, 50 Hz
Power consumption ............... 19 W
Dimensions (W x H x D) ........ Approx. 150 x 240 x 212 mm
Weight.................................... Approx. 2.3 kg
Speaker system
Type ....................................... Full range bass reflex
Drivers ................................... 10 cm cone type
Maximum
power-handling capacity ..... 8 Watts (peak)
Nominal impedance ............... 4 ohms
Dimensions (W x H x D) ........ Approx. 150 x 230 x 190 mm
Weight.................................... Approx. 1.2 kg (per speaker)
Tuner
Reception frequency .............. FM : 87.5 - 108.0 MHz
MW : 522 - 1611 kHz
LW : 144 - 288 kHz (UK only)
CD player
Channels................................ 2-channel stereo
Sampling frequency ............... 44.1 kHz
Pick-up ................................... Optical 3-beam
semiconductor laser
Wow and Flutter..................... Below measurable limits
Wave length ........................... 790 nm
Laser output ........................... 0.6mW(Continuous wave max.)
Cassette deck section
Track system ......................... 4-track, 2-channel stereo
Frequency response .............. 80 Hz - 15 kHz
Signal to noise ratio ............... 40 dB
Wow and Flutter..................... 0.15% (WRMS)
Fast forward / Rewind time .... Approx. 110 sec. (C-60)

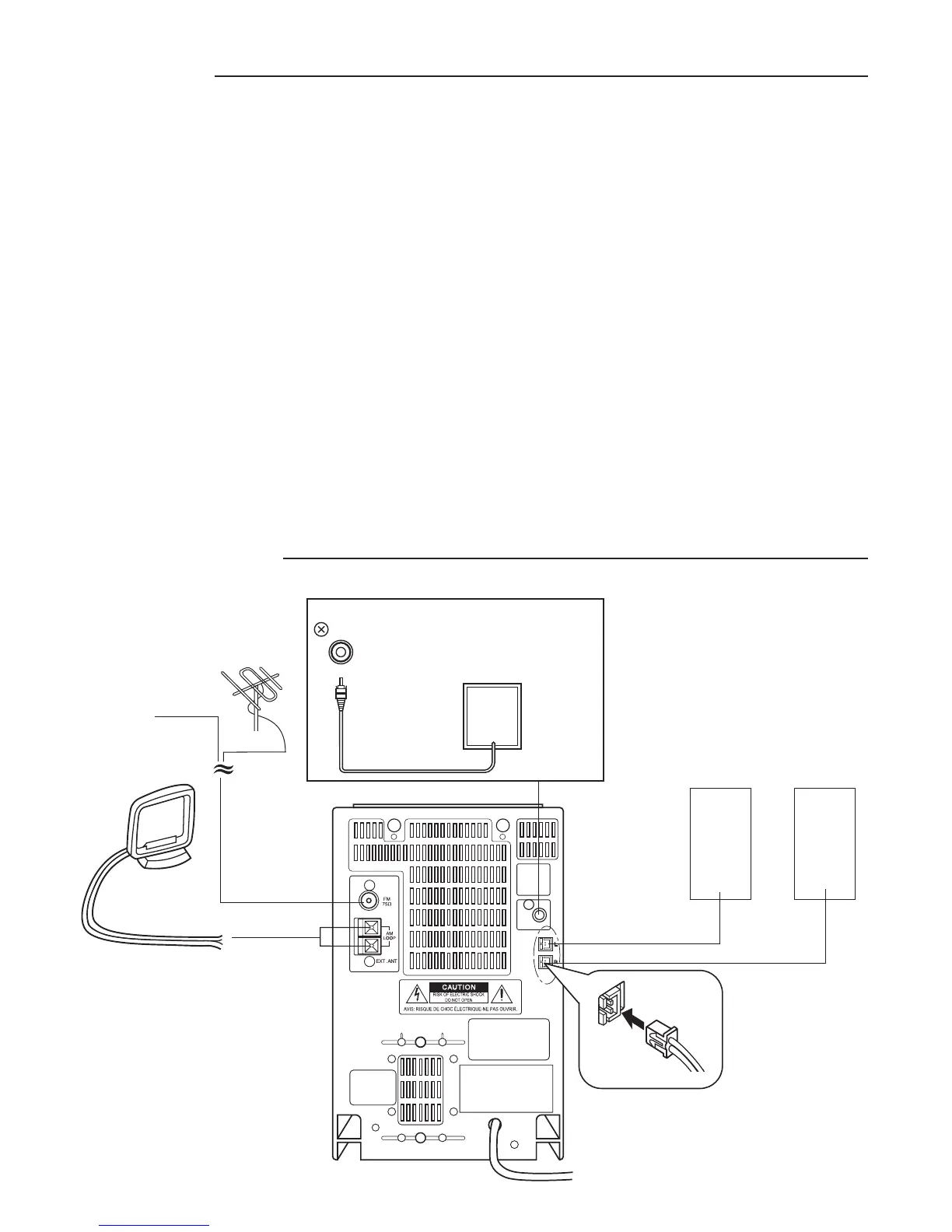

SYSTEM CONNECTIONS
SPEAKERS
(4
Ω
MIN.)
SUB WOOFER
SUB WOOFER
AM loop aerial
L ch speaker
R ch speaker
To an AC outlet
Aerial wire
External aerial
Amplifies subwoofer (not supplied)
(XE)
To Next Page
