SET-TOP BOX
(HD Satellite, HD Cable, etc.)
1
Connect a Component Cable to the VIDEO2 Green,
Blue, and Red video jacks.
2
Connect an Audio Cable to the matching VIDEO2
White and Red audio jacks.
3
Press INPUT to select Video 2 to view the program.
Note: VIDEO2 and VIDEO3 jacks have identical functions.
Compatible video devices can be connected to either
or both set of jacks.
VIDEO2 & 3 COMPONENT JACKS:
Connection Option 1
GREEN, BLUE,
RED JACKS

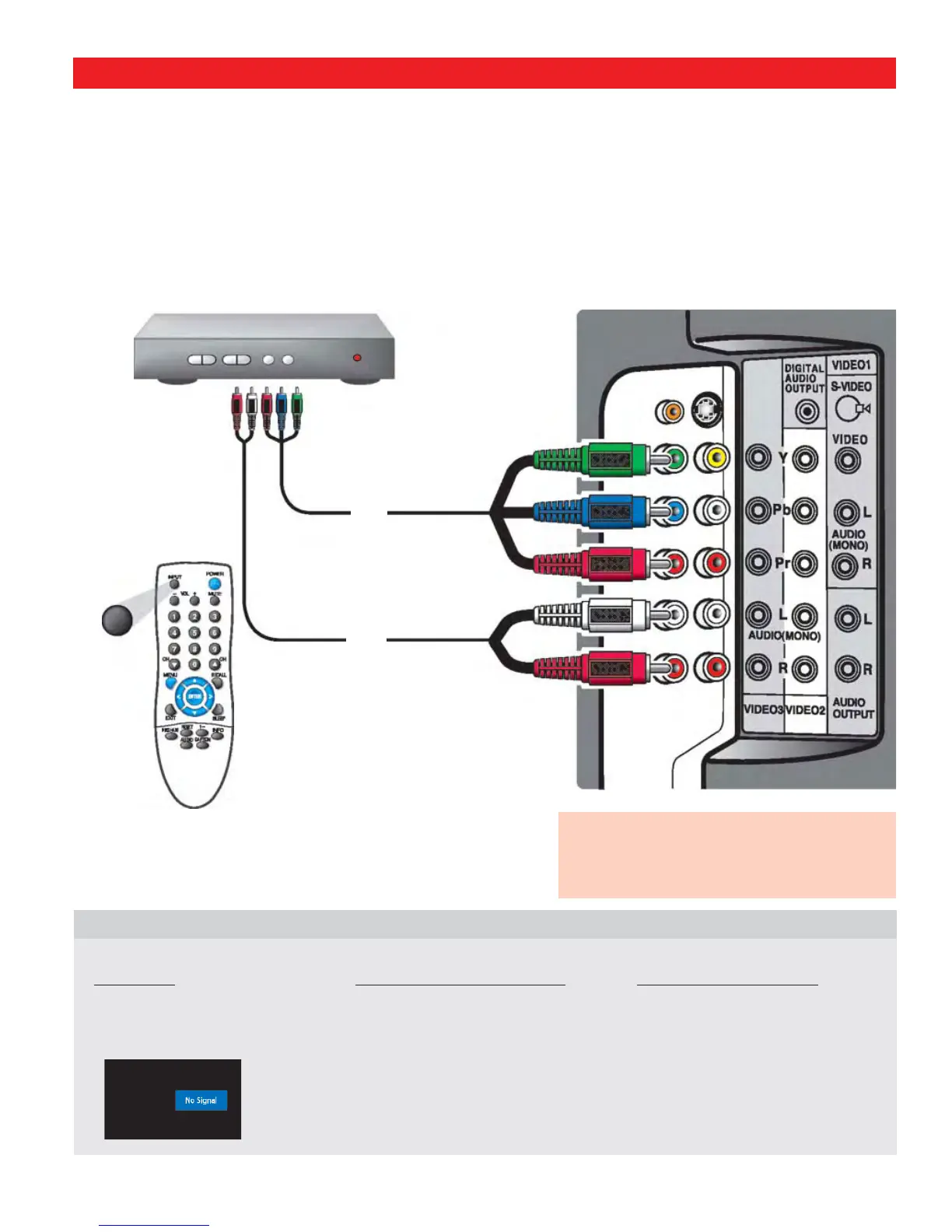

CONNECTING A SET-TOP (STB)
DTV VIDEO2
AUDIO L/R
JACKS
OPERATING TIP:
Refer to the owner’s manuals and user’s guides
that came with your external equipment for
connection options.
HELP HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jack.
Check Audio/Video connections.
Check external equipment
connections.
Check external equipment
settings.
Press the INPUT key.
Switch on external equipment.
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
