75 Ohm Coaxial Cable with F-Connector—
Used to connect a signal to your digital or
Analog RF Antenna In terminal.
Coaxial Digital Audio—Use this cable to
connect the DTV‘s digital audio output to a
multichannel audio receiver.
S-Video Cable—This cable provides separate
luminance and color signals for higher resolu-
tion and better picture quality. Use this cable
instead of the regular composite video cable
(RCA type), when available.
NOTE: None of these cables are supplied with this
DTV.
Audio Cables—Provides analog left/right
audio for your external equipment
connections.
Component: Y, Pb, Pr—Use these cables to
connect your component equipment. This
connection provides the best picture, but does
not include sound. (Cable colors: Y = green, Pb
= blue, and Pr = red.)
Composite Audio/Video (RCA type)—Use
these cables for standard analog audio/video
connections. Normally cables are color coded:
Yellow for Video, White for (L) Audio, and Red
for (R) Audio.

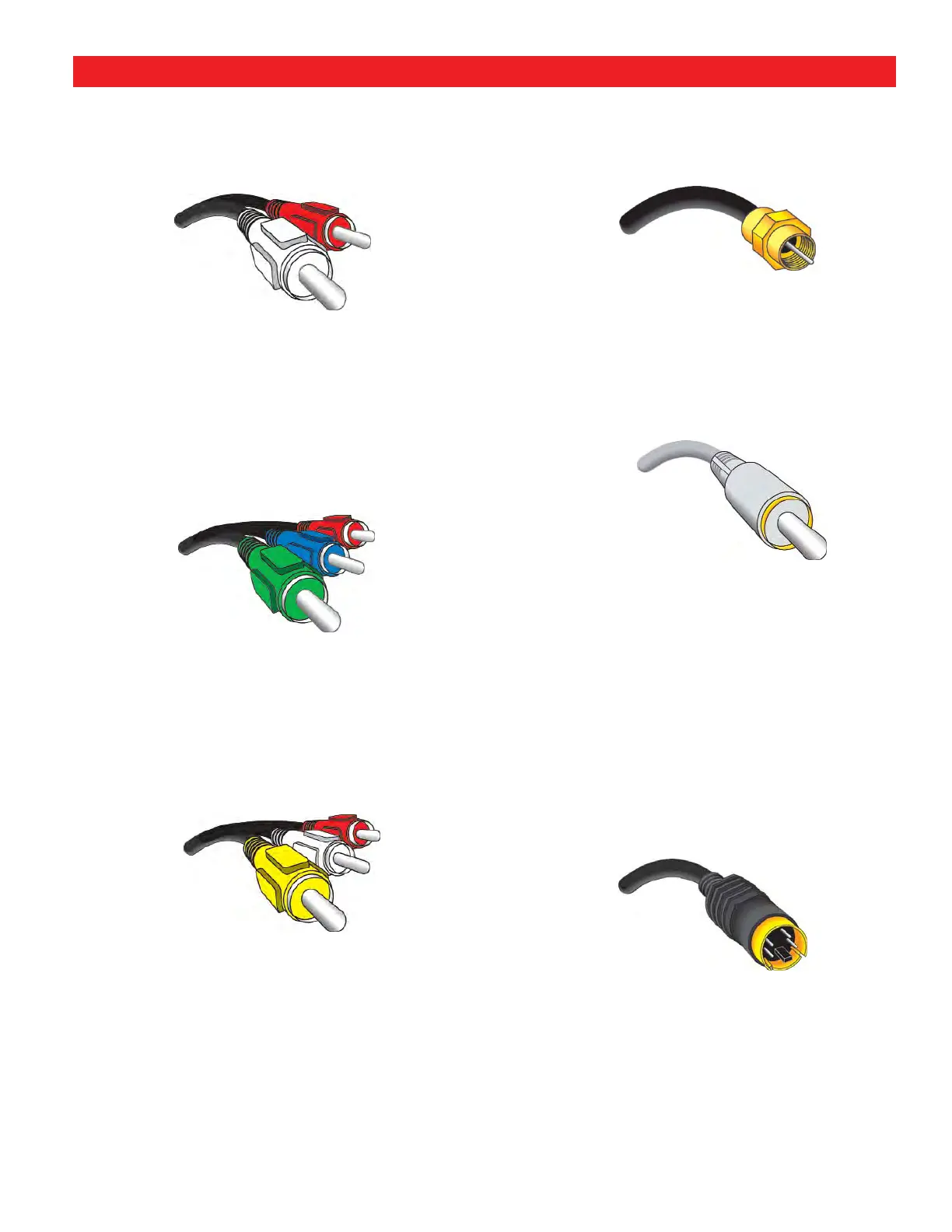

GLOSSARY OF CABLES
