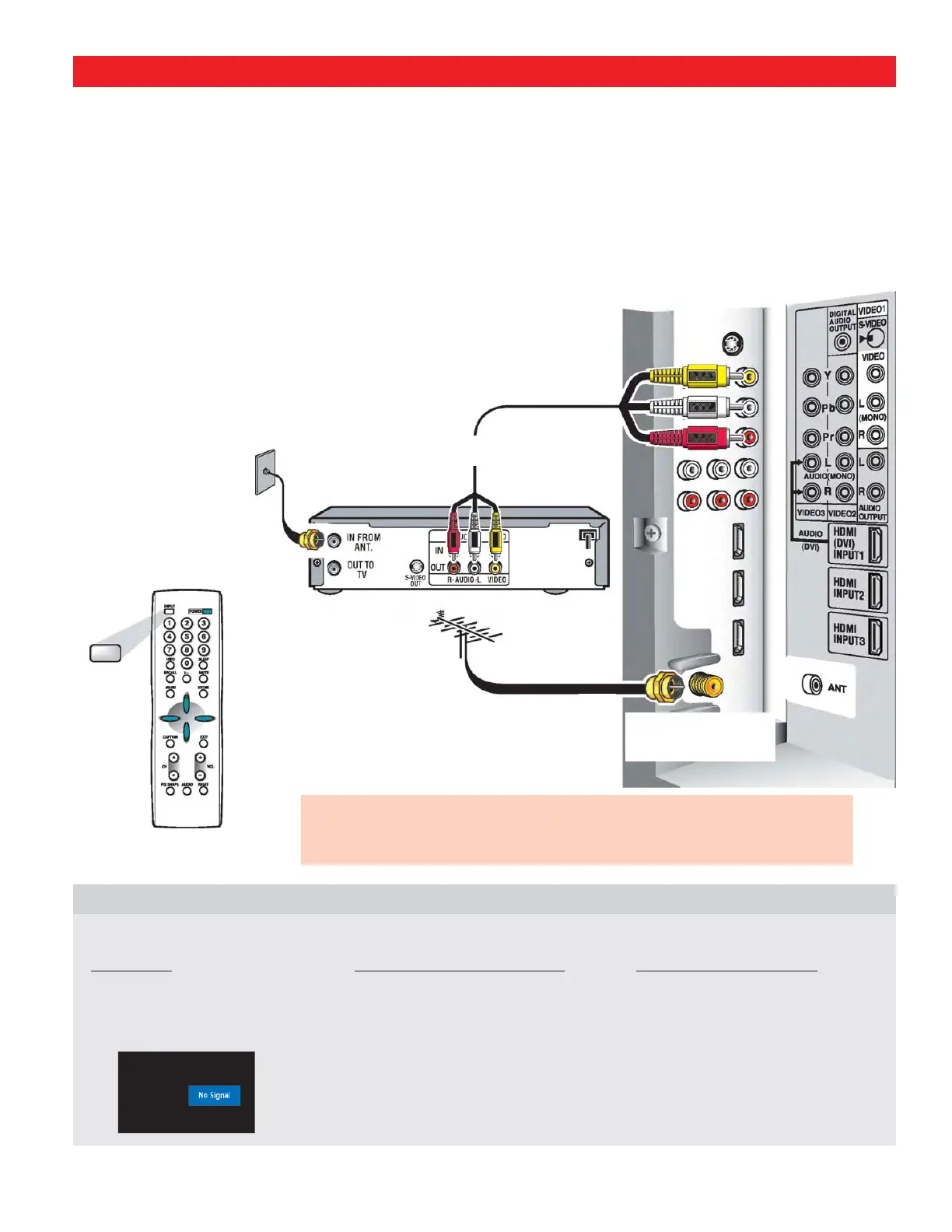

VIDEO1 COMPOSITE (ANALOG) JACKS:
Connection Option 2
VCR
1
Connect Analog Cable system to the VCR
“Antenna In.”
2
Connect the VCR AV out jacks to VIDEO1 Yellow,
White, and Red jacks.
3
Connect an Antenna to the DTV ANT terminal.
4
Press INPUT to select Video 1 to watch Analog
Cable channels OR to TV channels to watch
Antenna channels.
5
Select channels with the VCR’s remote control.
Select Antenna channels with the DTV remote
control.
IMPORTANT FACT:
Composite jacks offer only 480i (SDTV ) resolution.
YELLOW,
WHITE, & RED,
JACKS
“No Signal” will appear randomly
on the screen when no signal is
detected at the video jack.
Check Audio/ Video connections.
Check external equipment
connections.
Check external equipment setting.
Press the INPUT key.
Switch on external equipment.
Set external equipment output
connections to match input
connections.
HELP HINTS (PROBLEMS/SOLUTIONS)
SYMPTOM CHECK THESE CONDITIONS TRY THESE SOLUTIONS
If you continue to experience problems, please call toll free
1-800-877-5032. We can Help!
DTV VIDEO1
CABLE SYSTEM
(Service provider)
OPERATING TIP:
Refer to the owner’s manuals and user’s guides that came with your external
equipment for connection options.
