18

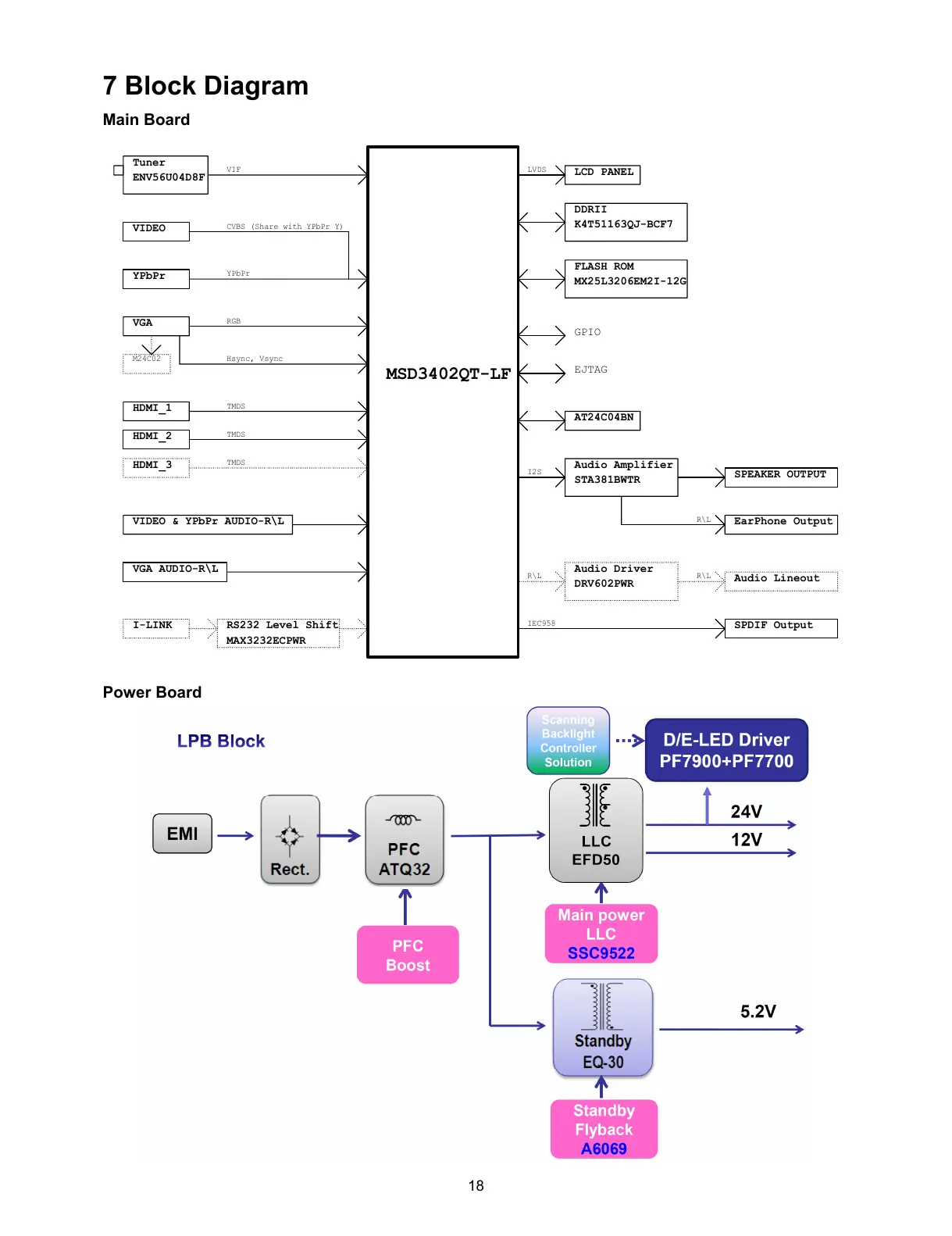

7 Block Diagram
Main Board
Power Board
LCD PANEL
LVDS
FLASH ROM
MX25L3206EM2I-12G
DDRII
K4T51163QJ-BCF7
EarPhone Output
AT24C04BN
R\L
Audio Amplifier
STA381BWTR
I2S
SPEAKER OUTPUT
EJTAG
GPIO
SPDIF Output
R\L
Audio Lineout
R\L
IEC958
Audio Driver
DRV602PWR
CVBS (Share with YPbPr Y)
VIDEO
YPbPr
YPbPr
Hsync, Vsync
HDMI_1
HDMI_3
TMDS
TMDS
HDMI_2
TMDS
VGA
RGB
RS232 Level Shift
MAX3232ECPWR
I-LINK
VIDEO & YPbPr AUDIO-R\L
VGA AUDIO-R\L
M24C02
Tuner
ENV56U04D8F
MSD3402QT-LF
VIF
