34

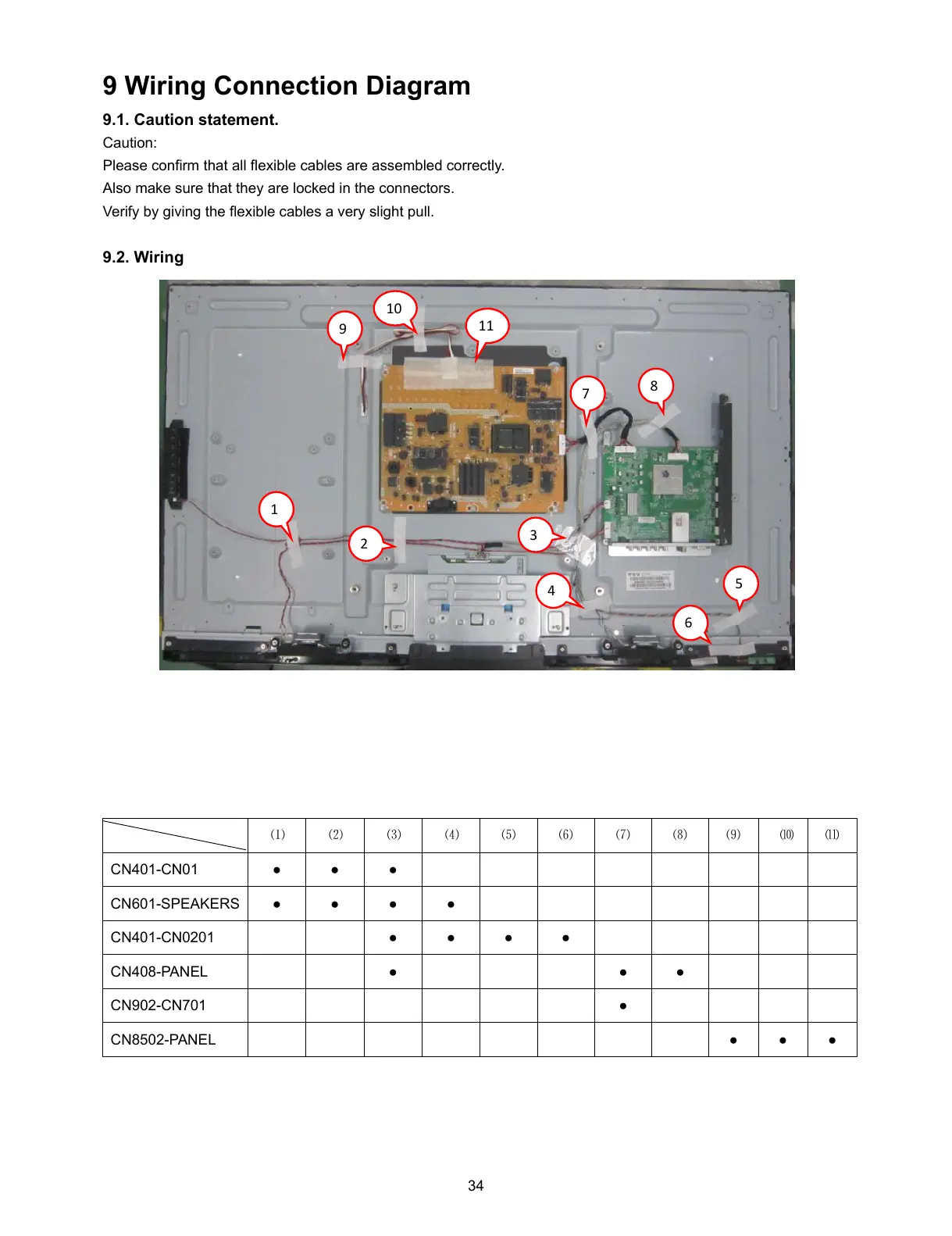

9 Wiring Connection Diagram

9.1. Caution statement.

Caution:

Please confirm that all flexible cables are assembled correctly.

Also make sure that they are locked in the connectors.

Verify by giving the flexible cables a very slight pull.

9.2. Wiring

⑴ ⑵ ⑶ ⑷ ⑸ ⑹ ⑺ ⑻ ⑼ ⑽ ⑾

CN401-CN01 ● ● ●

CN601-SPEAKERS ● ● ● ●

CN401-CN0201 ● ● ● ●

CN408-PANEL ● ● ●

CN902-CN701 ●

CN8502-PANEL ● ● ●

1

2

5

6

8
