No included cables are used with these connections:
●
Please purchase the necessary cables at your local store.
Before you connect the AC power cord:
Be sure
other devices are connected properly before plugging in the
AC power cord.

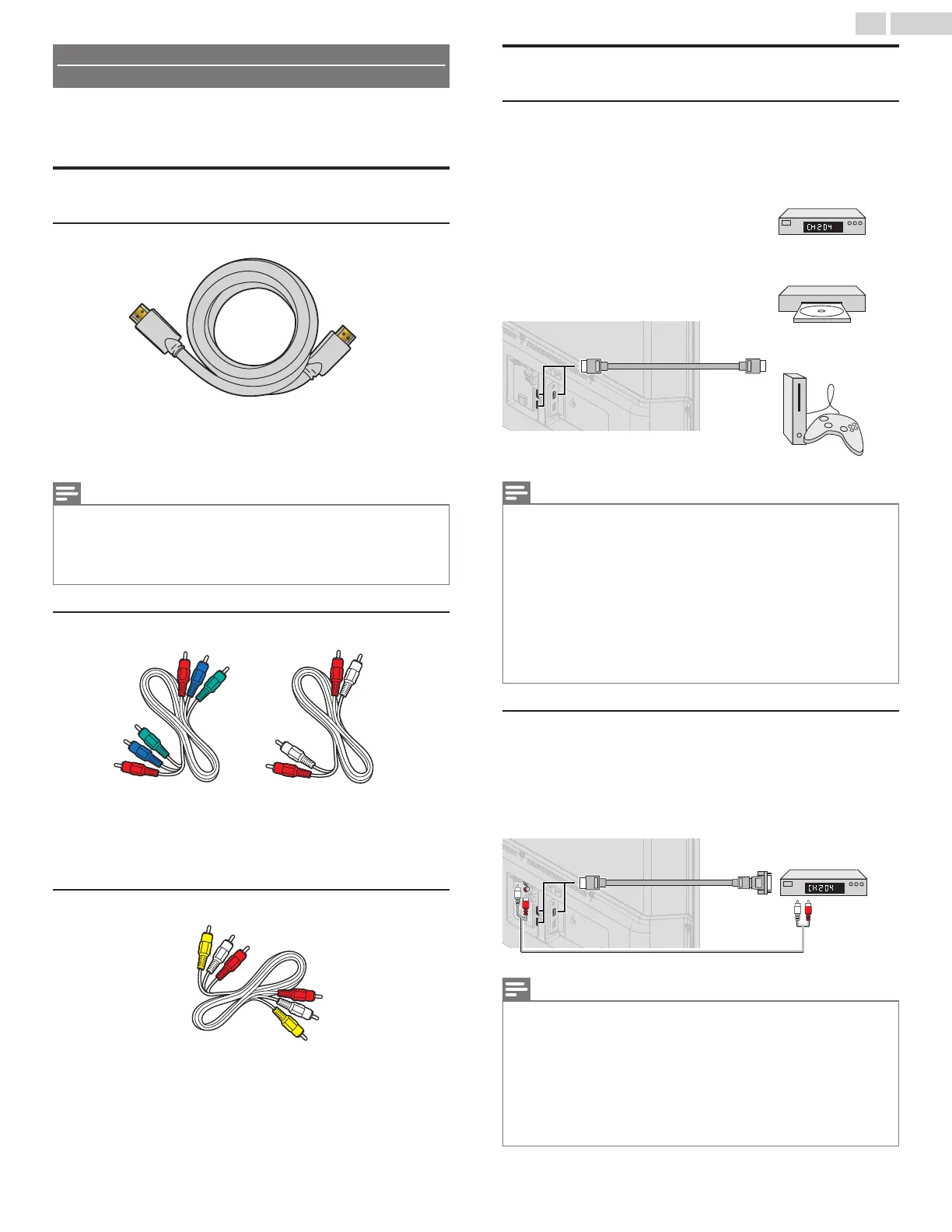

Selecting your connection quality
HDMI - Highest quality
Supports high-definition digital signals and gives highest picture and
sound quality. Video and audio signals are combined in one cable.
You must
use HDMI for full high-definition video and to enable HDMI-
CEC.
Note(s)
●
SANYO HDMI supports HDCP (High-bandwidth Digital Contents Protection).
HDCP is a form of digital rights management that protects high-definition
content in Blu-ray Disc™ or DVDs.
●
The HDMI-ARC connector on the TV features HDMI-ARC functionality. This
allows output of TV audio to an HDMI-ARC-compliant device.
Component (Y Pb Pr) - High quality
Supports high-definition analog signals but gives lower picture quality
than HDMI.
Component (Y/Pb/Pr) video cables combine red / green /
blue video cables with red / white audio (L/R) cables. Match the cable
colors when you connect to the TV.
Composite - Basic quality
For analog connections. Composite video / Audio analog cable usually
combine
a
yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) jack on the
component video input jacks.
Connecting your devices
HDMI digital connection
HDMI connection offers the highest picture quality.
HDMI (High-Definition Multimedia Interface) transports high-
definition digital
video and multi-channel digital audio through a single
cable.
HDMI cable
Set-top box
Blu-ray Disc™ /
DVD player
HD game console
or
or
IN
OUT
Note(s)
●
If there
are issues with picture/color and/or sound when connecting an external
device using the HDMI port, please try switching the HDMI mode. (Refer to
HDMI mode L p. 35)
●
Some HDMI cables and devices may not be compatible with the TV due to
different HDMI specifications.
●
Use an HDMI cable with the HDMI logo (a certified HDMI cable). High speed
HDMI cable is recommended for the better compatibility.
●
The unit accepts 480i / 480p / 720p / 1080i, 1080p, 2160p 24/30/60Hz of video
signals, 32kHz / 44.1kHz and 48kHz of audio signals.
●
This unit accepts LPCM, AC-3, DD+ audio signal.
●
This unit accepts only signals in compliance with EIA861.
HDMI-DVI connection
This unit can be connected to a device that has a DVI terminal.
Use an
HDMI-DVI conversion cable for this connection and it requires
audio cable for analog audio signal as well.
Audio (L/R) cables
HDMI-DVI
conversion cable
Cable receiver or
set-top box with
the DVI output
jack
IN
IN
OUT
OUT
Note(s)
●
Some HDMI cables and devices may not be compatible with the TV due to
different HDMI specifications.
●
Use an HDMI cable with the HDMI logo (a certified HDMI cable). High speed
HDMI cable is recommended for the better compatibility.
●
The unit accepts 480i, 480p, 720p, 1080i, 1080p and 2160p video signals.
●
HDMI-DVI connection requires separate audio connections as well and the
audio signals are output as analog (L/R) audio.
●
DVI does not display 480i image which is not in compliance with EIA/
CEA-861/861B.
16 .English
Continued on next page.
