Sanyo FXD-MP900 User Manual

-33-

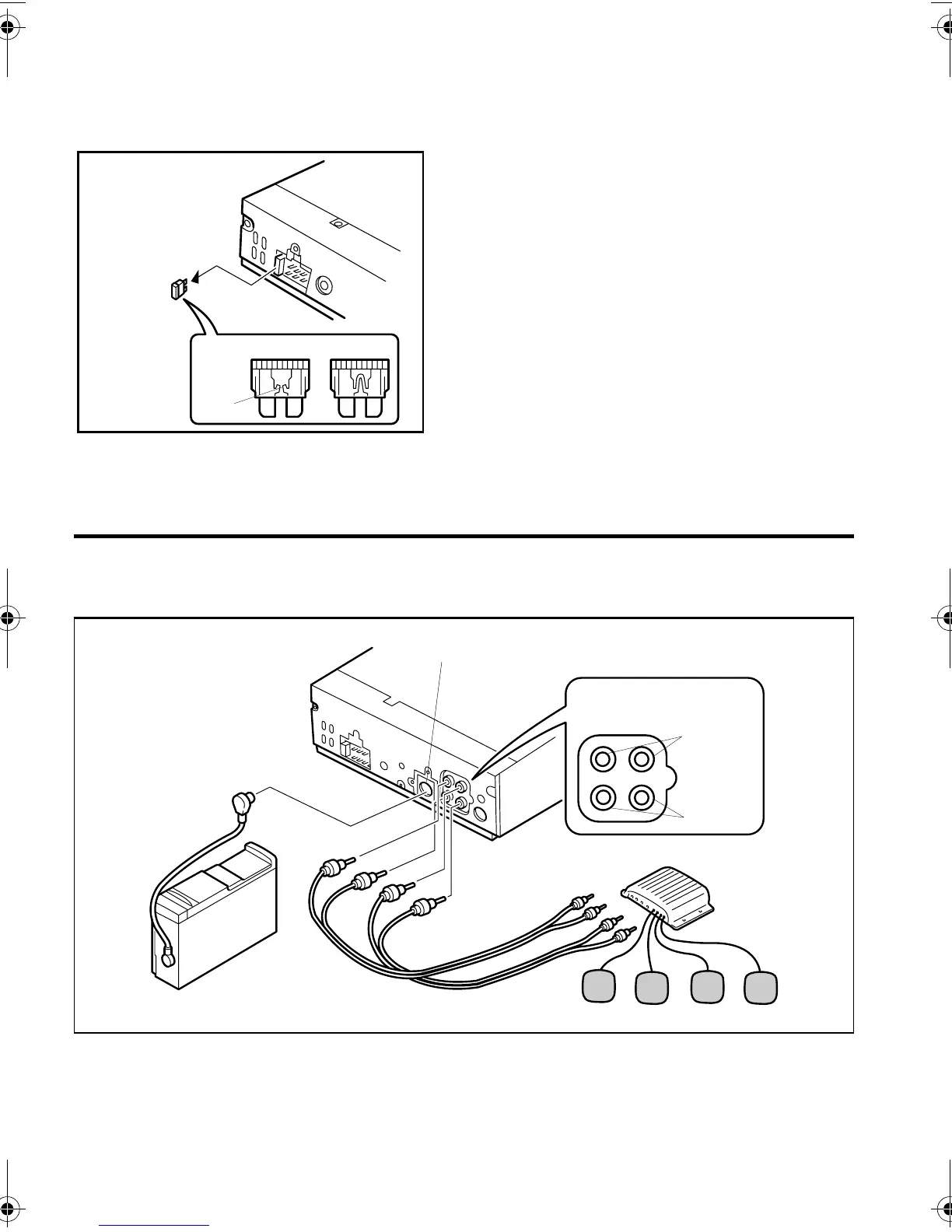

LINE OUT CONNECTIONS
• The unit has a built-in CD changer controller and line output terminals. You can use a compatible Sanyo
CD changer and a separate amplifier to upgrade your system.
CD Changer DIN Socket
• Connect the 8-pin DIN cable, which is supplied with the Sanyo CD changer, to the DIN socket on the back
of the unit.
RCA Line-out Jacks (For Speakers)
• Connect a patch cable (not supplied) from the White (left channel) and Red (right channel) RCA line output
jacks to the line input terminals of the external amplifier.
RCA Line-out Jacks
OUTPUT
FRONT REAR
White
L (eft)
R (ight)
Red
External
Amplifier
Rear Speaker
Front Speaker
CD Changer
DIN Socket
CD Changer
Burnt
NG OK
Fuse 15A
• When using a two-speaker installation, the Green, Green/Black, Violet, Violet/Black wires,
which are used for a four-speaker installation, are not used. The ends of these wires must
be covered with electrical tape to prevent them from shorting to the unit or the vehicle chassis.
• When using a two-speaker installation, set the
FADER control to the center position.
• When fuse replacement is necessary remove
the blown fuse by using pliers.
Then install the new 15 amp. fuse.
