Horizontal distance (ft.)
Axis air velocity (ft./sec.)
Vertical distance (ft.)
Room air temp.
:
80
°
F (26.7
°
C)
Fan speed
:
High
Cooling
: Flap angle 0 ,
: Axis air velocity 0
: Flap angle 30 ,
: Axis air velocity 30

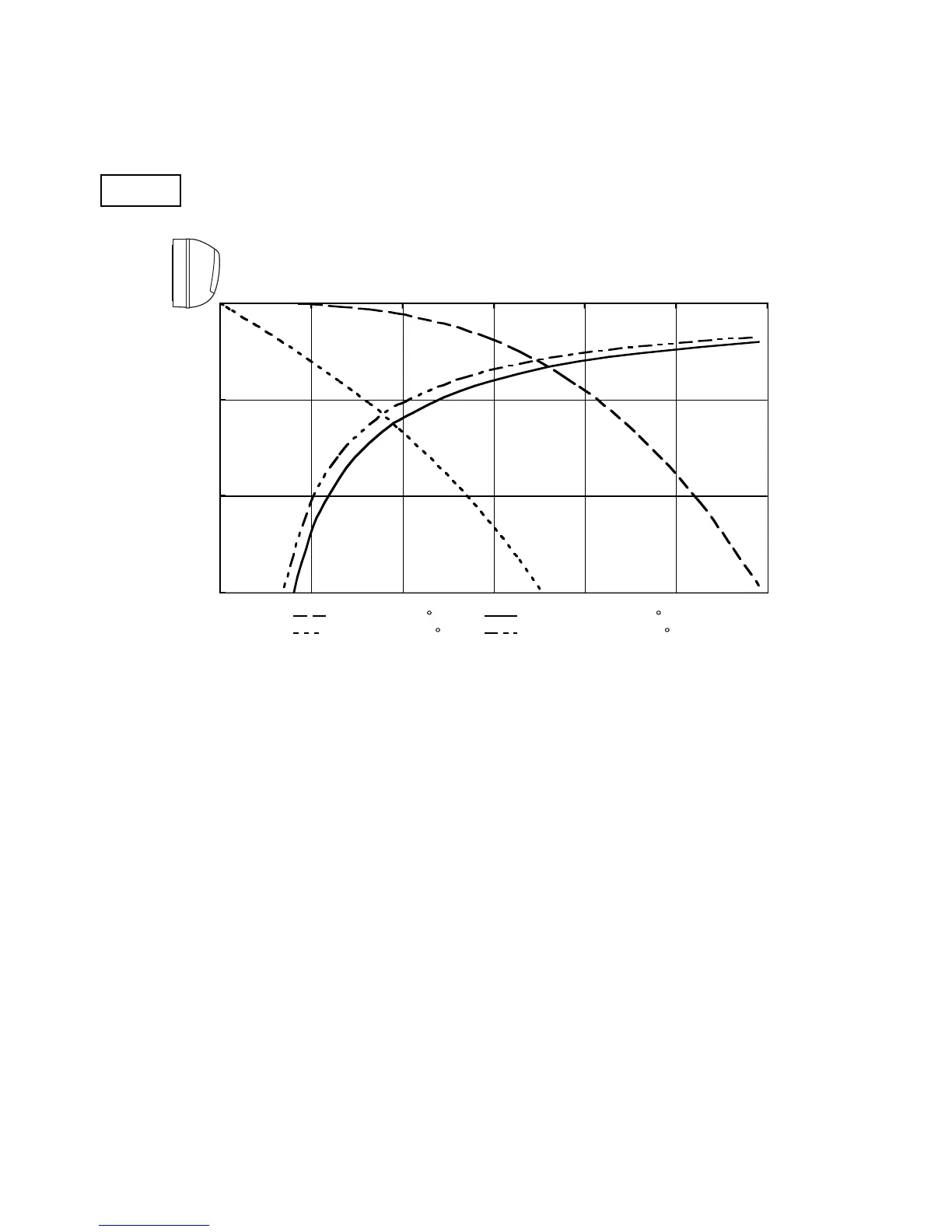

5-2.
Air
Thr
ow Distance Charts
Indoor Unit
KS1872
29
0
5
10
15
0
5
1
0
15
20
25
30
28
30
Table of Contents
Table of Contents
3
1 Operating Range
5
2 Specifications
6
Unit Specifications
6
Major Component Specifications
14
Outdoor Unit
16
Other Component Specifications
20
3 Dimensional Data
21
4 Refrigerant Flow Diagram
24
5 Performance Data
25
Temperature Charts
25
Air Throw Distance Charts
29
6 Electrical Data
31
Electrical Characteristics
31
Electric Wiring Diagrams
33
7 Installation Instructions
37
Installation Site Selection
37
Recommended Wire Length and Diameter
39
Remote Control Unit Installation Position
40
How to Test Run the Air Conditioner
41
Remove the Grille to Install the Indoor Unit
42
8 Maintenance
43
Address Setting of the Remote Control Unit
43
Disconnecting and Connecting Positive Connector for Outdoor Unit
44
9 Functions
45
Operation Functions
45
Night Setback
46
Protective Functions
47
10 Troubleshooting
48
Precautions before Performing Inspection or Repair
48
Method of Self-Diagnostics
48
Indoor Unit
49
Checking the Indoor and Outdoor Units
51
Trouble Diagnosis of Fan Motor
52
Outdoor Fan Motor
53
Noise Malfunction and Electromagnetic Interference
54
11 Checking Electrical Components
55
Measurement of Insulation Resistance
55
Checking Continuity of Fuse on PCB Ass'y
56
12 Refrigerant R410A: Special Precautions When Servicing Unit
57
Characteristics of New Refrigerant R410A
57
Checklist before Servicing
58
Tools Specifically for R410A
59
Tubing Installation Procedures
59
In Case of Compressor Malfunction
60
In Case Refrigerant Is Leaking
62
Charging Additional Refrigerant
63
Retro-Fitting Existing Systems
63
Appendix Instruction Manual
64
Table of Contents
66
Electrical Requirements
67
Installation Location
67
Safety Instructions
67
Names of Parts
68
Unit Display and Operation Button
69
Remote Control Unit (Display)
70
Remote Control Unit
71
Using the Remote Control Unit
73
Operation with the Remote Control Unit
75
Operation
75
Adjusting the Fan Speed
76
Fan Only
76
Night Setback Mode
77
QUIET Mode
78
HIGH POWER Mode
78
ION Mode
78
Special Remarks
79
Setting the Timer
80
Tips for Energy Saving
82
Using the 1-Hour off Timer
82
Adjusting the Airflow Direction
83
Care and Cleaning
84
Operation Without the Remote Control Unit
84
Operating Range
87
Troubleshooting
87
