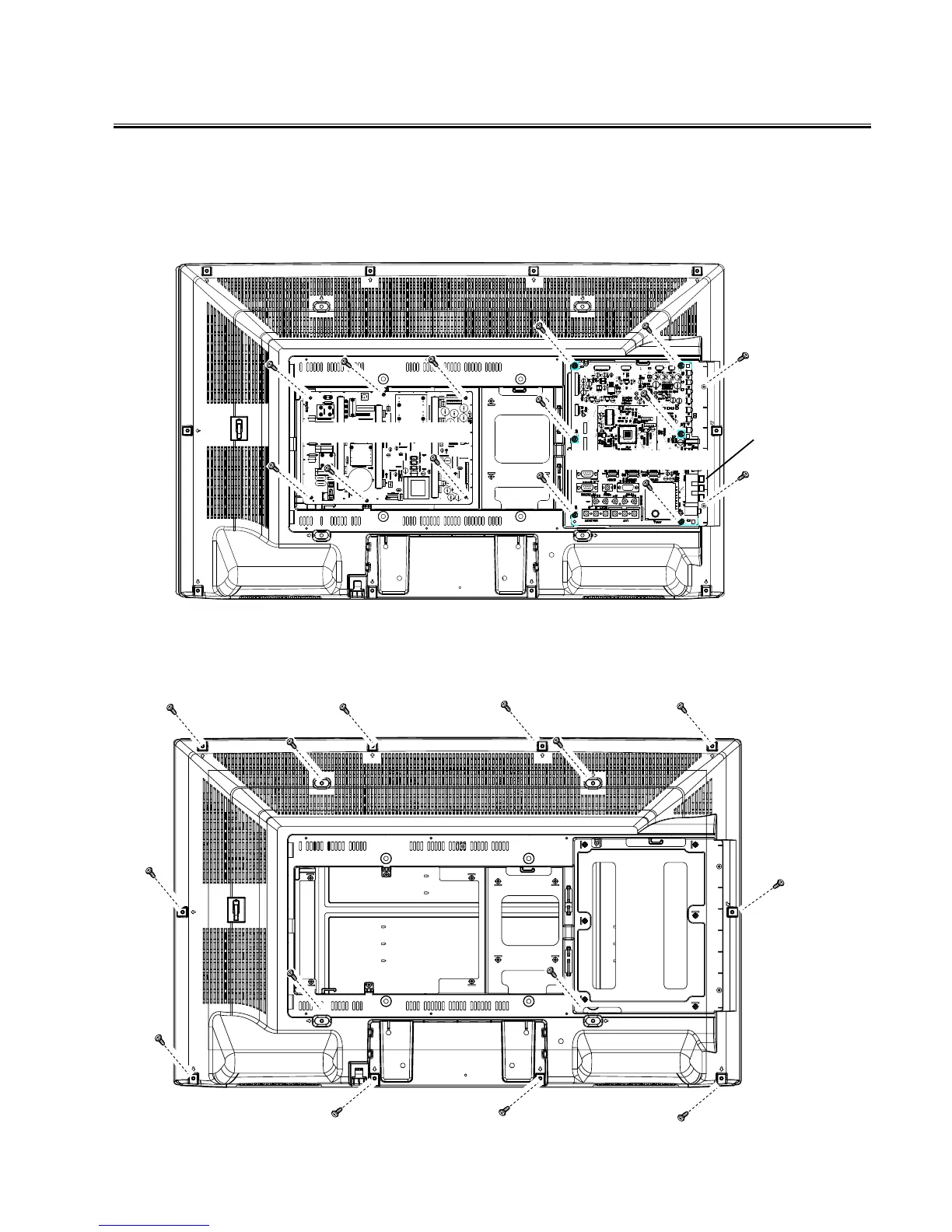

3.
ASSY
, PWB, POWER Board ,
ASSY
, PWB, MAIN Board and
TERMINAL
BASE Removal
1.
Remove 6 screws and take
ASSY
, PWB, POWER
off.
2.
Remove 8 screws and take
ASSY
, PWB, MAIN and TERMINAL BASE
off .
-23-
0HFKDQLFDO
'LVDVVHPEO\
ASSY
, PWB, POWER
ASSY
, PWB, MAIN
4. CABINET BACK Removal
1.
Remove 14 screws and take
CABINET BACK
off.
TERMINAL BASE
22
24
Table of Contents
Table of Contents
1
Safety Notice
2
Safety Precautions
2
Product Safety Notice
2
Specifications
3
Chassis Block Diagram
4
Main Signal Processing Circuit
4
Power Supply IC
5
IC Block Diagrams
6
How to Enter the Service Menu
14
How to Select the Service Item and Adjust Data
14
To Exit Service Mode
14
On-Screen Service Menu System
14
Service Adjustment Data Table
15
White and Black Balance Adjustment
20
Setting the Initial Data
20
Service Adjustments
20
Mechanical Disassembly
21
Stand Removal
22
LID BACK Removal
22
CABINET BACK Removal
23
Speaker Removal
24
DEC IND RC Board Removal
24
Cabinet Parts List
25
Chassis Electrical Parts List
27
Main Board (Part Side)
45
Printed Wiring Board
45
Main Board (Solder Side)
46
Power Board (Part Side)
47
Power Board (Solder Side)
48
