Sanyo M7700L User Manual

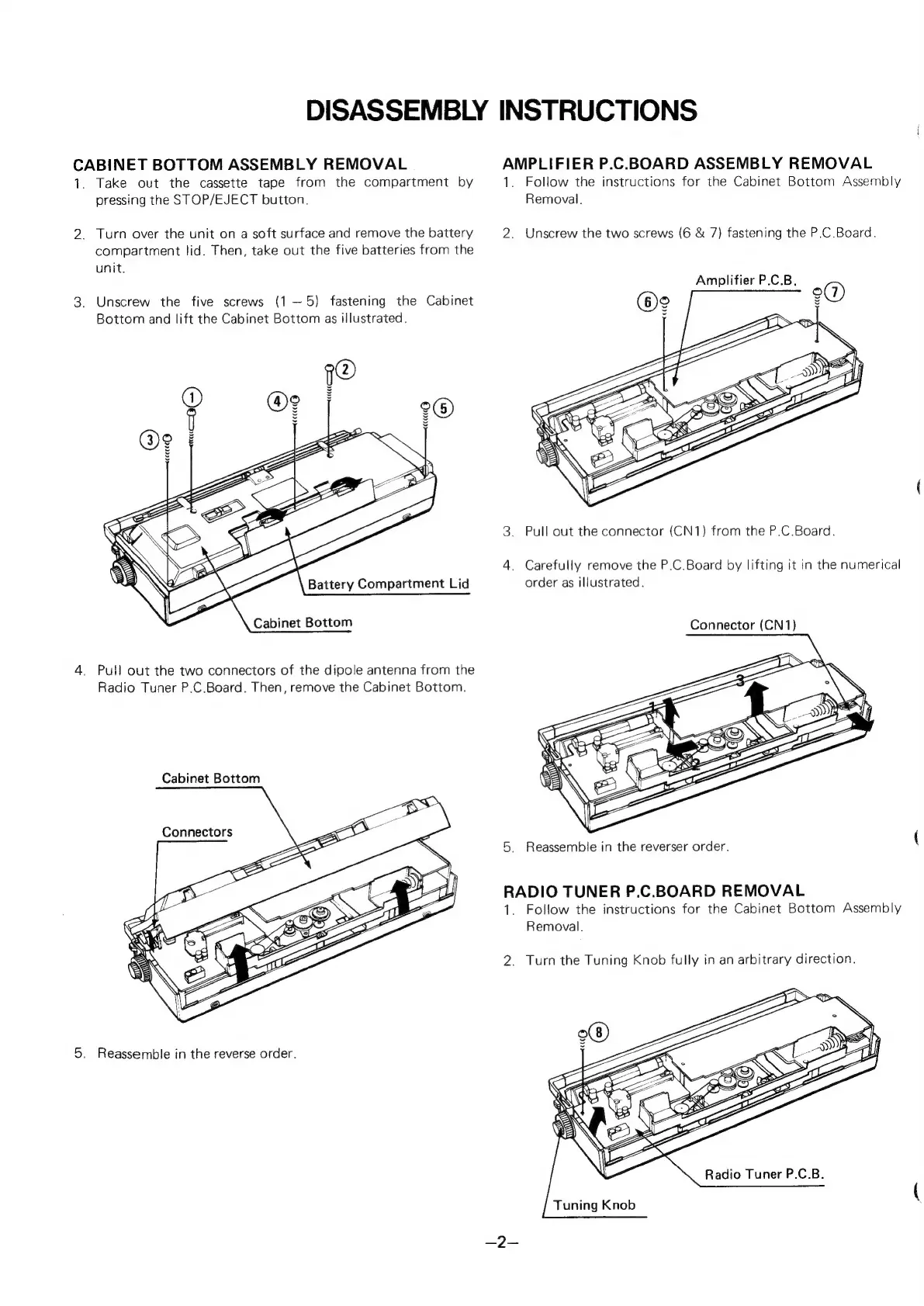

DISASSEMBLY INSTRUCTIONS
CABINET BOTTOM ASSEMBLY REMOVAL AMPLIFIER P.C.BOARD ASSEMBLY REMOVAL
1. Take out the cassette tape from the compartment by 1. Follow the instructions for the Cabinet Bottom Assembly
pressing the STOP/EJECT button. Removal.
2. Turn over the unit on a soft surface and remove the battery 2. Unscrew the two screws (6 & 7) fastening the P.C Board.
compartment lid. Then, take out the five batteries from the
unit.
3. Unscrew the five screws (1 —5) fastening the Cabinet
Bottom and lift the Cabinet Bottom as illustrated.
3. Pull out the connector (CN1) from the P.C.Board.
4. Carefully remove the P.C. Board by lifting it in the numerical
order as illustrated.
Cabinet Bottom Connector (CN1)
4. Pull out the two connectors of the dipole antenna from the
Radio Tuner P.C.Board. Then, remove the Cabinet Bottom.
Cabinet Bottom
5. Reassembie in the reverser order.
RADIO TUNER P.C.BOARD REMOVAL
1. Follow the instructions for the Cabinet Bottom Assembly
Removal.
2. Turn the Tuning Knob fully in an arbitrary direction.
5. Reassemble in the reverse order.

Sanyo M7700L Specifications

General

Brand	Sanyo
Model	M7700L
Category	Cassette Player
Language	English
