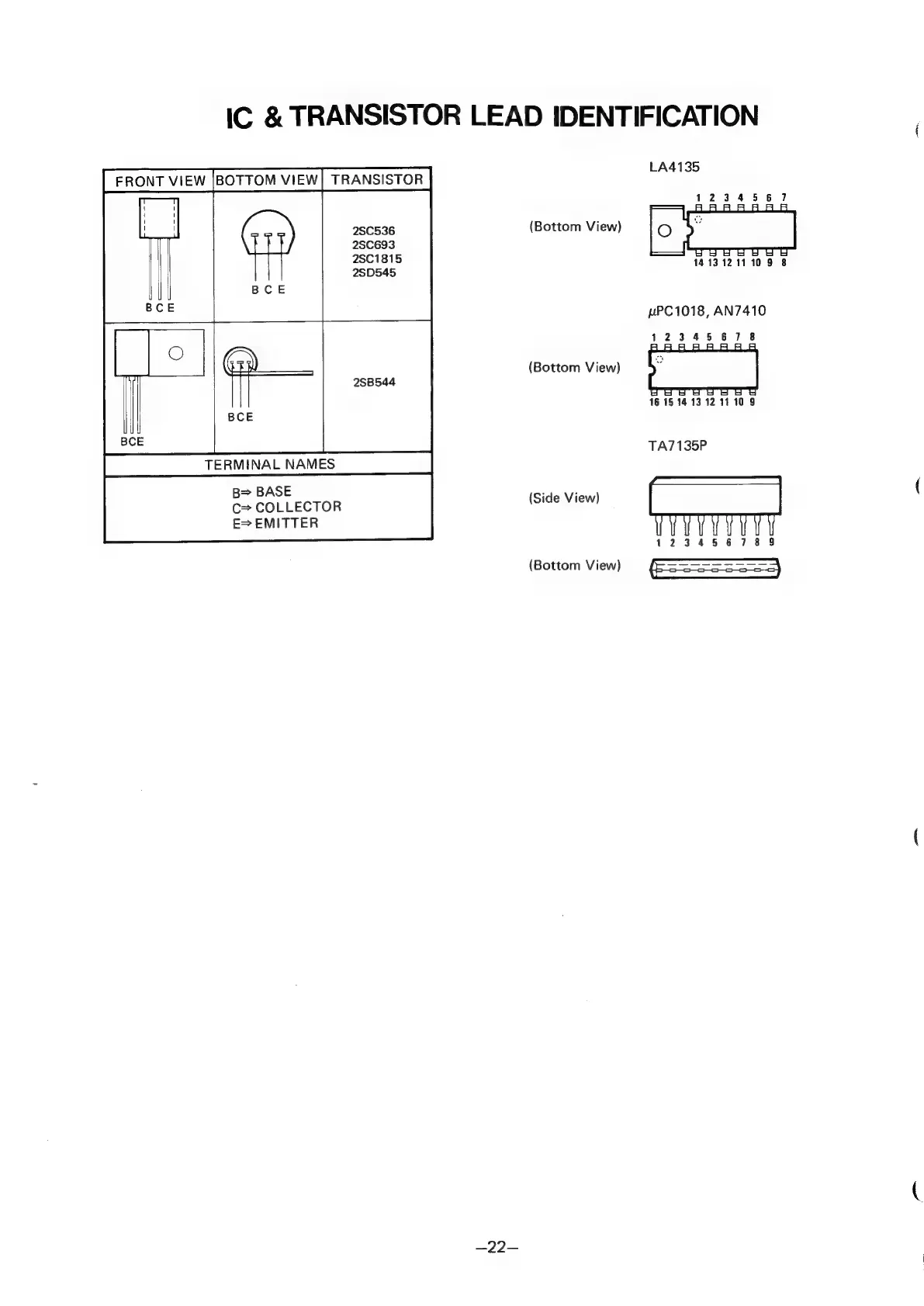

Sanyo M7700L User Manual

IC
&
TRANSISTOR
LEAD
IDENTIFICATION
LA4135
FRONT VIEW |BOTTOM VIEW| TRANSISTOR
28C536
2SC693
28C1815
2SD545
1234567
(Bottom View)
1413121110 9 8
puPC1018, AN7410
12345 67 8
(Bottom View)
2SB544
16 15141312 1110 9
TA7135P
TERMINAL NAMES
B=> BASE
C= COLLECTOR
E> EMITTER
(Side View)
12345678 9
(Bottom View) Yeo SS
