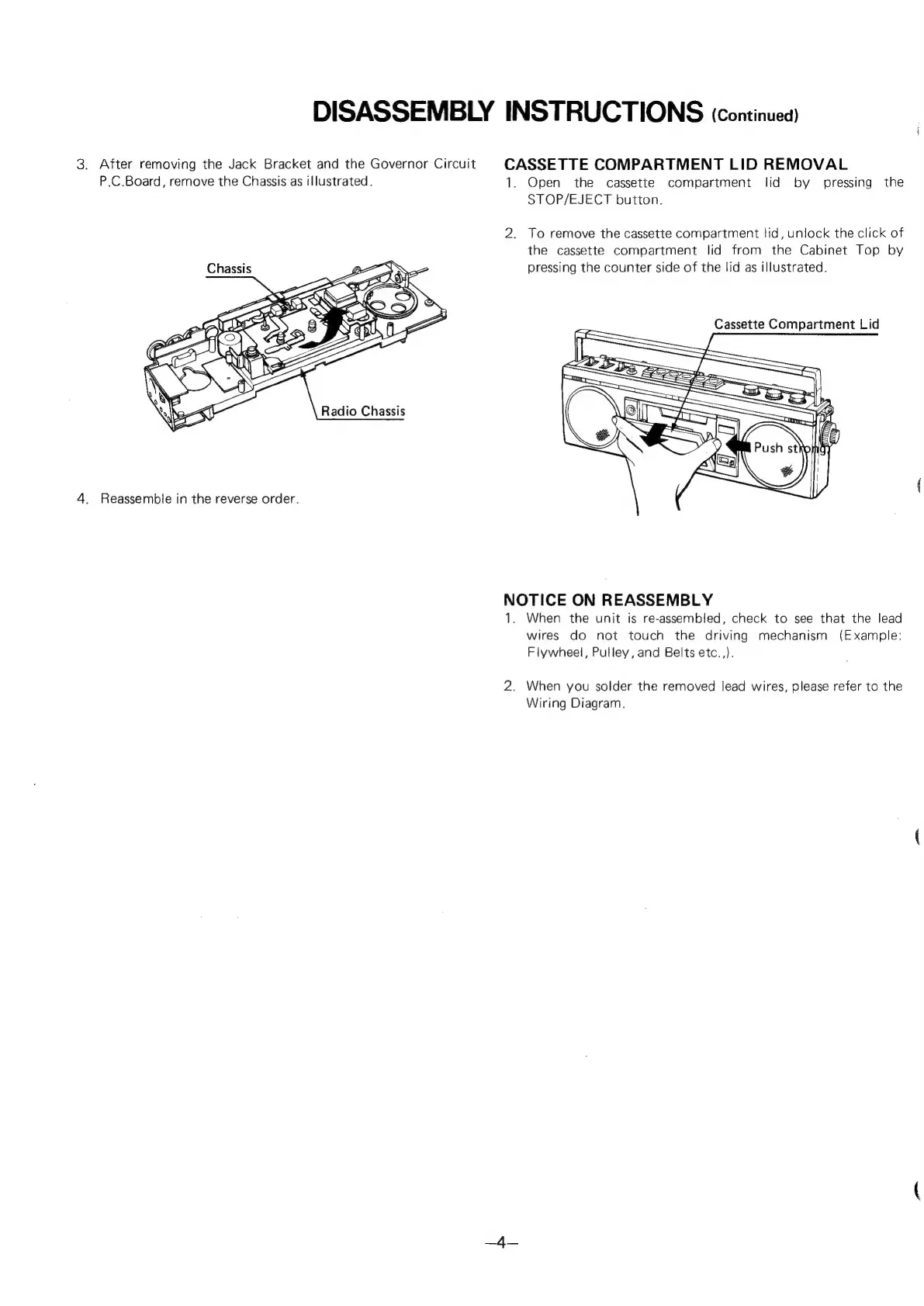

DISASSEMBLY INSTRUCTIONS (continuea)
3. After removing the Jack Bracket and the Governor Circuit CASSETTE COMPARTMENT LID REMOVAL
P.C.Board, remove the Chassis as illustrated. 1. Open the cassette compartment lid by pressing the
STOP/EJECT button.
2. To remove the cassette compartment lid, unlock the click of
the cassette compartment lid from the Cabinet Top by
Chassis pressing the counter side of the lid as illustrated.
Cassette Compartment Lid
Radio Chassis
4. Reassemblie in the reverse order.
NOTICE ON REASSEMBLY
1. When the unit is re-assembled, check to see that the lead
wires do not touch the driving mechanism (Example:
Flywheel, Pulley, and Belts etc.,).
2. When you solder the removed lead wires, please refer to the
Wiring Diagram.
