Preparations (continued)

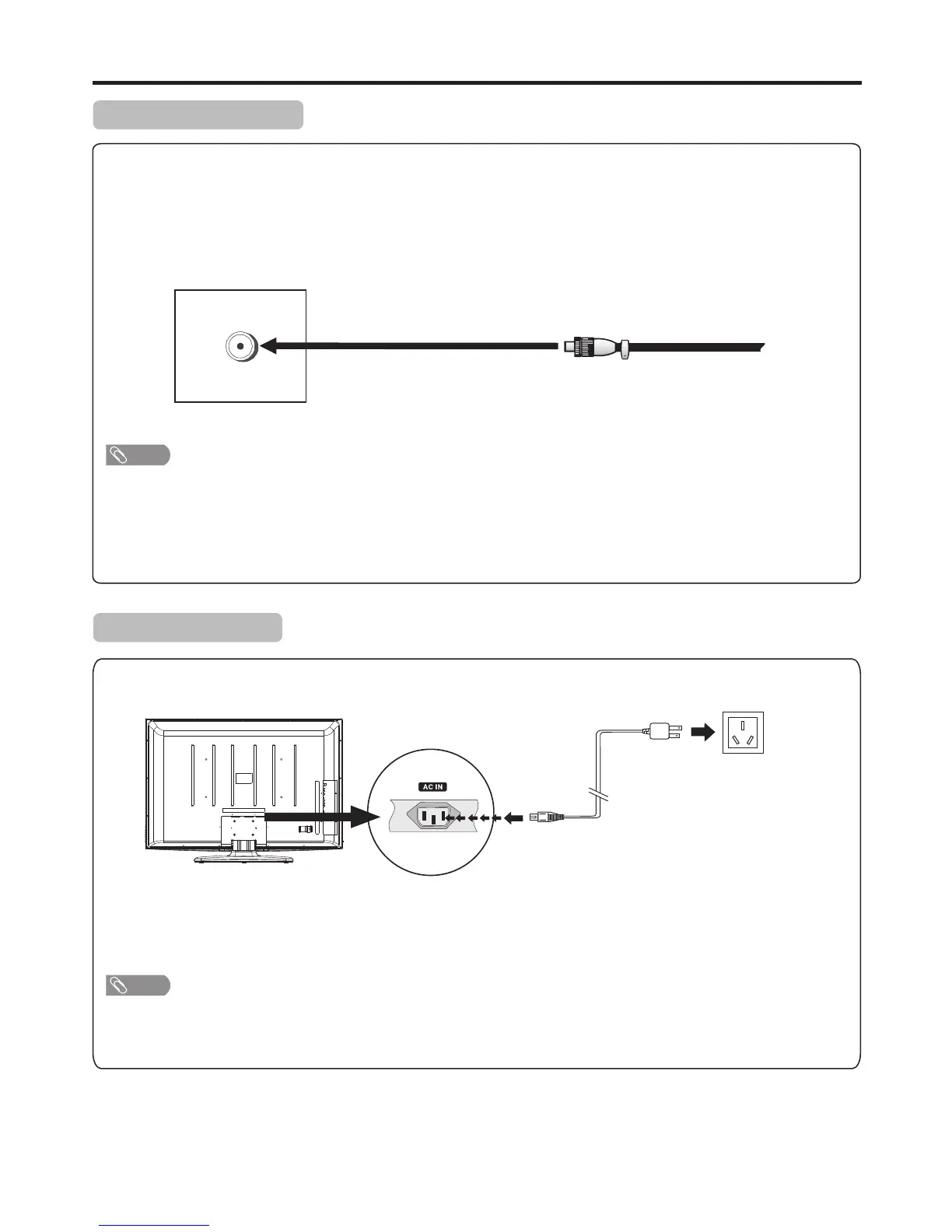

75-ohm coaxial cable (round cable)
INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture
screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
Optimum reception of color requires a good signal and will generally mean that an outdoor antenna must be used. The
exact type and position of the antenna will depend upon your particular area.
=It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave
conditions.
=The antenna cable should not be bundled with the power cord.
TV REAR
RF
Antenna Connection
Note
Power Connection
AC cord
Household
power outlet
<This product should be operated only from the type of power source indicated on the marking label.
<Always unplug the AC cord from power outlet when not using for a long period of time.
<This illustration is for reference only. The AC plug may be different on different models.
1. Connecting the female plug to the AC socket on the unit.
2. Connecting the male plug to the wall outlet as illustrated.
Note
To Next Page
