• The brightness in the room has a great influence on picture quality. It is recommended to limit
ambient lighting in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.

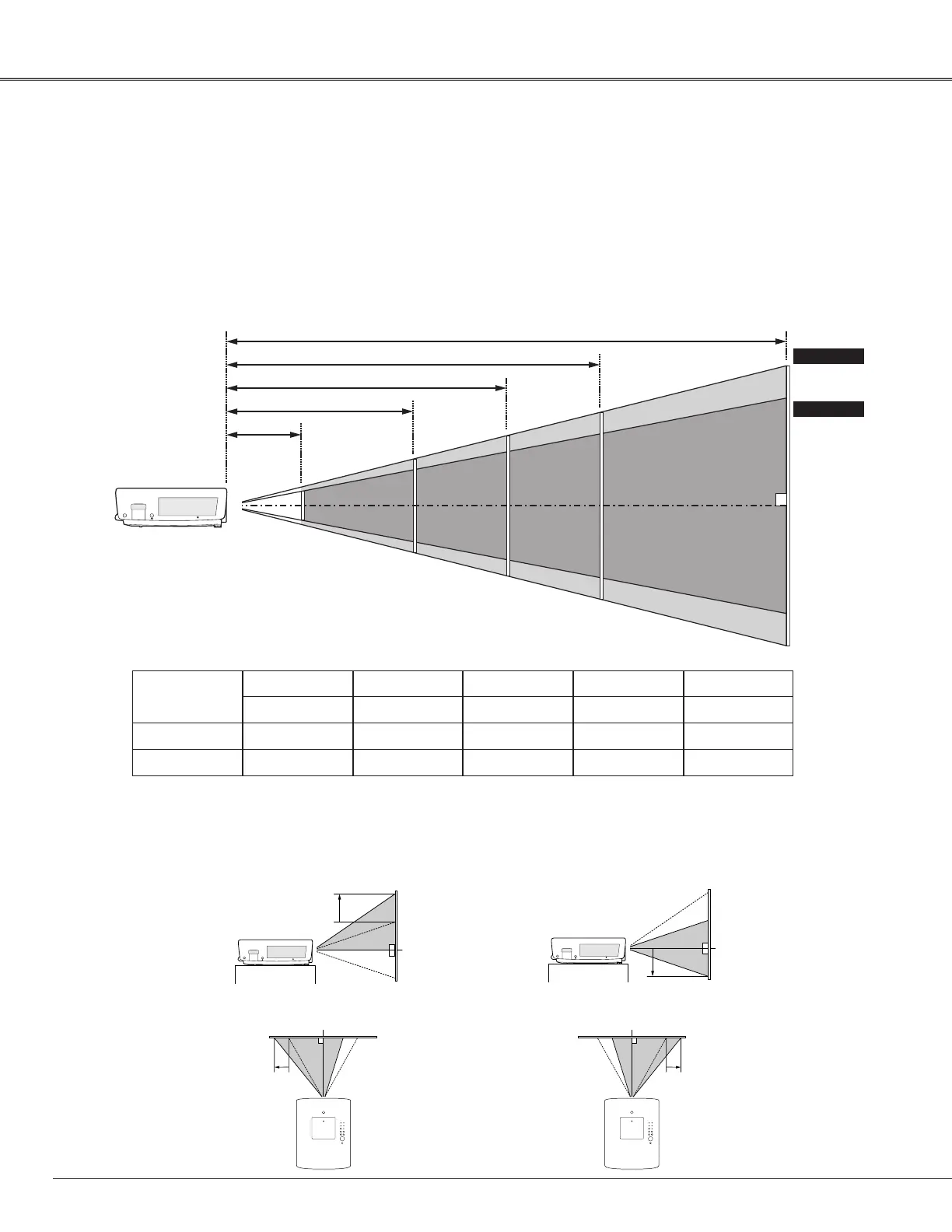

For projector positioning, see the figures below. The projector should be set perpendicularly to the plane of the
screen.
100”
32.8' (10.0m)
22.0' (6.7m)
16.4' (5.0m)
10.8' (3.3m)
3.9' (1.2m)
150”
200”
300”
230”
155”
116”
78”
30”
Max. Zoom
Min. Zoom
Screen Size
(W x H) mm
4:3 aspect ratio
Zoom (min.)
30”
Zoom (max.)
610 x 457
3.9’ (1.2 m)
–––––
100”
2032 x 1524
14.1’ (4.3 m)
10.8’ (3.3 m)
150”
3048 x 2286
21.3’ (6.5 m)
16.4’ (5.0 m)
200”
4064 x 3048
28.5’ (8.7 m)
22.0’ (6.7 m)
300”
6096 x 4572
–––––
32.8’ (10.0 m)
(Inch Diagonal)
(Center)
15% 15%
50%
50%
uppermost downmost
leftmost rightmost
Moving the Lens
For details about the Lens shift function, refer to “Lens Shift Adjustment” on page 28. The amount of lens shift
range varies depending on the lens. The figures below are for PLC-XT35/XT35K.
Positioning the Projector
Installation
(for PLC-XT35/XT35K)
To Next Page
