Sanyo PLC-XT35 User Manual

22

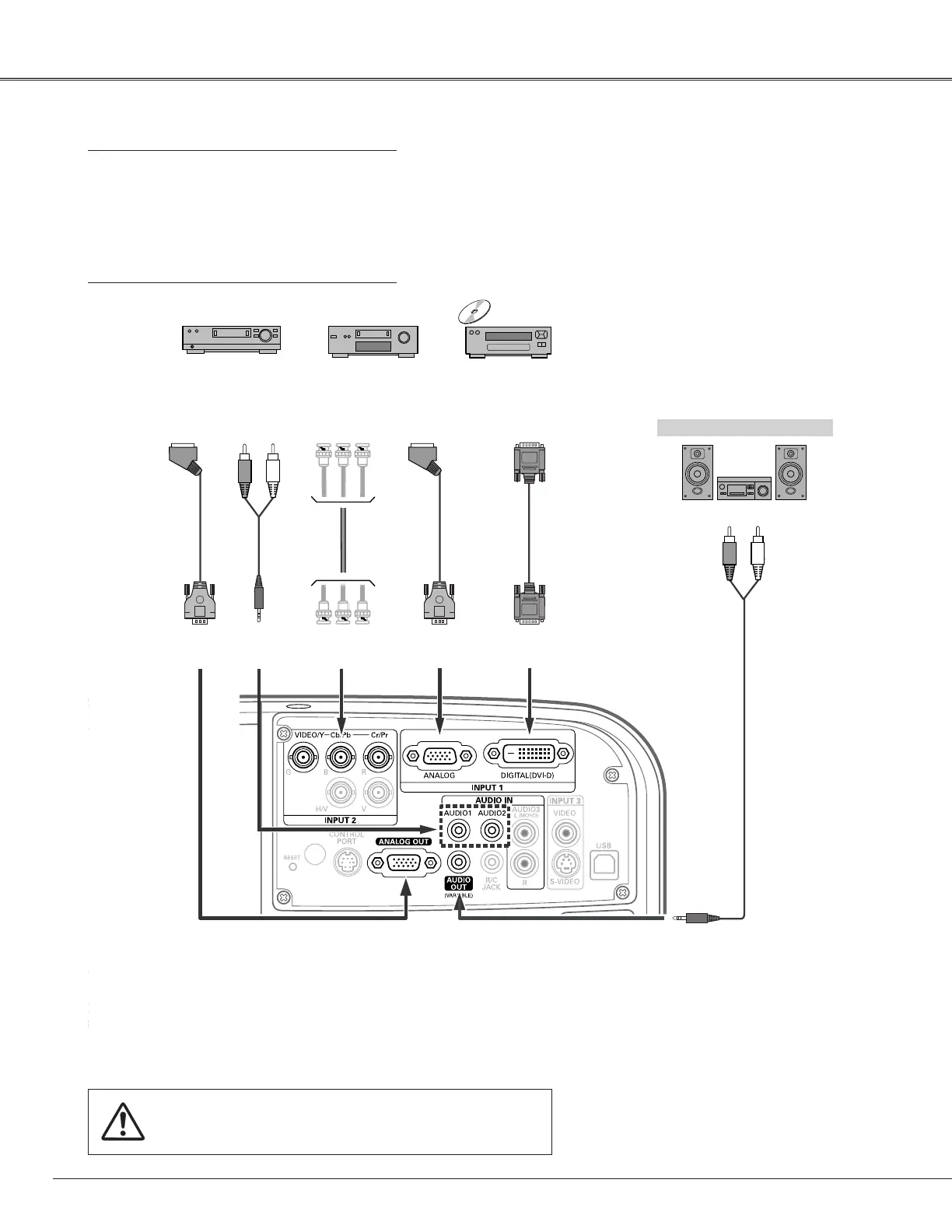

Connecting to Video Equipment (Component and RGB Scart)
Cables used for connection
• Audio Cables (Mini Plug [stereo] x 2)
• Scart-VGA Cable
• BNC Cable
• DVI-Digital Cable
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
Audio Input
Component Video
Output
(Y, Cb/Pb, Cr/Pr)
RGB Scart
21-pin Input
Audio
Output
Scart-VGA
cable
AUDIO OUT
(stereo)
Audio
cable
(stereo)
AUDIO
IN
ANALOG
OUT
Y Cb/Pb Cr/Pr
ANALOG
IN
Scart-VGA
cable
BNC
cable
DVI-Digital
cable
RGB Scart
21-pin Output
Digital Output
(HDCP
compatible)
DIGITAL
(DVI-D)
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
✔Notes:
• When the AUDIO OUT is plugged-in, the projector’s built-
in speaker is not available.
• See page 73 for ordering optional cables.
