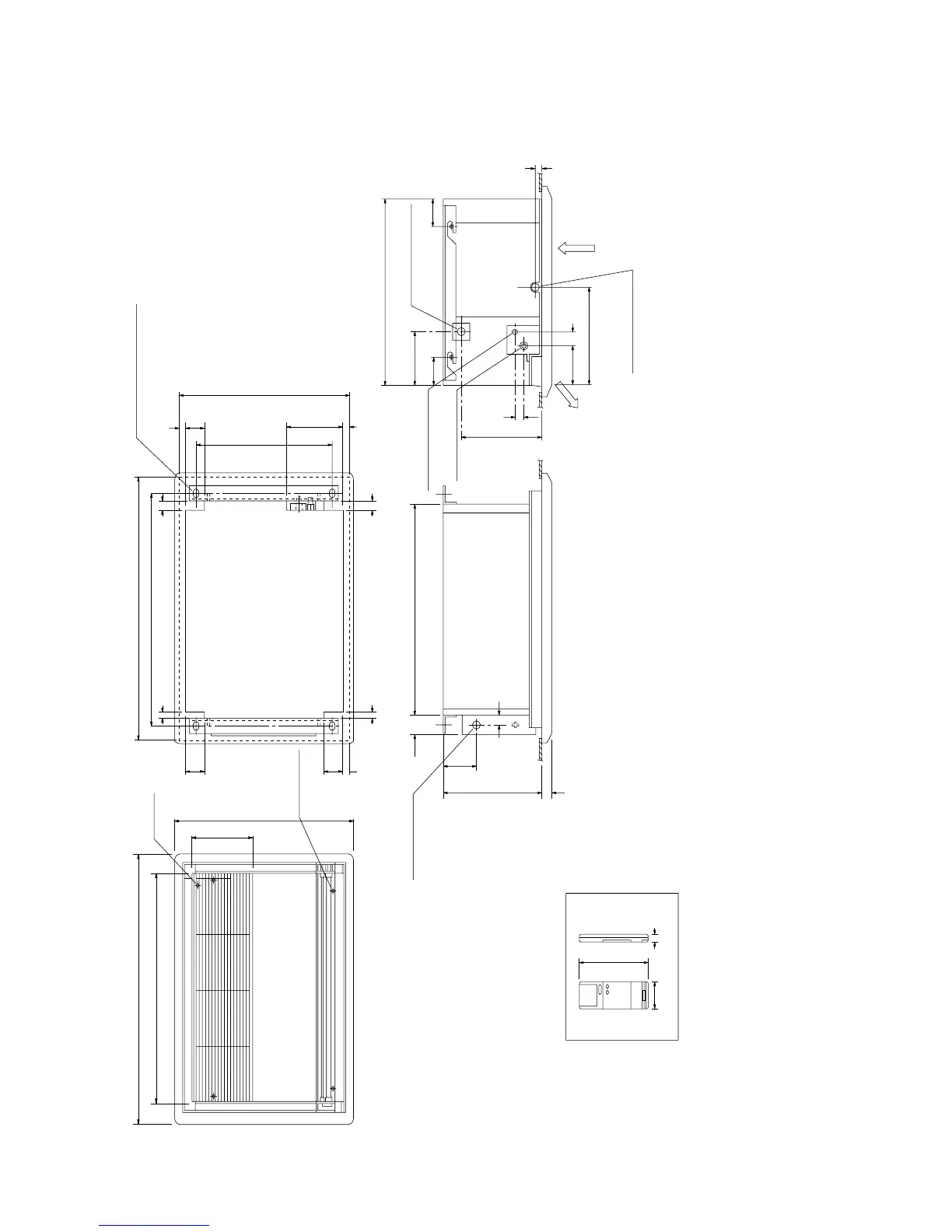

3. DIMENSIONAL DATA
Indoor Unit: RS1211
Wireless remote control unit
2-13/64 19/32
6-7/64
31-29/32
27-1/32
Air intake
Ceiling panel detail
8-7/32
24-13/32
Air discharge
2-3/4
25/32 1-3/16
30-23/32 (For ceiling opening)
27-3/8
4-19/32 × 1-3/16 Oval holes
Hole for suspension bolt
19/32
2-3/4
25/32 1-3/16
2-3/4
19/32
19/32
18-11/16
7-11/16
23-7/32 (For ceiling opening)
Power wiring outlet
1-3/32
1-3/16
11-13/32
2-3/8
25-3/16
1/4" Narrow tube fitting
1/2" Wide tube fitting
PVC drain pipe OD 1-1/32
Use drain pipe adapter (accessory)
4-11/32
10-5/8
2-3/8
25/32
Air discharge
Drain pipe for service
11-5/16
1-9/16
4-17/32
Air intake
22-1/16
6-9/16
3-7/32
3-7/32
25/36
