MECHANICAL DISASSEMBLY

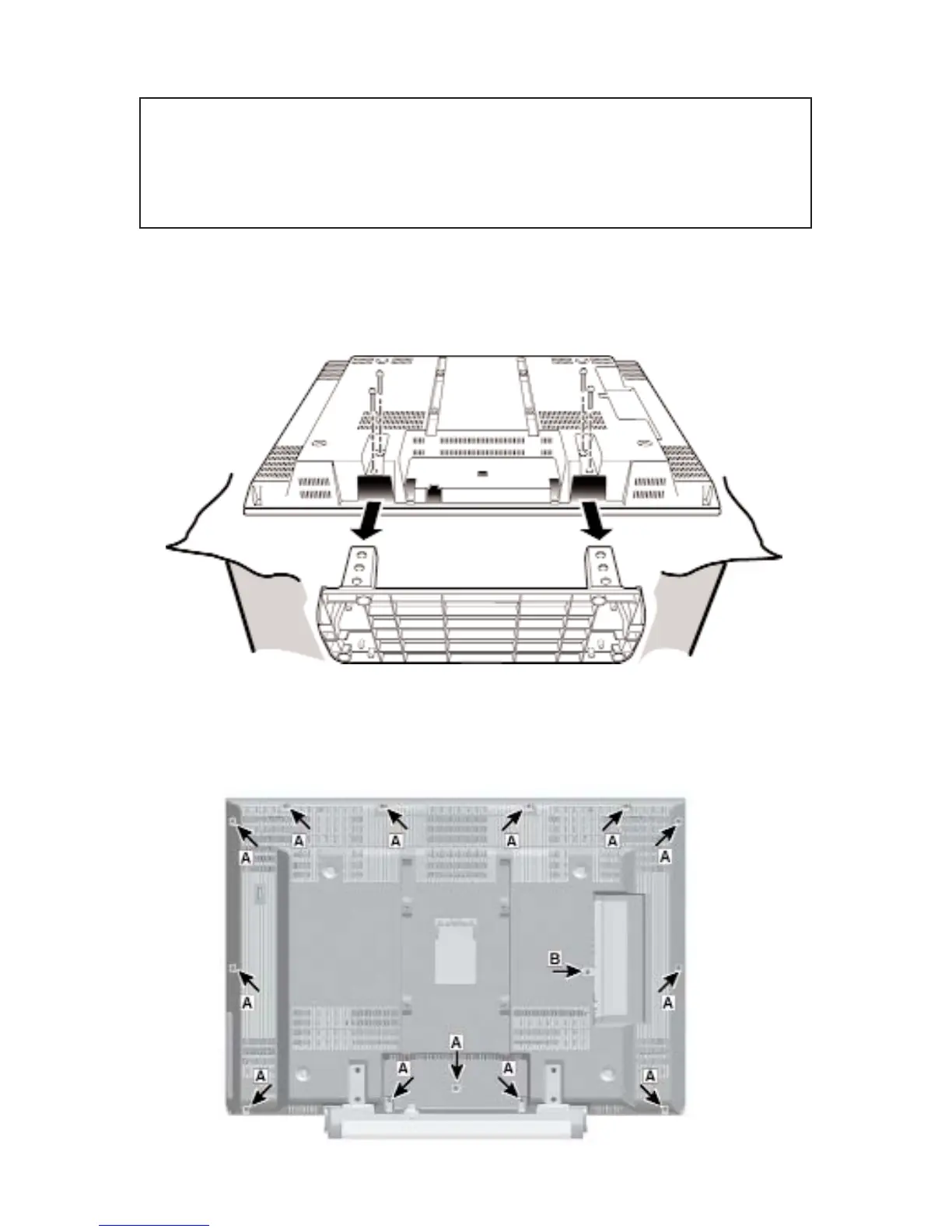

BACK CABINET REMOVAL
Remove 14 screws to take the cabinet back off.
(A:4X14, 13pcs; B:4X8, 1pcs;)
STAND REMOVAL
Position TV face down on a padded or cushioned surface to protect the screen and finish.
Remove 4 screws (6X18) and remove stand.
ATTENTION
This LCD TV uses several different kinds of screws. Using the correct screw is required
to prevent damage.
The gaskets are provided to prevent interference to other radio and television
receivers. The gaskets must be returned to their previous positions after servicing.
Lead wires must be redressed to previous positions after servicing.
