– 23 –
SM830076
1. Specifications

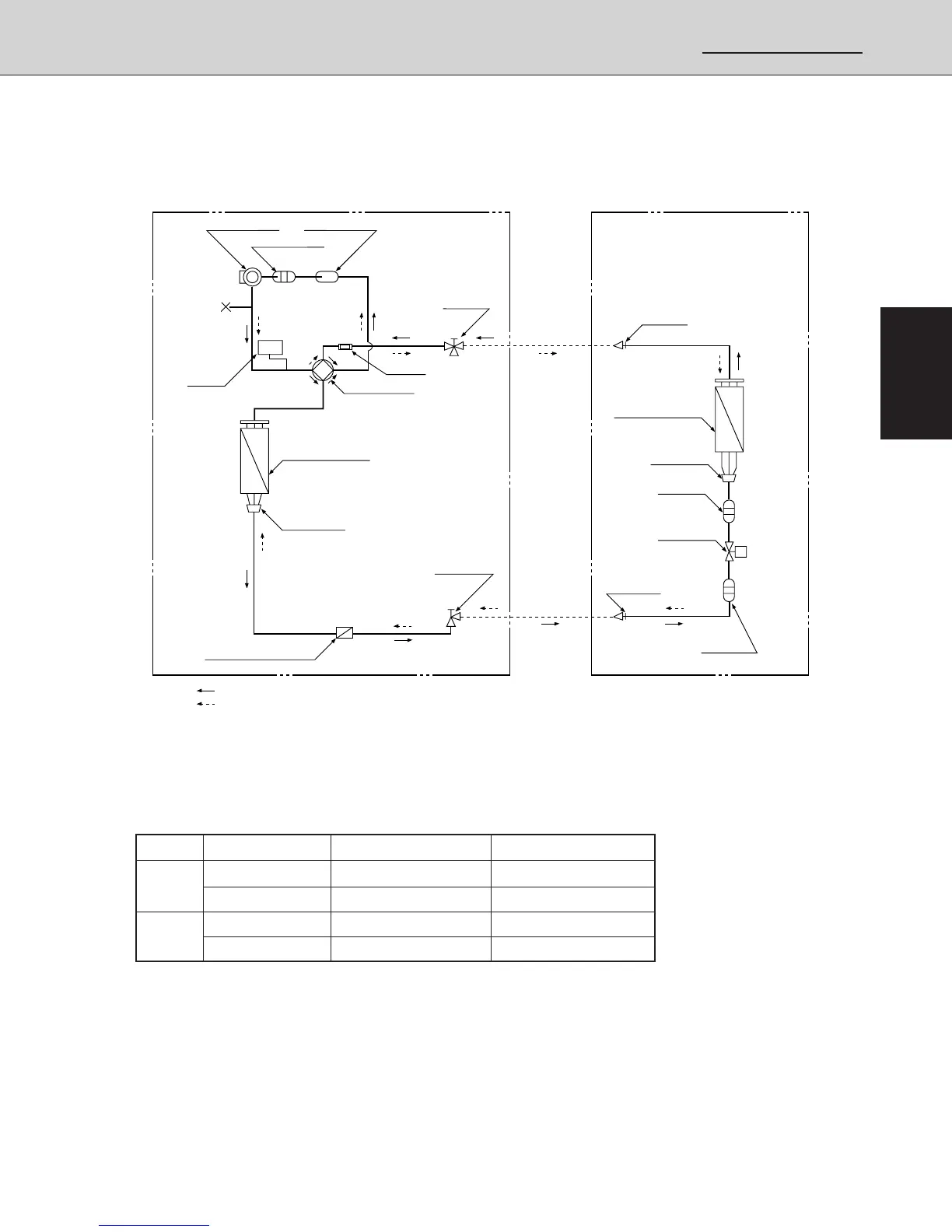

1-5 Refrigerant Flow Diagram
Outdoor Unit: CH2432 Indoor Unit: XHS2432
1-6 Operating Range
Temperature Indoor Air Intake Outdoor Air Intake
Cooling
Maximum 95 °F DB, 71 °F WB 115 °F DB
Minimum 67 °F DB, 57 °F WB 23 °F DB
Heating
Maximum 80 °F DB, 67 °F WB 75 °F DB, 65 °F WB
Minimum -DB / -WB 17 °F DB / 15 °F WB
HP
High
pressure
switch
Compressor
Accumulator
Accumulator
EC
P
Heat exchanger
4-way valve
EC
P
Heat exchanger
Distributor
Electronic
ref.control
valve
Strainer
Liquid line
nipple
Liquid line
service
valve
O.D.
1/4"
(6.35mm)
O.D.
3/4"
(19.05mm)
Gas line
nipple
Gas line
service
valve
Distributor
Sub-heat exchanger
Cooling Cycle
Heating Cycle
Strainer
M
1132_THS_I
Muffler
