Description of the receiver and its functions

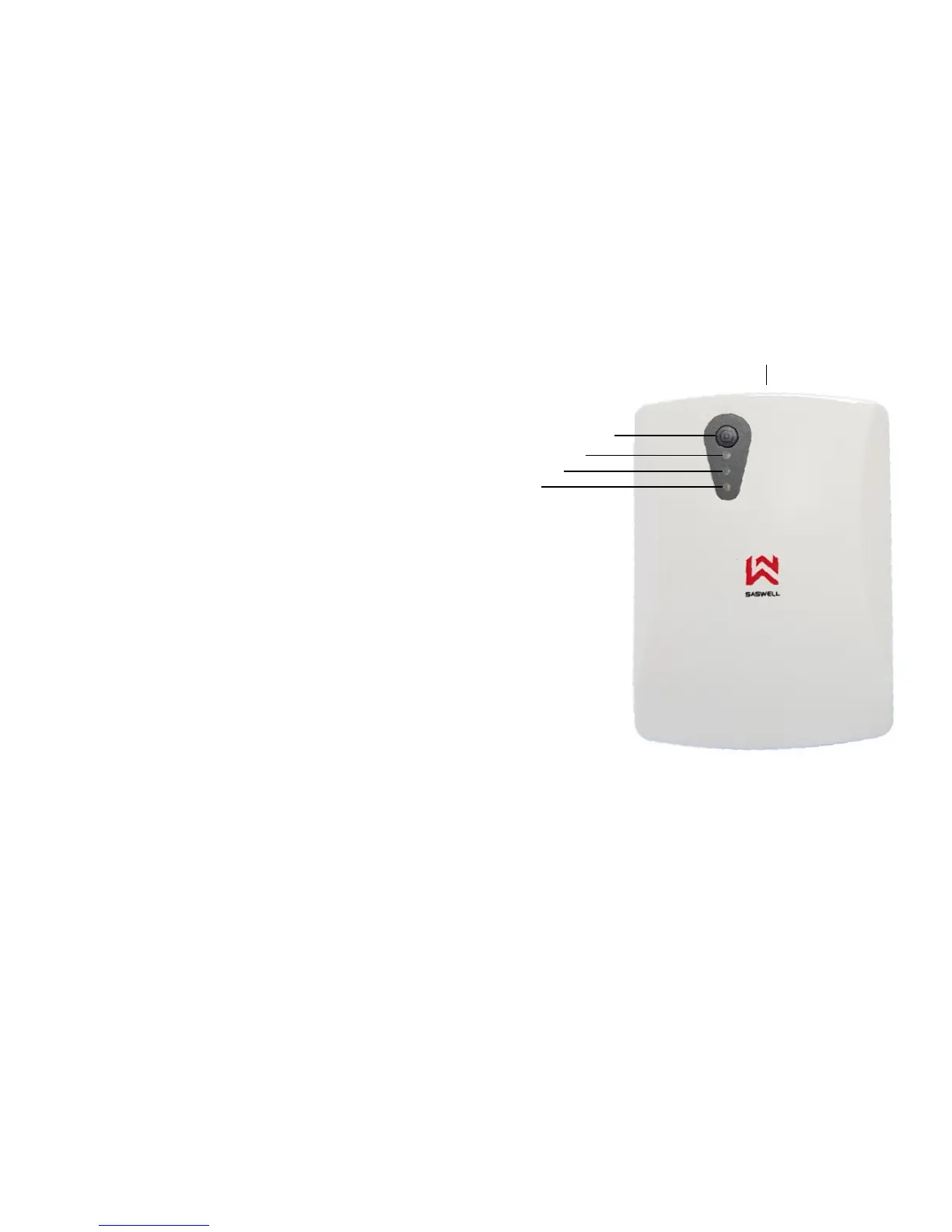

Receiver description
6. Screw for opening the housing
7. Main and the only button on the receiver
8. LED indicator A (green / red LED)
9. LED indicator B (green LED)
10. LED indicator C (yellow LED)
Button description, turning the receiver ON and OFF
The device has only one button and with this button you control all of the
functions of the device. The primary function of the button is of course for
turning the device ON and OFF. You can do this by shortly pressing on the
button. If the receiver is connected to a power source and the receiver is
turned off, none of the LED indicators should be lit. When the receiver is
turned on, LED indicator A is always lit.
Need for heat
When the thermostat gives the command for heating, the thermostats LED
indicator B goes lit. When there is no more need for heating, the LED
indicator B turns off.
Communication between the devices, Connection TEST
When the thermostat is communicating with the receiver or vice versa, the LED indicator C blinks twice. This is also the
way to test if the communication between the devices is working as for example, if you increase or decrease the
temperature on the thermostat, the receiver should confirm the order by blinking LED indicator, as described.
