Schlage LE User Manual

*P518-027*
P518-027
Table of Contents
Prepare for Installation 2
Sectional Trim Installation 3
Escutcheon Trim Installation 6
User Guide 9
Troubleshooting 12
Compatible Cylinder Measurements
Door
Thickness
Minimum Cylinder
Length
Maximum Cylinder
Length
1C\v" 1Z\v" (without spring) 1Z\x"
2"
1C\," (without spring) 1B\,"
2Z\v" 1Z\x" 1C\v" (with spring)
If your cylinder measurements are not compatible,
contact Customer Service for assistance.
Customer Service
1-877-671-7011 www.allegion.com/us
Installation Preparation
Tools Needed
• #1 and #2 Phillips screwdriver
• Lever installation tool (included
in box)
• Needle-nose pliers
Optional
• Drill with 3/8” drill bit
• Tamper-proof Torx drivers
Door preparation:
Contact Product Support at
1-877-671-7011.
IMPORTANT NOTES
All images shown in the manual show RH installation.
Do NOT use impact driver to install product.
Install and test lock with door open to avoid being locked out!
NOTICE
Notices indicate a condition that may cause equipment or
property damage only.
ENGAGE™ WEB & MOBILE APPLICATIONS
Search for “Allegion ENGAGE” in the Apple App Store or Google
Play store to download the app.
Navigate to portal.allegionengage.com to access your account
online.

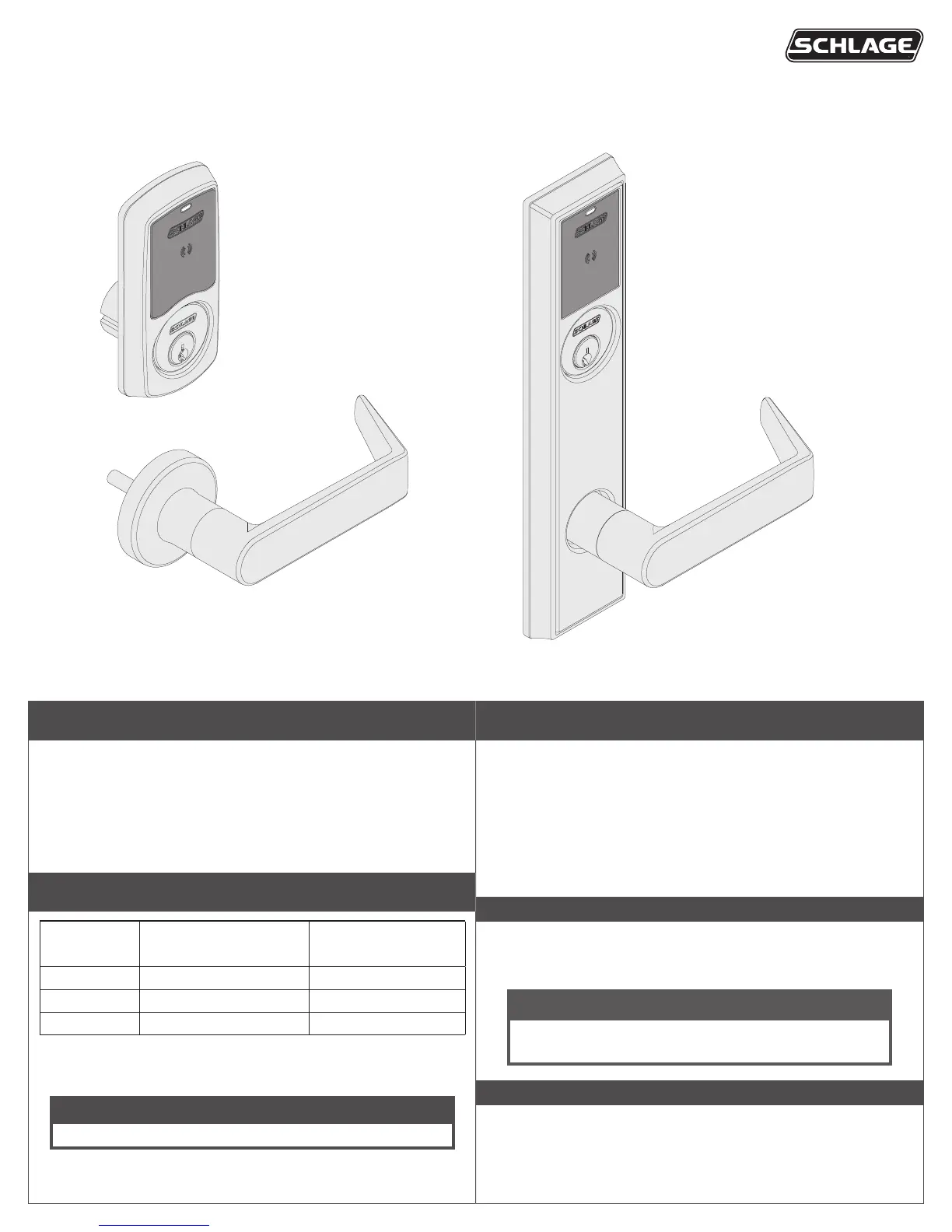

LE-Lock
Model LE Installation Instructions and User Guide
Sectional Trim
Greenwich (GRW)
Escutcheon Trim
Addison (ADD)
Para español, vaya a la página 14.
Pour le français, voir la page 14.

Schlage LE Specifications

General

Connectivity	Bluetooth
Power Source	Battery
Door Thickness	1-3/8" to 1-3/4"
Battery Type	4 AA batteries
Mortise	No
Brand	Schlage
Model	LE
Handing	Reversible
Keyway	Schlage C
ANSI Grade	Grade 1
Lock Type	Electronic
Finish Options	Satin Nickel
Operating Temperature	-4°F to 140°F (-20°C to 60°C)
Backset	Adjustable 2-3/8" or 2-3/4"
Warranty	3-year electronics warranty
