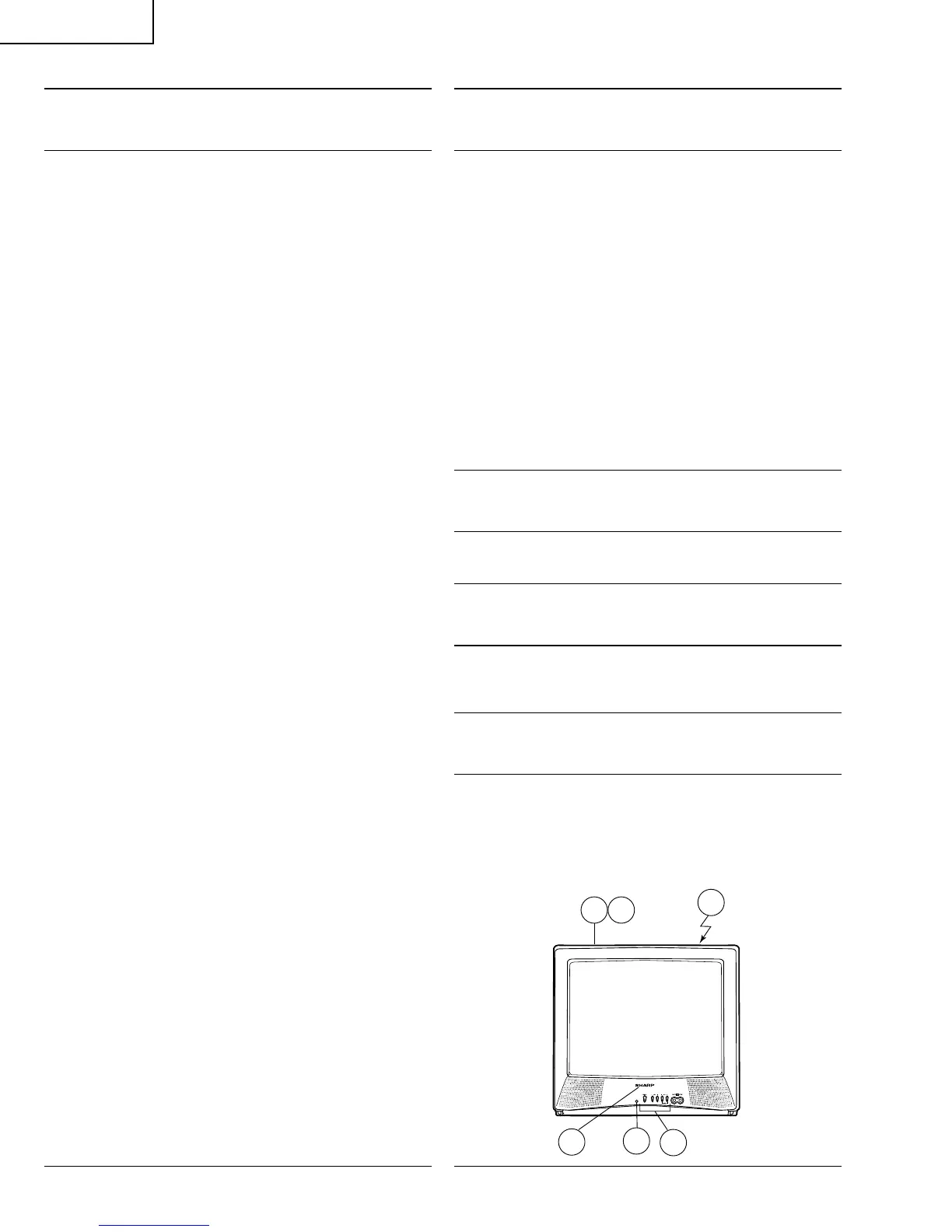

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
26
19R-M100
1 CCABAA075WEV0 X Cabinet
1-1 Not Available – Front Cabinet —
1-2 GCOVAA107WJSA X Cover for R/C
1-3 HBDGB0019PESB R Badge, "SHARP" AD
1-4 JBTN-A042WJKA X Button(Power, Vol-up/down,
CH-up/down)
2 GCABBA042WJKA X Rear Cabinet
CABINET PARTS
å ACC701 QACCD3064CESA J AC Cord(AC120V/60Hz) AM
or
QACCD3060CESA
or
QACCD3090CESA
SP1 VSP0080PBQ9YA J Speaker, 32 ohm AH
or
VSP0080PBP7YA
or
VSP0080PBP8YA
QCNW-0167MEZZ J Connecting Cord AE
QCNW-2046PEZZ R Connecting Cord AF
QCNW-2160PEZZ R Connecting Cord AG
LHLDK0014PEZZ R AC Cord Holder AD
LHLDZ0063PEZZ R Anode Clamp Holder AD
TLABM1829PEZZ R Model Label AB
TLABN0001PEZZ R Serial No. Label AD
LX-TZA003WJFD J CRT Screw, x4 AF
LX-WZ0003PEFD R CRT Washer, x4 AB
XTASD40P20000 J Screw, x4 AA
LX-TZ0019PEFD R Screw, x4
TCAUS0010PEZZ R Caution Card AB
SPAKCA150WJZZ – Packing Case —
SPAKP0098PEZZ R Wrapping Paper AG
SPAKXA076WJZZ – Buffer Material —
SSAKA0001PEZZ R Polyethylene Bag AA
PACKING PARTS
(NOT REPLACEMENT ITEM)
MISCELLANEOUS PARTS
RRMCG1324CESA J Infrared R/C Unit AT
TiNS-A205WJZZ X Operation Manual
TGAN-0018PEZZ R Guarantee Card AD
SUPPLIED ACCESORRIES
TRANSISTORS
Q852 RH-TX0110BMZZ+ J TX0110BM AC
or
VS2SC22290/1E
Q854 RH-TX0110BMZZ+ J TX0110BM AC
or
VS2SC22290/1E
Q856 RH-TX0110BMZZ+ J TX0110BM AC
or
VS2SC22290/1E
Q881 VS2PA1015Y+-1+ J 2PA1015Y AC
or
VS2SA1015-Y-1
DIODES
D882 RH-DX0048GEZZY X Diode
D885 RH-DX0475CEZZY X Diode
COIL
L852 VP-MK820K0000+ J Peaking 82µHAB
CAPACITORS
[EL.··· Electrolytic]
C851 VCCCCY1HH151JY J 150p 50V Ceramic AA
C852 VCCCCY1HH151JY J 150p 50V Ceramic AA
C853 VCCSPA1HL151J+ J 150p 50V Ceramic AA
C854 RC-KZ0029CEZZ+ X 0.01 1.4kV Ceramic
or
RC-KZ0160GEZZ
C883 VCEA0A1CW336M+ J 33 16V EL. AB
RESISTORS
[M-Ox.··· Metal Oxide]
R851 VRS-CY1JF470JY J 47 1/16W M-Ox. AA
(NORMAL NECK)
R852 VRD-RA2BE181JY J 180 1/8W Carbon AA
R853 VRS-CY1JF121JY J 120 1/16W M-Ox. AA
å R857 VRS-VV3AB123J J 12k 1W M-Ox. AA
R858 VRD-RM2HD332JY J 3.3k 1/2W Carbon AA
R859 VRS-CY1JF470JY J 47 1/16W M-Ox. AA
(NORMAL NECK)
R860 VRD-RA2BE181JY J 180 1/8W Carbon AA
R861 VRS-CY1JF121JY J 120 1/16W M-Ox. AA
å R865 VRS-VV3AB123J J 12k 1W M-Ox. AA
R866 VRD-RM2HD332JY J 3.3k 1/2W Carbon AA
R867 VRS-CY1JF470JY J 47 1/16W M-Ox. AA
R868 VRS-CY1JF181JY J 180 1/16W M-Ox. AA
R869 VRS-CY1JF121JY J 120 1/16W M-Ox. AA
å R873 VRS-VV3AB123J J 12k 1W M-Ox. AA
R874 VRD-RM2HD332JY J 3.3k 1/2W Carbon AA
R881 VRS-CY1JF561JY J 560 1/16W M-Ox. AA
R882 VRS-CY1JF391JY J 390 1/16W M-Ox. AA
R883 VRD-RA2BE561JY X 560 1/8W Carbon
R884 VRS-CY1JF152JY J 1.5k 1/16W M-Ox. AA
R886 VRS-CY1JF821JY J 820 1/16W M-Ox. AA
R887 VRD-RA2BE470JY J 47 1/8W Carbon AA
R890 VRS-CY1JF470JY J 47 1/16W M-Ox. AA
(MINI NECK)
R891 VRS-CY1JF470JY J 47 1/16W M-Ox. AA
(MINI NECK)
MISCELLANEOUS PARTS
P851 QPLGN0561CEZZ J Plug, 5-pin(GBN) AB
P852 QPLGN0461CEZZ J Plug, 4-pin(YBN) AB
SC851 QSOCV0016PEZZ R Socket, 11-pin AF
or (NORMAL NECK)
QSOCV0933CEZZ
SC852 QSOCV0841CEZZ J Socket, 9-pin AG
or (MINI NECK)
QSOCV0840CEZZ
PWB-B: DUNTKA359WEW4 (MINI NECK)
PWB-B: DUNTKA359WEW5 ( NORMAL NECK )
CRT UNIT
1
2
1-1
1-3
1-2
1-4
