DVD
CAMCORDER
TV GAME
VCR
Yellow : To video input terminal
White : To audio input (L) terminal
Red : To audio input (R) terminal
(Front connection
terminals of TV)
To AUDIO OUTPUT (R)
To AUDIO OUTPUT (L)
To VIDEO OUTPUT

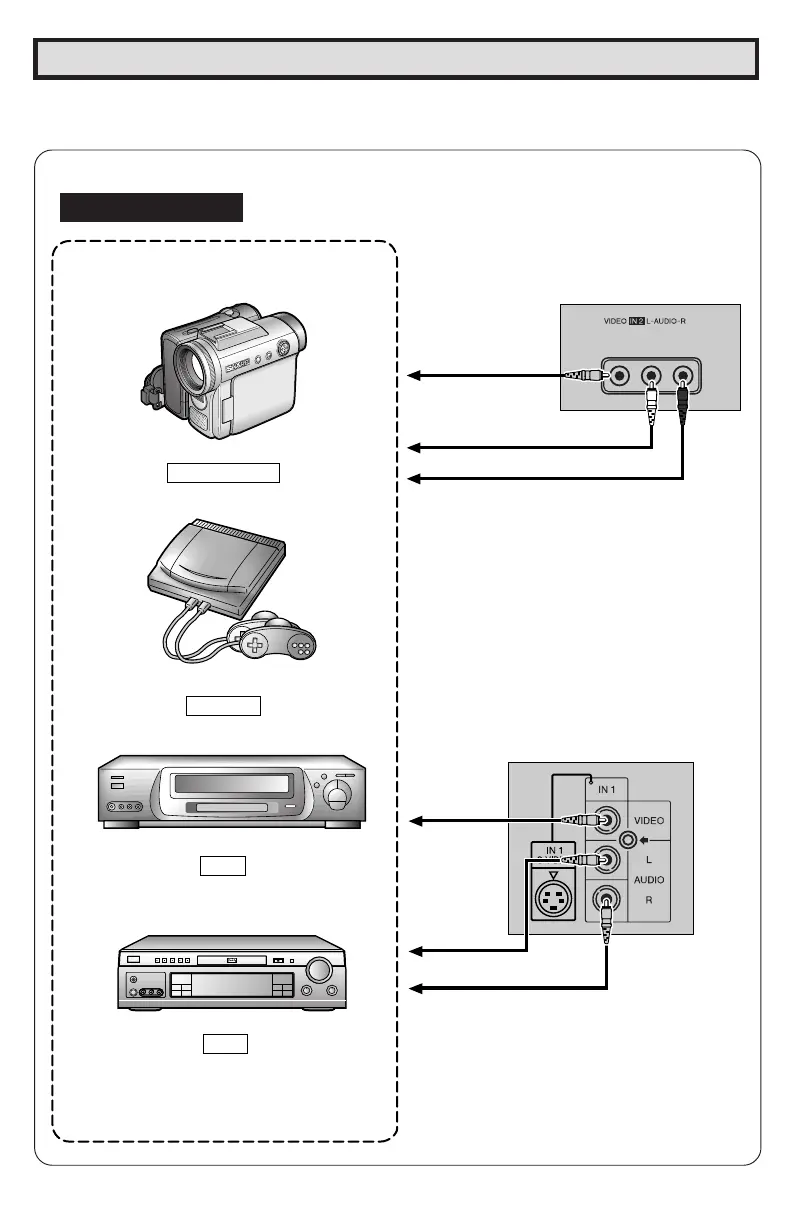

Using the Video and Audio Input Terminals
VIDEO EQUIPMENT
•
Connecting video equipment for playback of video material.
• To view video material from external video equipment, make sure to connect the equipment properly
to the input terminals on the TV set.
Connecting video device equipped with video output terminals
CONNECTIONS
32C240(33-34) 03.11.28, 0:58 PM33
(Rear connection
terminals of TV)
To VIDEO
OUTPUT
To AUDIO
OUTPUT (L)
To AUDIO OUTPUT (R)
To Next Page
