Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
42
32R-S480
CR32S48
MISCELLANEOUS PARTS
SUPPLIED ACCESSORIES
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKC0225GJZZ – Packing Case —
SPAKP0110GJZZ – Polyethylene Paper —
SPAKX0126GJZZ – Buffer Material —
SSAKA0101GJZZ – Polyethylene Bag —
TGAN-0001GJZZ – Registration Card —
(32R-S480)
CABINET PARTS
1 CCABA0156WEH0 X Front Cabinet Ass’yBK
(32R-S480)
1 CCABA0156WEH1 X Front Cabinet Ass’yBK
(CR32S48)
1-1
Not Available
– Front Cabinet —
1-2 HBDGB1009MESB X Badge, "SHARP" AG
1-3 GCOVA0116GJKA X Door Cover AG
1-4 GDORF0104GJKA X Door AF
1-5 GCOVA0117GJKA X R/C-LED Cover AF
1-6 JBTN-0117GJKA X Button, Power AF
1-7 JBTN-0118GJKA X Button, Menu, AG
CH-Up/Down, VOL-Up/Down
2 GCABB0142GJKA X Rear Cabinet BC

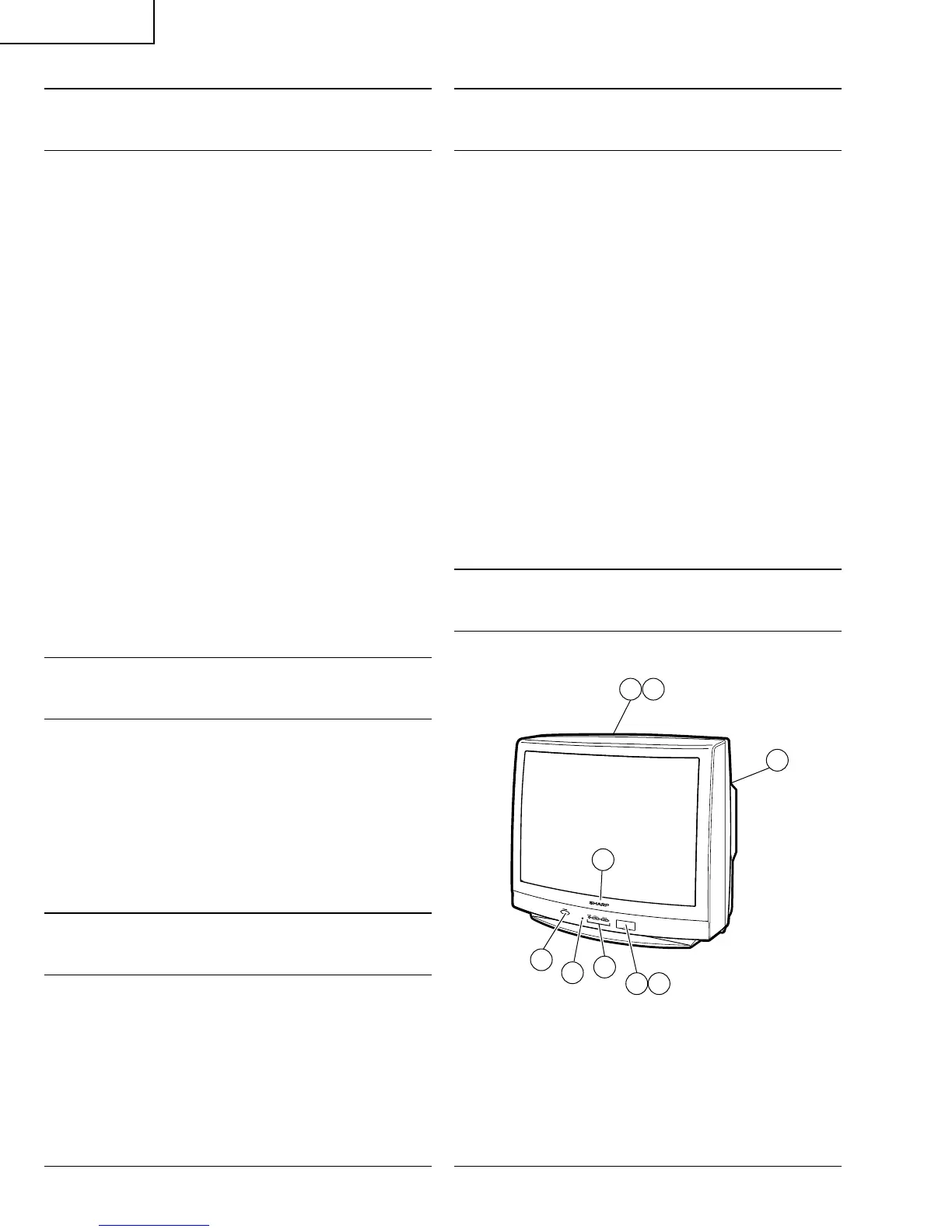

CABINET PARTS LOCATION
1
2
1-1
1-6
1-5
1-7
1-3 1-4
1-2
å
ACC701
QACCD3065CESA J AC Cord AN
SP1 VSP1206PB598A X Speaker(L), 8 ohm AP
SP2 VSP1206PB598A X Speaker(R), 8 ohm AP
LHLDK0014PEZZ R AC Cord Holder AD
LHLDW1002PEZZ R Wire Holder, x3 AB
LHLDW1002PEZZ J Wire Holder AB
LHLDW1009PEZZ R Wire Holder AA
LHLDW1033PEZZ R Wire Holder, x2 AA
LHLDW1037PEZZ J Wire Holder AB
LHLDW1060CEZZ J Wire Holder, x3 AB
LHLDW1062PEKZ R Wire Holder AD
LHLDZ1037MEZZ X Anode Clamp Holder AD
LX-TZ0104GJFD X Screw for CRT, x4 AF
LX-TZ3004CEFD J Screw for Speaker, x4 AA
LX-WZ0104GJFD X CRT Washer, x4 AC
QCNW-0136GJZZ X Connecting Cord(S) AG
QCNW-0165GJZZ X Connecting Cord(EJ) AK
QCNW-0167GJZZ X Connecting Cord AF
QCNW-A081GJZZ X Connecting Cord(YBN) AG
QCNW-A082GJZZ X Connecting Cord(GBN) AH
TCAUH3044GJZZ X Caution Card AD
(32R-S480)
TCAUS3001GJZZ X Warning Label AE
(CR32S48)
TCAUS3002GJZZ X Warning Label AE
(CR32S48)
TLABZ0152GJZZ X Feature Label AD
(32R-S480)
TLABZ0158GJZZ X Packing Case Label AF
(CR32S48)
XTASD30P12000 J Screw, x2 AA
XTASD40P20000 J Screw, x8 AA
TiNS-7433GJZZ X Operation Manual AN
(32R-S480)
TiNS-7505GJZZ M Operation Manual
(CR32S48)
RRMCG1627CESB X Infrared R/C Unit AV
