[3] THERMISTOR TEMPERATURE CHARACTERISTICS
1. Outdoor unit thermistor temperature characteristics
[4] HOW TO OPERATE THE OUTDOOR UNIT INDEPENDENTLY
1. Cooling in 40 Hz fixed mode
To measure the resistance, first remove the connector from the board.
500K
400K
300K
200K
100K
0
-20 0 20 60 80 100 120
3.06K5.78K
4.17K 2 28K
1.72K
1 8
Connector
(CN8)
TH1: compressor thermistor
Temperature (ºC)
Tester
roloCrotsimrehT No. Connector
Compressor thermistor
Heat exchanger pipe thermistor
Outdoor temp. thermistor
Suction temp. thermistor
TH1
TH2
TH3
TH4
1 - 2
3 - 4
5 - 6
7 - 8
Red
Orange
Green
Black
25ºC resistance
45 K
Resistance ( )
40K
30K
20K
10K
0
-20 0 20 60
40
1 8
Connector
CN8
TH2: Heat exchange thermistor
TH3: Outdoor temp. thermistor
TH4: Suction pipe thermistor
TH2, TH3, TH4
Temperature (
ºC)
Tester
Resistance ( )
0ºC resistance
14.5 K
25ºC resistance
4.431 K

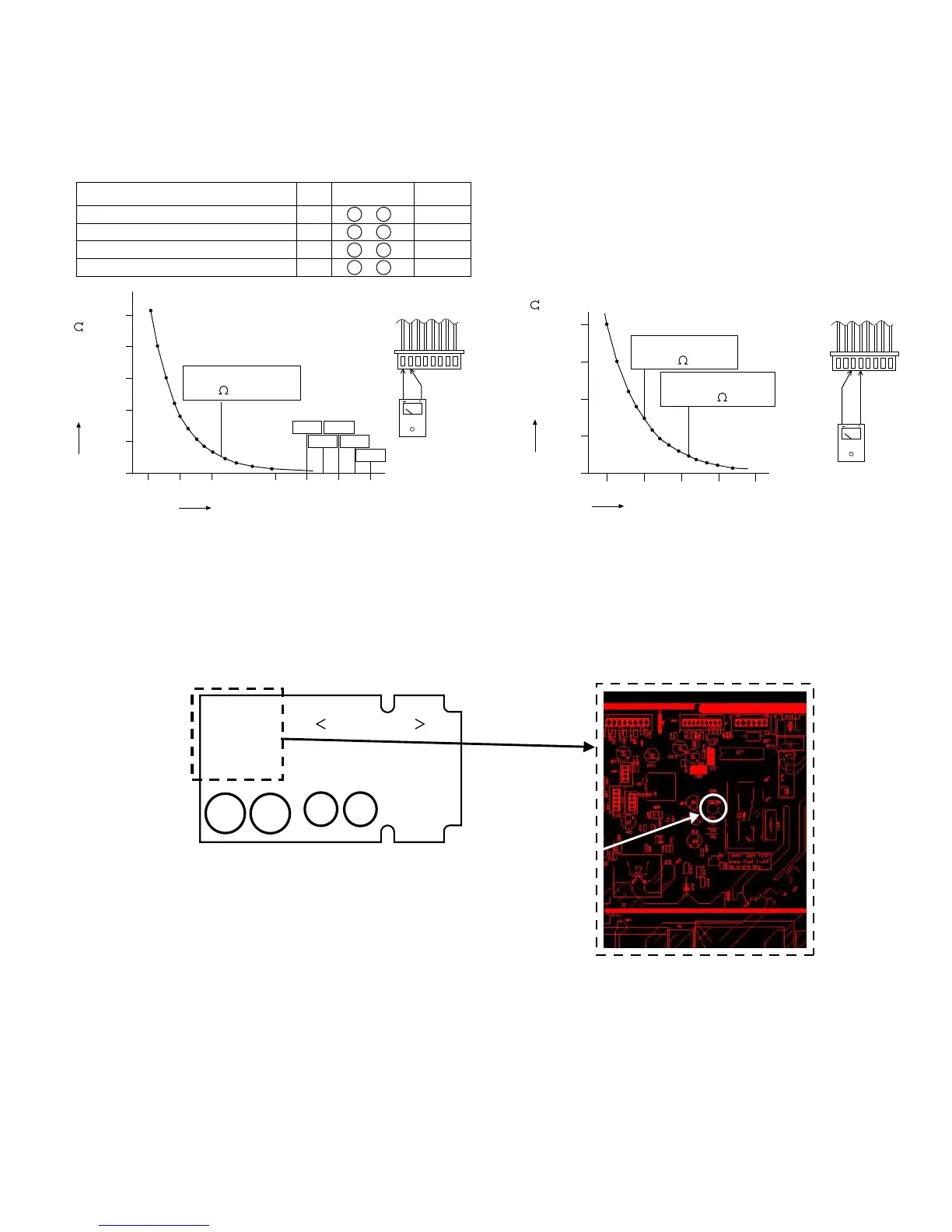

To operate the outdoor unit independently, short-circuit the sections indicated by arrows in the diagram below with an adapter, and apply rated VAC
between (L1) and (L2) on the terminal board of the outdoor unit. This allows the outdoor unit to be operated in cooling mode independently.
(Do not operate the outdoor unit in this condition for an extended period of time.)
L3
these pads are connected and Power is applied to L1 and L2 on terminal board.
n the outdoor unit operate in "TEST COOL 40Hz" mode.
