AE-X15PU
2 – 1
CHAPTER 2.
ELECTROIC CIRCUIT

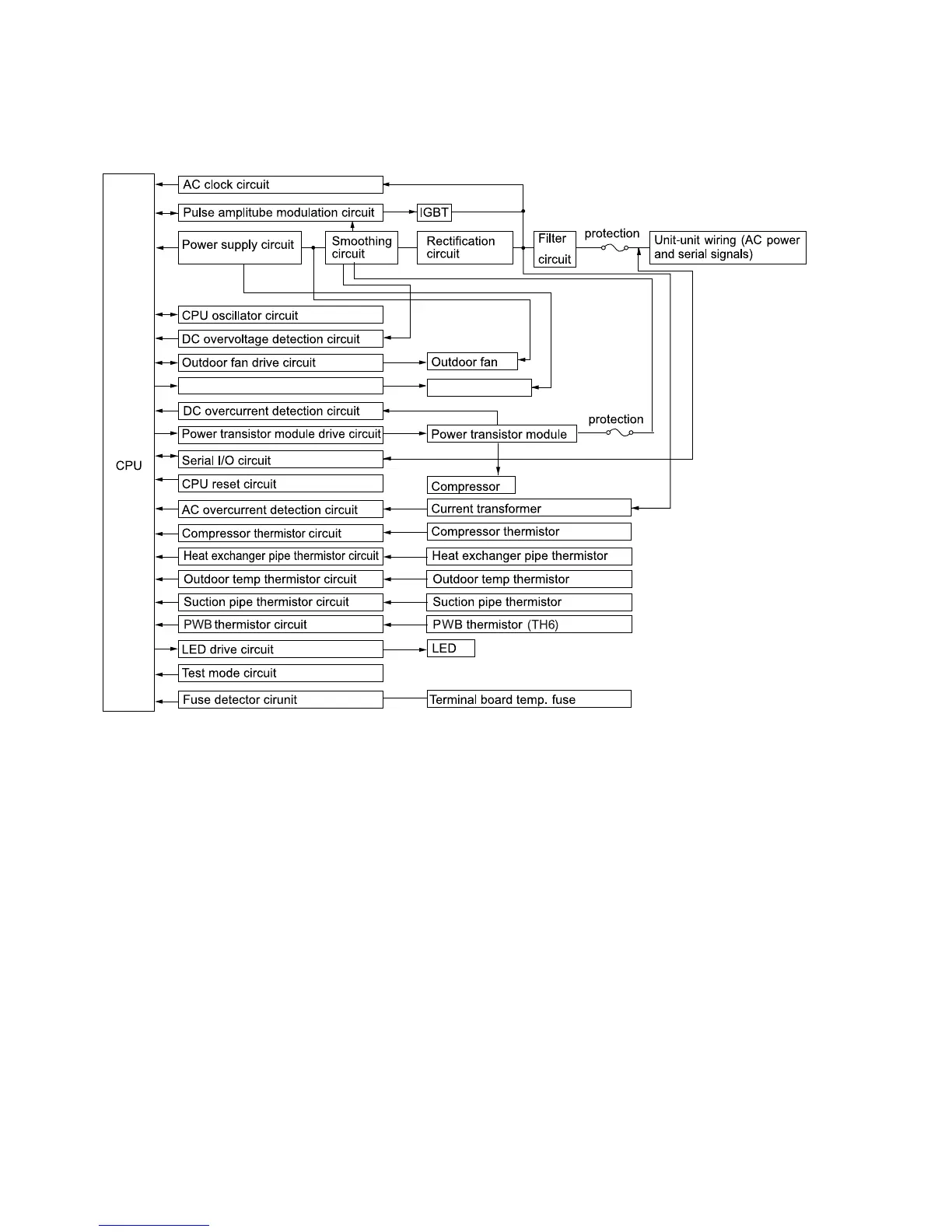

[1] BLOCK DIAGRAMS
1. Outdoor unit
Expansion valve circuit Expansion valve
20A(25A for AE-X24PU)
20A
