CHAPTER 11. TEST MODE

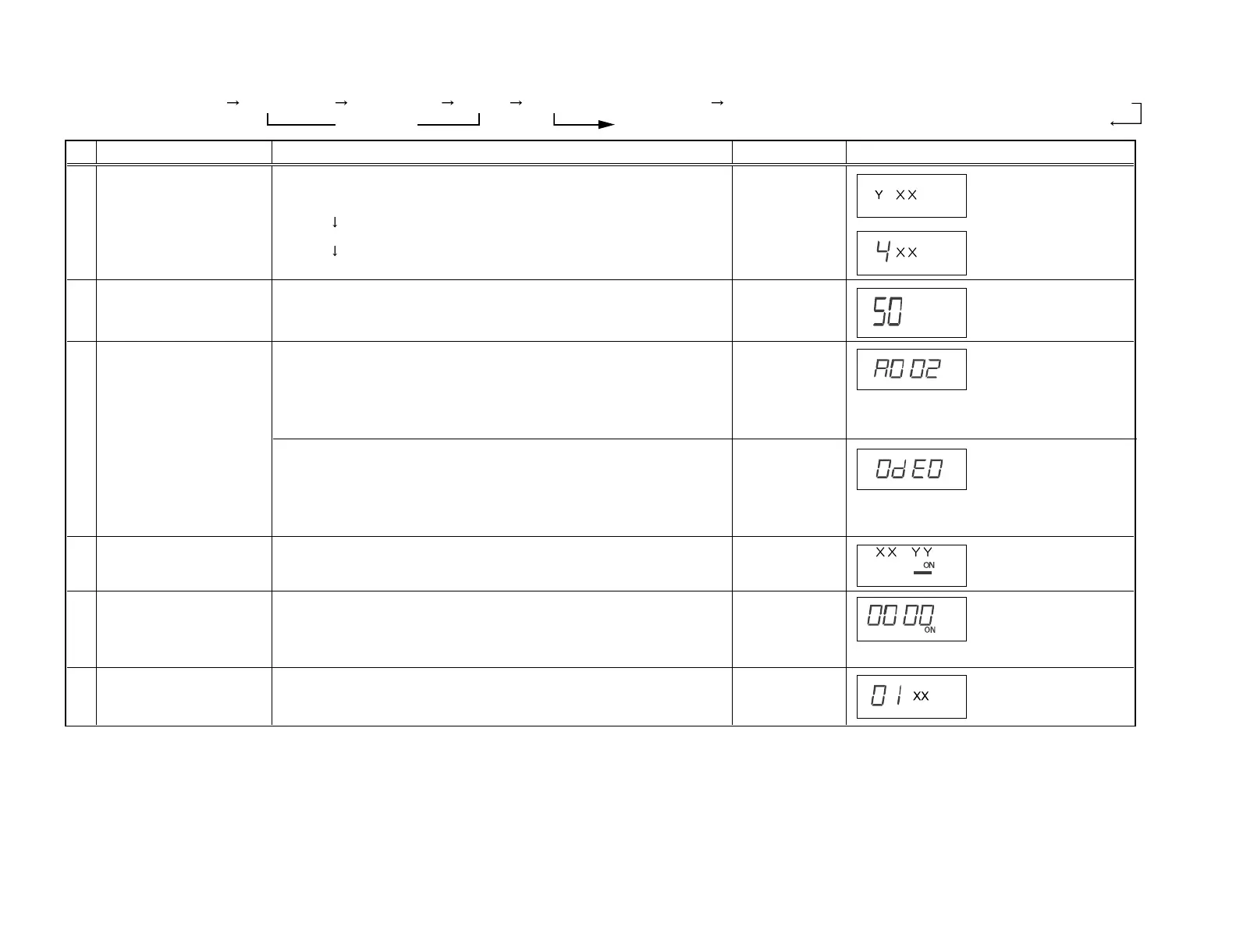

(power on and door closed) [STOP/CLEAR䌝㩷㩷㩷㩷[STEAM HIGH䌝㩷㩷㩷㩷[MICRO] [door open](show ROM version) ([test number is selected by [WEIGHT UP/DOWN] [initial number: 04])
How to operate test mode
within 3 sec
[or push direct select key]
detail of testtest name
N.o
output example of display
OFF
I. DAMPER: OPEN
OFF
I. DAMPER: OPEN
OFF
I. DAMPER: OPEN
OFF
I. DAMPER: OPEN
OFF
I. DAMPER: OPEN
Following A/D data is displayed.A/D data monitor
00
The display of A/D data is changed by pushing [MICRO] key.
(1) Oven thermister (oven mode and fermentation mode)
Oven thermister level
Oven mode XXBit
Fermentation mode Y*Bit
(2) Engine thermister
Return to (1)
Engine thermister level
Measurement data XXBit
Frequency of power supply
50Hz
Frequency of power supply01
Frequency of power supply is displayed.
Buzzer beeps for 2 sec after checking frequency.
(The display is kept.)
02 FLASH ROM data
Address setup mode
by pushing [WEIGHT UP] address is incresed.(+1)
by pushing [WEIGHT DOWN] address is decresed.(-1).
*Reference address range is 00h to 1FFh.
*by pushing [info] the figure of address number is chosen in turn.
by pushing [START] setup moves FLASH ROOM data edit mode
Address 02
A means Address
FLASH ROM data edit mode
by pushing [WEIGHT UP] address is incresed.(+1)
by pushing [WEIGHT DOWN] address is decresed.(-1).
*by pushing [info] the figure of address number is chosen in turn.
by pushing [START] data is written into EEPROM and return address setup mode
*To validate setting , reset power without pushing [STOP/CANCEL].
data EO
d means data.
RY-1, GH, FM
I. DAMPER: CLOSE
RY-1, FM
I. DAMPER: OPEN
03 GRILL thermister check
The GRILL heating at 250ºC start and the display shows standard data and
measurement data of oven thermister at 250ºC.
Standard data X*Bit
Measurement data YYBit
04 Safety check
For Insulation resistance inspection
and withstanding voltage test
for Jun./17. and later version
0021
Cook relay and fan work for 60sec.
Software version
Software version is displayed.
Software version05
01XX
䌛START]
