3. After any service, make sure of the following:
1. Door latch heads smoothly catch latch hook through latch holes
and that latch head goes through centre of latch hole.
Deviation of door alignment from horizontal line of cavity face plate
is to be less than 1.0mm.
2. Door is positioned with its face pressed toward cavity face plate.
3. Check for microwave leakage around door with an approved micro-
wave survey meter. (Refer to Microwave Measurement Proce-
dure.)Deviation of door alignment from horizontal line of cavity face
plate is to be less than 1.0mm.
NOTE: The door on a microwave oven is designed to act as an elec-
tronic seal preventing the leakage of microwave energy from
oven cavity during cook cycle. This function does not require
that door be air-tight, moisture (condensation)-tight or light-
tight. Therefore, occasional appearance of moisture, light or
sensing of gentle warm air movement around oven door is not
abnormal and do not of themselves, indicate a leakage of
microwave energy from oven cavity.

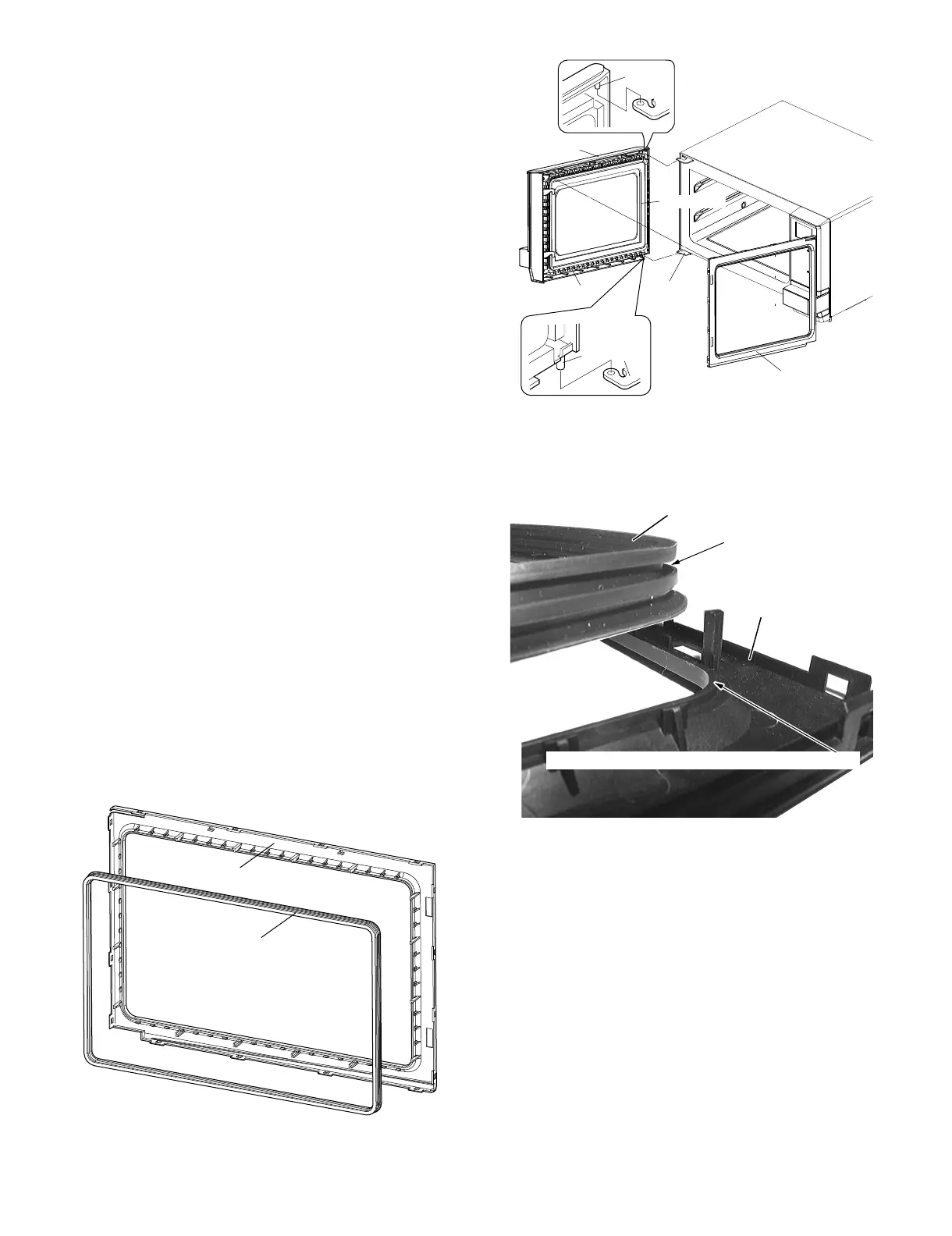

Figure C-9. Door Replacement
[22] INSTALLATION OF DOOR PACKING
1. Turn the door cover to the back side.
2. First, cover the four corners of the door cover opening with four cor-
ners of the door packing.
3. Cover all surroundings of the door cover opening with the ditch of
the door packing surely because the section of the door cover
opening is T letter form. Refer to the expansion photograph of the
door packing and the door cover.
4. Turn the door cover to the face side.
5. Cover surely if there is a part where the door packing doesn't cover
the door cover.
6. It is confirmed for the door packing not to stretch over all surround-
ings, not to remain, and to cling uniformly.
Attention:
• Do not damage the surface of the door packing.
• Confirm there is neither microwave leakage from the door nor
a steam leak after assembly.
Pin
PIN
Lower
Oven
Hinge
Upper
Oven Hinge
Lower
Oven
Hinge
Door Cover
Slit Choke
Door Panel
Door Frame
DOOR COVER
DOOR PACKING
Ditch of the door packing
Door cover opening which the section is T letterform.
