UNPACKING AND INSTALLATION INSTRUCTIONS
7 OVEN INSTALLATION
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO THE MOUNTING INSTRUCTIONS
FOUND ON WALL AND TOP CABINET TEMPLATES.
THE NEXT STEP IS TO READ AND FOLLOW MOUNTING INFORMATION ON WALL AND TOP CABINET
TEMPLATES. THIS OVEN MUST BE ATTACHED TO AT LEAST ONE WALL STUD. SEE WALL CONSTRUCTION
ON PAGE 6.
WHEN DONE WITH TEMPLATES, PROCEED TO MOUNTING SCALE PLATE SECTION.
MOUNTING SCALE PLATE

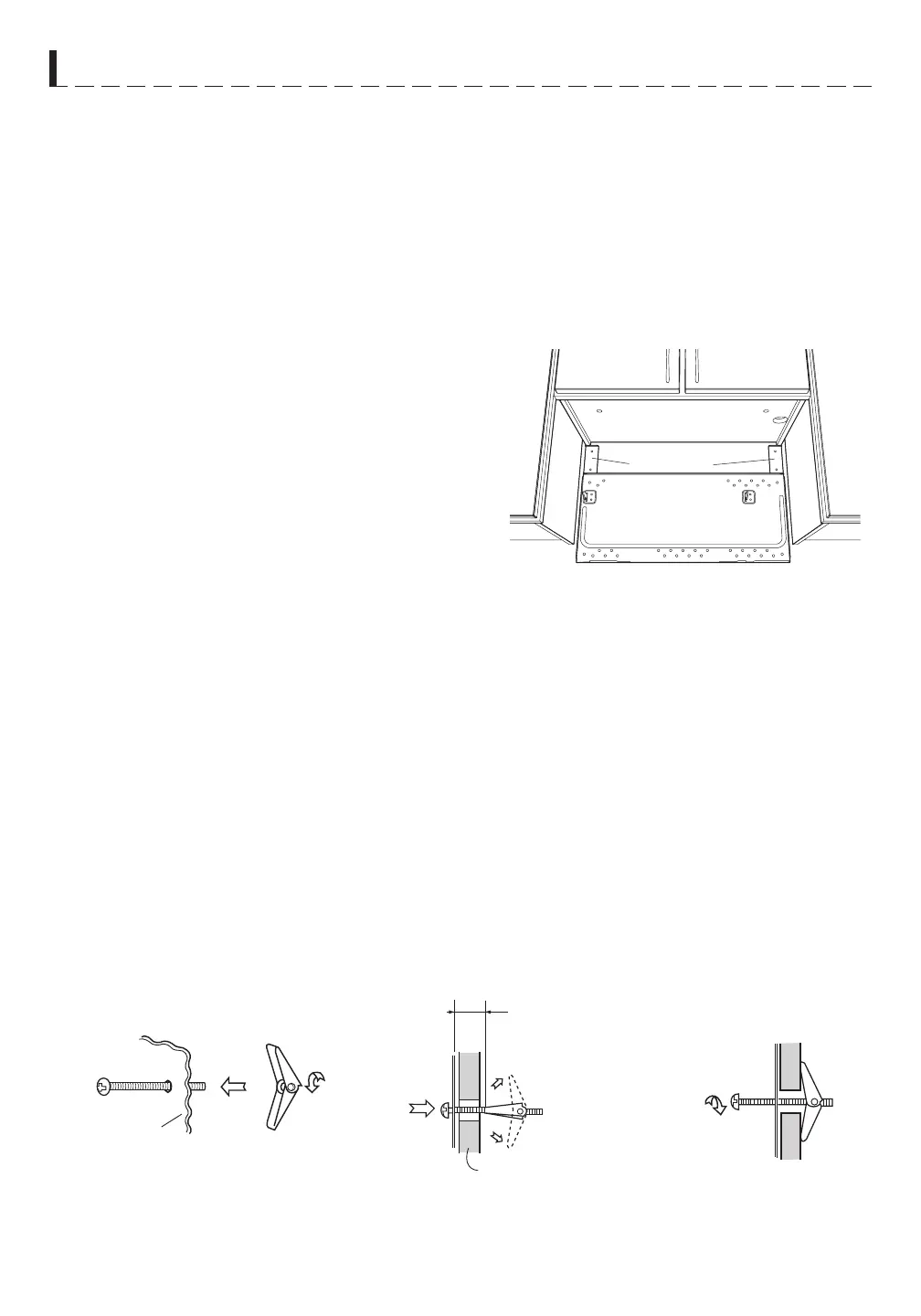

Attach 2 Scale Plates 7 with tape (not included). See
Figure 6 and WALL TEMPLATE for locations.
NOTE:
This Microwave Oven may not be built-in directly over gas or
electricovensorcooktops.Toreducetheriskofreorelec-
trical shock, install at least 13 3/16" above the countertop.
Figure 6
MOUNTING PLATE
1. Separate 4 Toggle Bolts 2, packed in the INSTALLATION HARDWARE, from the Toggle Nuts.
2. Match 5/8” holes (not in studs), drilled through WALL AND TOP CABINET TEMPLATE into wall to corresponding
holes on Mounting Plate.
3. Insert Toggle Bolts into matched openings on Mounting Plate. Put Toggle Nuts on Toggle Bolts. See Figure 7.
4. Position the Mounting Plate with the Toggle Bolts attached at the wall location and insert Toggle Nuts and Bolts
through the holes in the wall with the Toggle Nuts closed. Figure 8. Use Wood Screws 1 to attach the Mounting
Plate to studs.
NOTE: Before insertion, be sure you leave a space more than the thickness of the wall between the Mounting
Plate and the end of each of the Toggle Nuts (in the closed position). If you do not leave enough space, the
Toggle Nut will not be able to open on the other side of the wall. Also, once a Toggle Nut opens, it cannot
be withdrawn from the hole; therefore make sure all of the Toggles are in the correct position before
insertion.
5. Align the Mounting Plate carefully and hold in position while tightening Toggle Bolts. Pull Toggle Bolt toward you
and turn clockwise to tighten. Figure 9.
Figure 7
Figure 8
Figure 9
Wall
Mounting
Plate
Space more than
wall thickness
Mounting Plate
Scale Plates

Sharp Carousel R-1214 Specifications

General

Style	over-the-range
Color	stainless steel
Total Capacity	1.5 cubic feet
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1100 watts
Current	13 amperes

Weight and Dimensions

Depth	15.56 inches
Height	14.06 inches
Width	23.88 inches
Net Weight	55 pounds
