LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
83

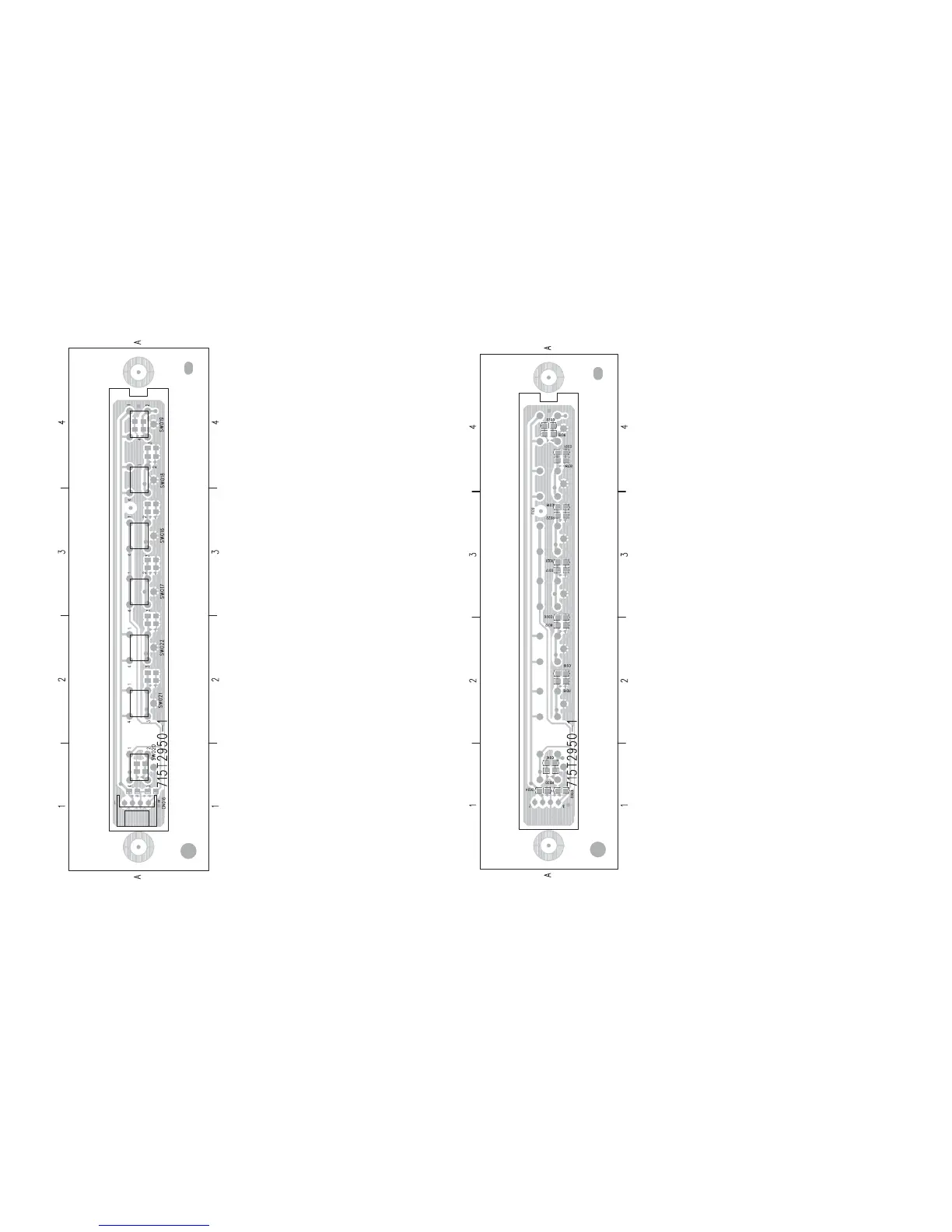

KEY Unit (Side-A)
[3] KEY UNIT PRINTED WIRING BOARD
KEY Unit (Side-B)
CN016 A1
SW016 A3
SW017 A3
SW018 A4
SW019 A4
SW020 A1
SW021 A2
SW022 A2
C016 A1
C017 A3
C018 A3
C019 A2
C020 A2
C021 A4
C022 A4
C023 A1
C024 A1
R016 A2
R017 A2
R018 A4
R019 A4
R020 A1
R021 A3
R022 A3
