Sharp LC-32CFE6242E Service Manual

63

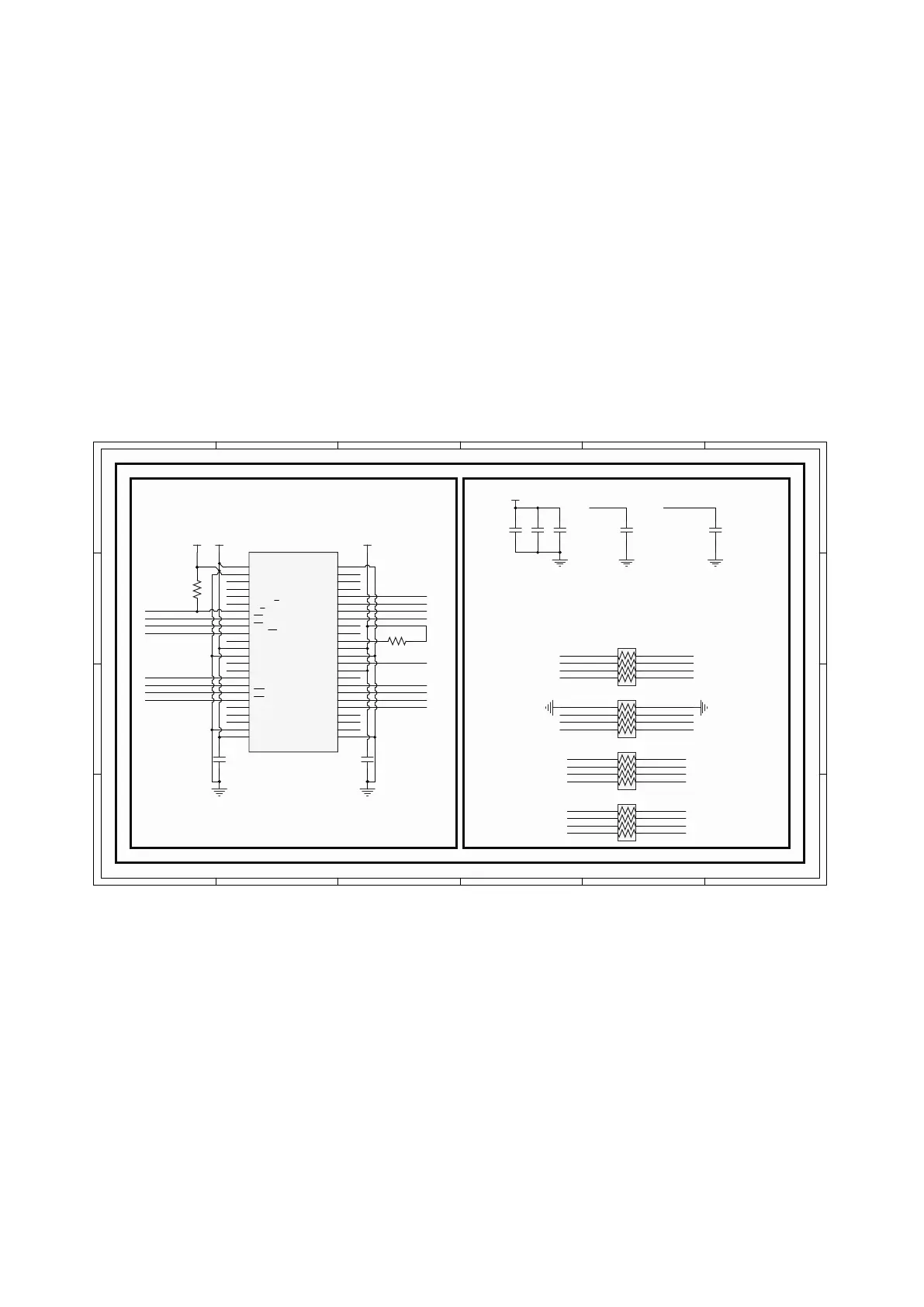

3.5 Wiring diagram of memory
1
1
2
2
3
3
4
4
5
5
6
6
D D
C C
B B
A A
NAND-REZ
NAND-ALE
NAND-WEZ
NAND-WPZ NAND-D1
NAND-D0
NAND-D7
NAND-D6
NAND-D5
NAND-CLE
NAND-D4
NAND-D3
NAND-CEZ
NAND-RBZ
NAND-CEZ1
NAND-D2
NAND-DQS
NAND-D0
NAND-D1
NAND-D2
NAND-D3
NAND-D4
NAND-D5
NAND-D6
NAND-D7
NAND_WPZ
NAND_WEZ
NAND_ALE
NAND_CLE
NAND_CEZ
NAND_REZ
NAND_RBZ
NAND-WPZ
NAND-WEZ
NAND-ALE
NAND-CLE
NAND-CEZ
NAND-REZ
NAND-RBZ
GNDGND
GND GND
3V3_M 3V3_M3V3_M
C50
0.1uF-0402-X5R-��20%-16V
C51
0.1uF-0402-X5R-��20%-16V
R33
NC/0ohm-0402-��5%-1/16W
R/B
7
RE
8
CE
9
NC6/CE2
10
NC7
11
VCC
12
VSS
13
NC8
14
NC9
15
CLE
16
ALE
17
WE
18
WP
19
NC28/VSS
48
NC27
47
NC26
46
NC25
45
D7
44
D6
43
D5
42
D4
41
VCC
37
VSS
36
NC21
35
NC20/VCC
34
NC19
33
D3
32
D2
31
D1
30
D0
29
NC0/VCC
1
NC1/VSS
2
NC2
3
NC3
4
NC4
5
NC5/R/B2
6
NC10
20
NC11
21
NC12
22
NC13/VSS
23
NC14/VCC
24
NC15/VSS
25
NC16
26
NC17
27
NC18
28
NC22/VCC
38
NC23
39
NC24
40
U3
H27U2G8F2CTR-BC
R31
10Kohm-0402-��5%-1/16W
3V3_M
C45
1uF-0402-X5R-��20%-6.3V
C46
0.1uF-0402-X5R-��20%-16V
C47
NC/0.1uF-0402-Y5V-+80%-20%-16V
GND
1 2
3 4
5 6
7 8
RP1
4*22ohm-0402-��5%-1/16W
1 2
3 4
5 6
7 8
RP2
4*22ohm-0402-��5%-1/16W
1 2
3 4
5 6
7 8
RP3
4*22ohm-0402-��5%-1/16W
1 2
3 4
5 6
7 8
RP4
4*22ohm-0402-��5%-1/16W
C48
NC/33pF-0402-NPO-��5%-50V
C49
NC/33pF-0402-NPO-��5%-50V
NAND_WEZ
NAND_REZ
PCM_A6
PCM_A1
PCM_A7
PCM_A2
PCM_A3
PCM_A4
PCM_A5
PCM_A0
GND GND
