6. SOFTWARE UPGRADE
6.1 MSD6308 Upgrade Instruction
6308 including 6308RT, 6308RTE, 6308RTEB and 6308RTEC, you should make sure the main
chipset correspond to the upgrade program before upgrading. This manual provides 3 upgrad-
ing methods with 6308RT as the example, the three methods are: User menu upgrade, Power on
upgrade, TFTP (network) upgrade.
Main chipset DEMOD DDR Upgrade le name
MSD6308RT ISDB-T 256MB AllUpgrade_6308RT.bin
MSD6308RTE DVBT/T2/C 256MB AllUpgrade_6308RTE.bin
MSD6308RTEB DVBT/C 256MB AllUpgrade_6308RTE.bin
MSD6308RTEC DVBT/T2/C 128MB AllUpgrade_6308RTEC.bin
At the beginning of upgrading, if prompt “PWM_REF doesn’t match”, please make sure the
new software PWM_REF won’t damage the panel, and then change the le name into AllUp-
grade_6308_SOS.bin and power on to upgrade.
6.2 User Menu Upgrade
A Operation Procedure
• Turn on the TV set
• Copy the bin le to the root directory of USB device
• Plug the USB device to the USB port
• Select “Software Update (USB)” on the OSD and follow the instructions. TV will switch-o
automatically after upgrading nished.

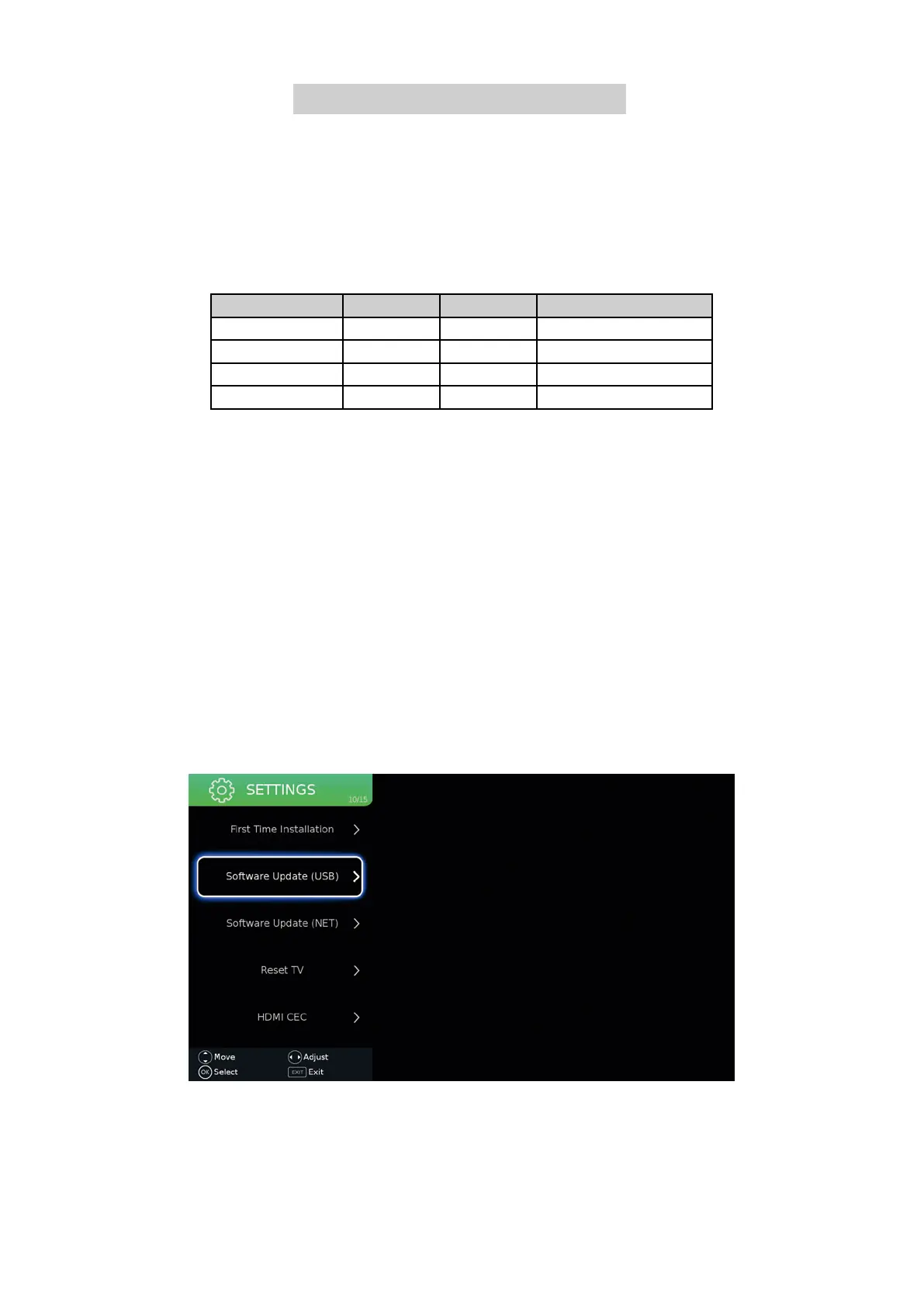

The upgrade process prompts as follows:

Sharp LC-32CFE6242E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	32 \
Display brightness	280 cd/m²
Display technology	LED
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	81 cm
Motion interpolation technology	Active Motion 400
3D	No
Voltage tolerance	20 %
Supported file systems	FAT16, FAT32, NTFS
Annual energy consumption	45 kWh
Audio system	B/G, D/K, I, L NICAM/A2
Audio decoders	Dolby Digital, DTS 2.0, DTS TruSurround, Dolby Digital Plus
RMS rated power	8 W
Number of speakers	2
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
DVI port	-
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	Aquos Net+
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Video apps	YouTube
Lifestyle apps	Facebook, Twitter
Audio formats supported	AAC, AC3, EAC3, M4A, MP3, WMA
Image formats supported	BMP, JPEG XR, JPG, PNG
Video formats supported	ASF, AVI, FLV, M2TS, M4V, MKV, MP4, MPG, RM, RMVB, SWF, TS, VOB, WMV
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Power consumption (PowerSave)	31 W
Certification	CE (EMC), CB (Safety), ErP (Energy)
Product color	Black
Panel mounting interface	400 x 200 mm

Weight and Dimensions

Depth (with stand)	168 mm
Height (with stand)	461.3 mm
Weight (with stand)	4500 g
Depth (without stand)	68.3 mm
Width (without stand)	728.3 mm
Height (without stand)	425.9 mm
Weight (without stand)	4300 g
