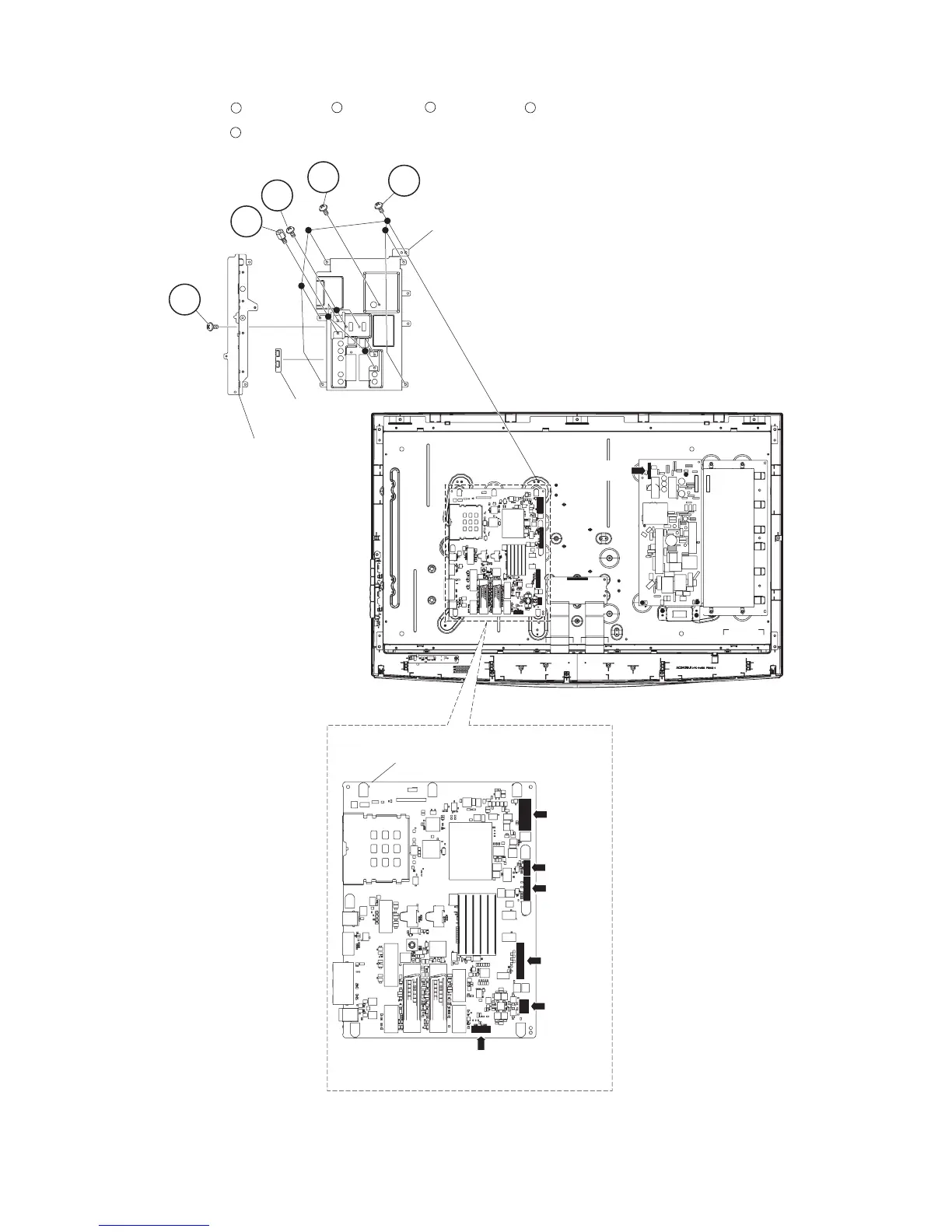

3. Removing of Main PWB Shield and AV Cover Ass’y.
1. Remove all the connectors from all the PWBs.
2. Remove the 4 lock screw , 2 lock screws , 1 lock screw , 6 lock screws and detach the Main PWB Shield.
3. Remove the 1 lock screw and detach the AV Cover Ass’y.
1
2
3
4
5
1
2
3
4
5
Main PWB Shield
Earth Plate
AV Cover Ass'y
[PD/LB]
Main PWB
[RA/KM]
[SP]
[LW]
[LP]
[LB]
[PD]
