LC-32DH57E-BK/RU-BK/S-BK
7 – 1
LC-32DH57E-BK
Service Manual
CHAPTER 7. PRINTED WIRING BOARD
[1] MAIN UNIT PRINTED WIRING BOARD
1
2
10976543 8
J
A
B
C
D
E
F
G
H
I
1311 191816151412 17

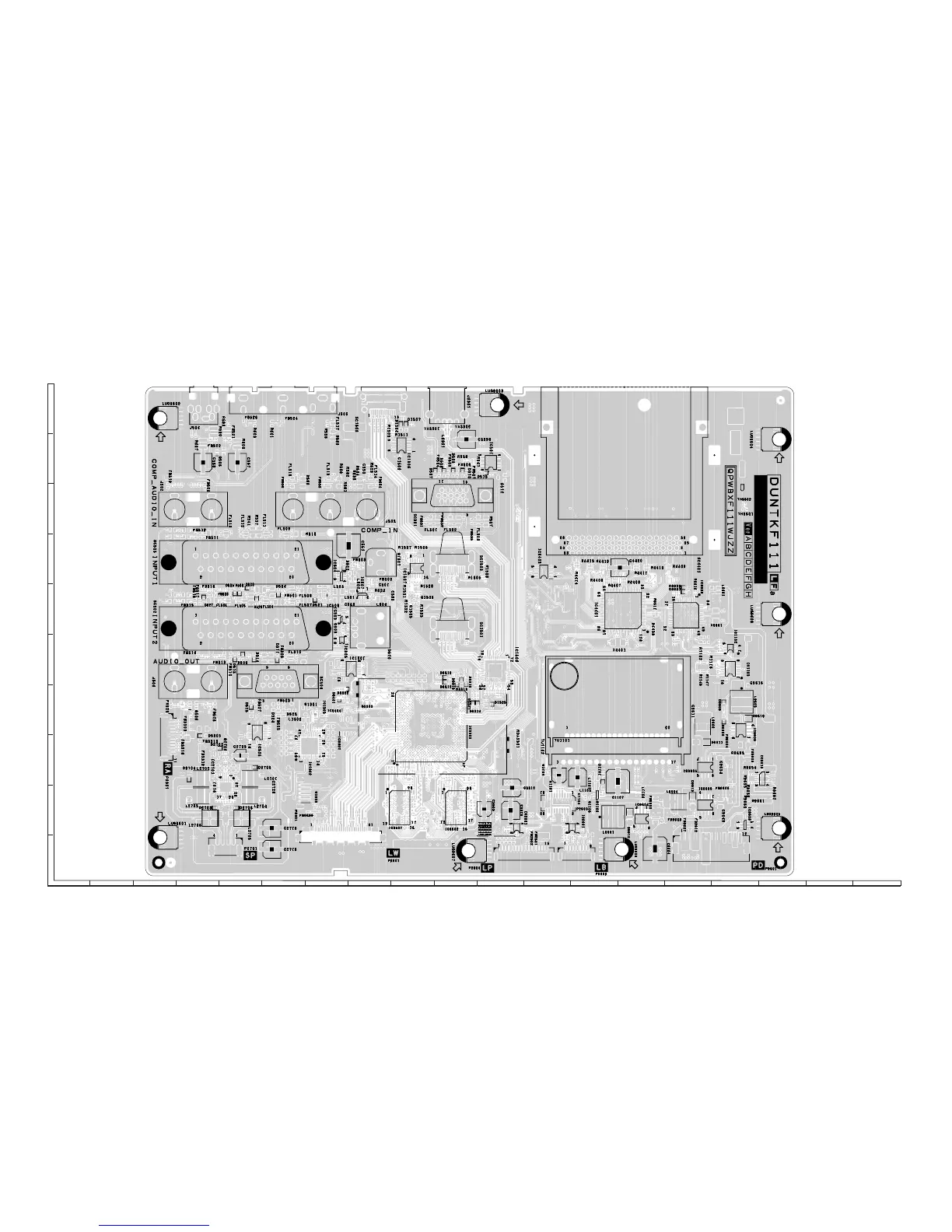

MAIN Unit (Side-A)
