Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
LC-32G4U/G4D
LC-37G4U/G4D
SERVICE JIGS
SPAKCB578WJZZ – Packing Case(Bottom) —
SPAKCB577WJZZ – Packing Case (Top)(LC-32G4U) —
SPAKCB596WJZZ – Packing Case (Top)(LC-32G4D) —
SPAKL0023CEZZ – Joint, x2 —
SPAKXA502WJZZ – Buffer Material —
SSAKA0170CEZZ – Polyethylene Bag —
SPAKFA555WJZZ – Side Pad (Left) —
SPAKFA554WJZZ – Side Pad(Right) —
SPAKPA376WJZZ – Wrapping Paper (Display)(LC-32G4U) —
SPAKPA392WJZZ – Wrapping Paper (Display)(LC-32G4D) —
SPAKPA377WJZZ – Wrapping Paper(Stand)(LC-32G4U) —
SPAKPA393WJZZ – Wrapping Paper(Stand)(LC-32G4D) —
TLABK0001TAZZ – Bar Code Label —
TLABKA013WJZZ – Two dimentions Bar Code Label —
LCD CONT UNIT to LCD, x2
QCNW-C223WJQZ J 12pins L=1000mm AX
LCD CONT to INVERTER1
QCNW-C224WJQZ J 8pins L=1000mm AU
LCD CONT to INVERTER1 GND
QCNW-C225WJQZ J 5pins L=1000mm AQ
LCD CONT to KEY PWB
QCNW-C226WJQZ J 7pins L=1000mm AT
LCD CONT to POWER UNIT
LC-32G4U/G4D
LC-37G4U/G4D
PACKING PARTS
(NOT REPLACEMENT ITEM)
SPAKCB238WJZZ – Packing Case(Top & Bottom)—
(LC-37G4U)
SPAKCB595WJZZ – Packing Case (Top)(LC-37G4D) —
SPAKCB589WJZZ – Packing Case (Bottom)(LC-37G4D) —
SPAKL0023CEZZ – Joint, x2 —
SPAKPA251WJZZ – Wrapping Paper (Stand) (LC-37G4U) —
SPAKPA393WJZZ – Wrapping Paper (Stand) (LC-37G4D) —
SPAKPA324WJZZ – Wrapping Paper (Display)(LC-37G4U) —
SPAKPA394WJZZ – Wrapping Paper (Display)(LC-37G4D) —
SPAKPA330WJZZ – Wrapping Paper (SP-L ) (LC-37G4U) —
SPAKPA336WJZZ – Wrapping Paper (SP-R ) (LC-37G4U) —
SPAKPA406WJZZ – Wrapping Paper (SP-L ) (LC-37G4D) —
SPAKPA407WJZZ – Wrapping Paper (SP-R ) (LC-37G4D) —
SPAKXA465WJZZ – Buffer Material (LC-37G4U) —
SPAKXA589WJZZ – Buffer Material (Top) (LC-37G4D) —
SPAKXA590WJZZ – Buffer Material(Bottom) (LC-37G4D) —
SPAKXA591WJZZ – Buffer Material (Stand) (LC-37G4D) —
SPAKFA558WJZZ – Packing Material —
SPAKFA564WJZZ – Packing Material (LC-37G4U) —
SPAKFA492WJZZ – Packing Material, x2 (LC-37G4U) —
SSAKA0170CEZZ – Polyethylene Bag —
TLABK0001TAZZ – Bar Code Label —
TLABKA013WJZZ – Tow dimensions BarCode Label —
ACCESSORIES
å QACCDA019WJPZ J AC Cord (LC-32G4U) AW
å QACCZA022WJPZ J AC Cord (LC-32G4D) AW
LHLDW0110CEZZ J Cable Clamp AE
å QACCDA019WJPZ J AC Cord (LC-32G4U) AW
å QACCZA022WJPZ J AC Cord (LC-32G4D) AW
XBBS940P06000 J Screw, x2 AB
LHLDW0110CEZZ J Cable Clamp AE
LC-32G4U/G4D
LC-37G4U/G4D

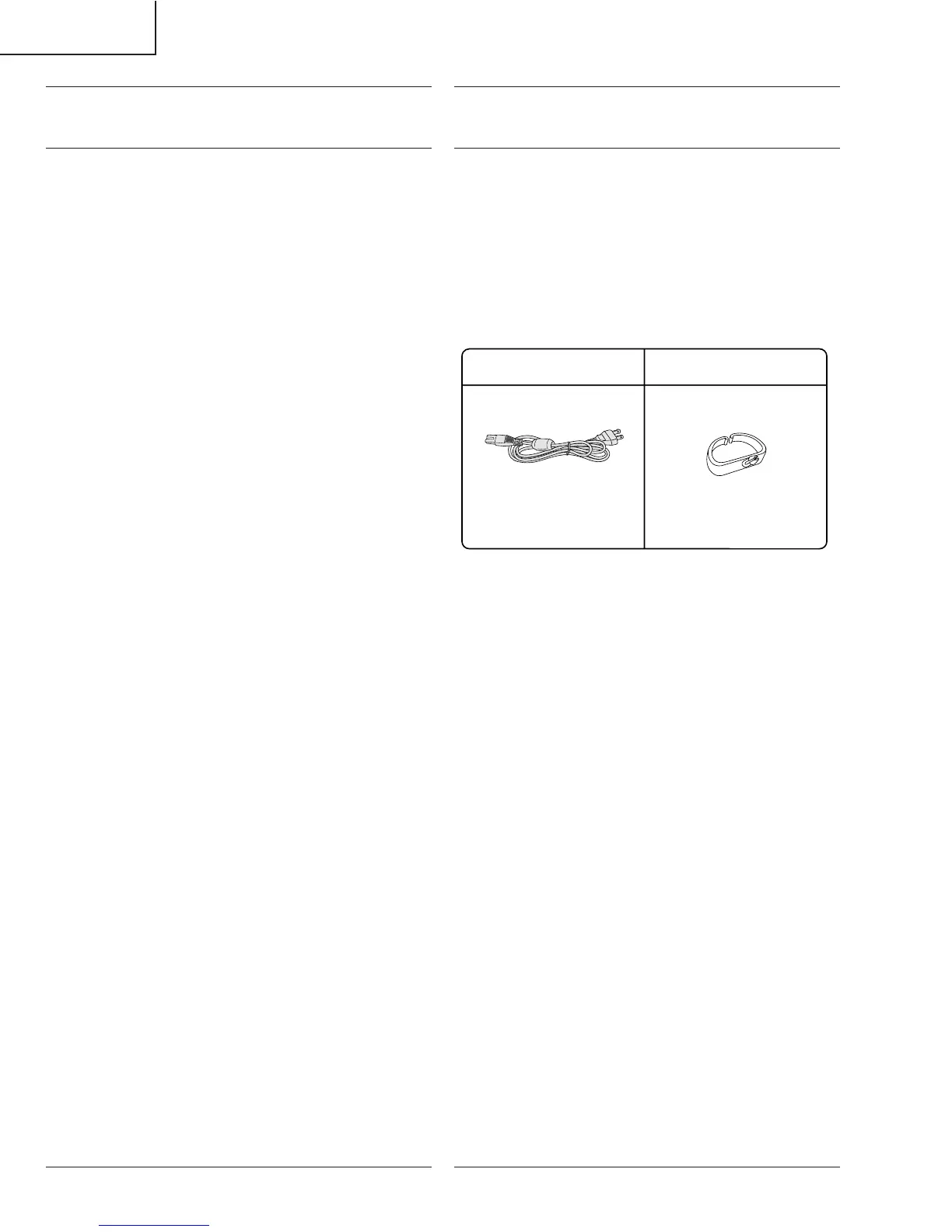

Cable clamp ( x 1)
LHLDW0110CEZZ
QACCDA019WJPZ
AC cord ( x 1)
QCNW-C222WJQZ J 80pins FFC L=1000mm AW
