STEP 2. Connect devices to your TV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect
the quality of the picture image and color.

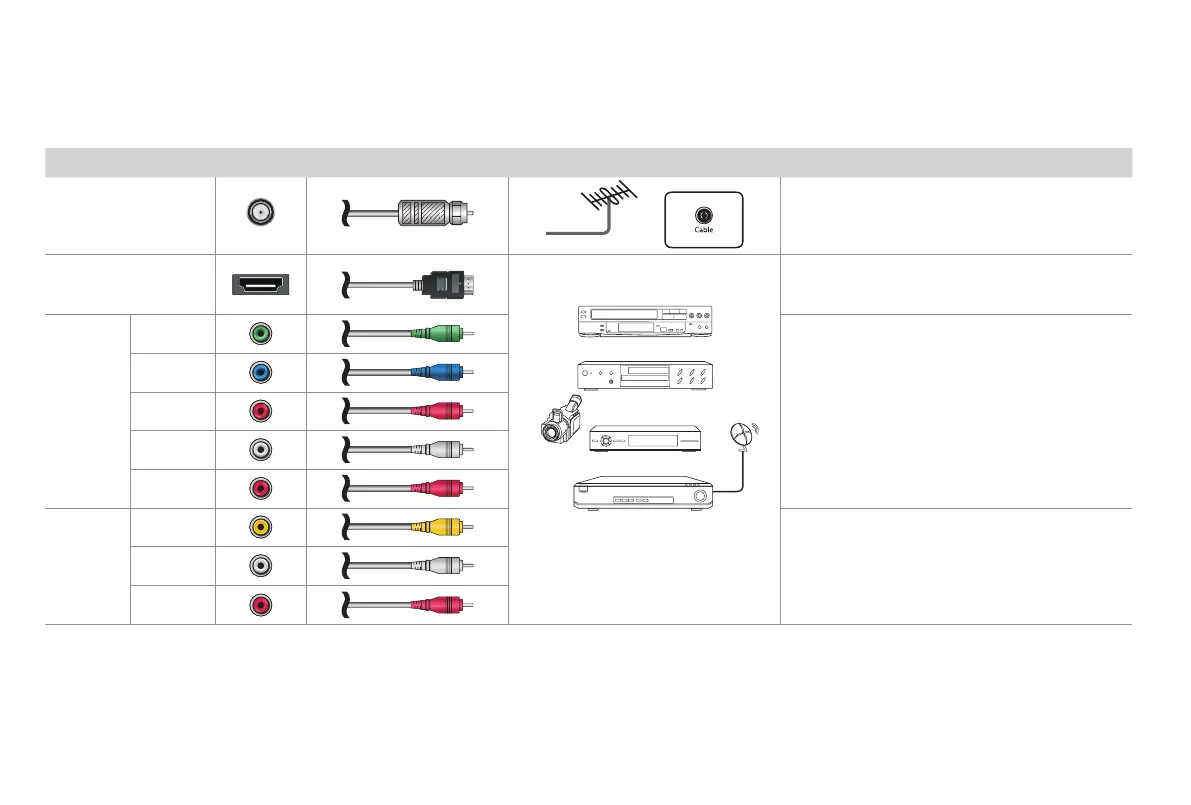

TV label Port Cable External Equipment Brief Description
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
COMPO-
NEN T IN
Y
Green
P
B
Blue
P
R
Red
L
White
R
Red
AV IN
VIDEO
Yellow
audio cables from an external AV device.
L
White
R
Red
Connect a High Definition Multimedia Interface
(HDMI) cable from an external device.
RF
Connect a composite video cable and left-right
Connect a component video cable and left-right
audio cables from an external audio visual(AV)
device.
