CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1. Detach the SD Card Cover.
2. Remove the 2 lock screws and detach the Stand Cover.
3. Remove the 4 lock screws and detach the Stand.
4. Remove the SP Wire (L)(R). Remove the 4 lock screws and detach the Speaker Box.
5. Remove the 13 lock screws, 6 lock screws, 4 lock screws and detach the Rear Cabinet.

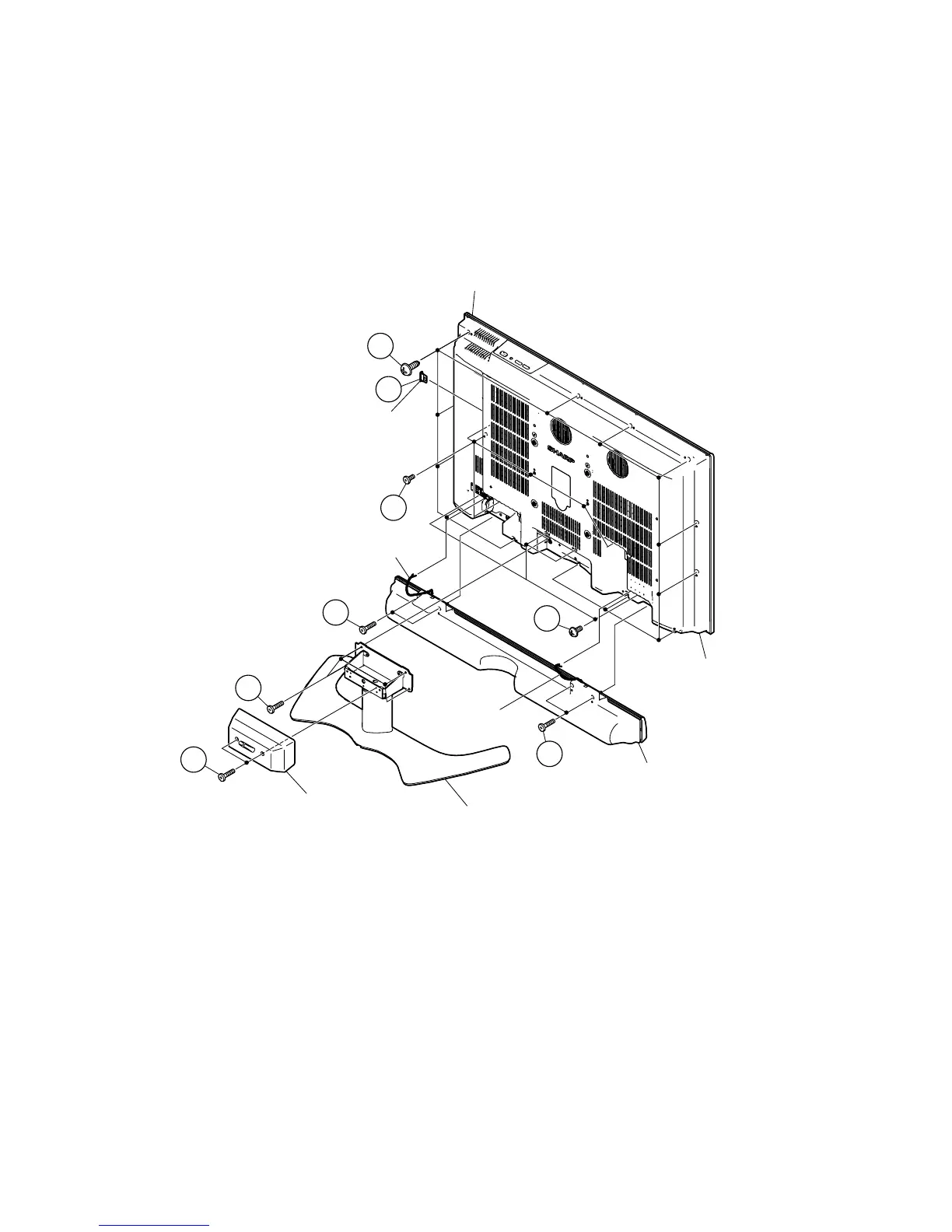

SD Card Cover
Stand Cover
Stand
Speaker Box
SP Wire (R)
SP Wire (L)
Rear Cabinet
Front Cabinet
1
2
5
5
4
4
5
3
