LC-37D90U
5 – 11

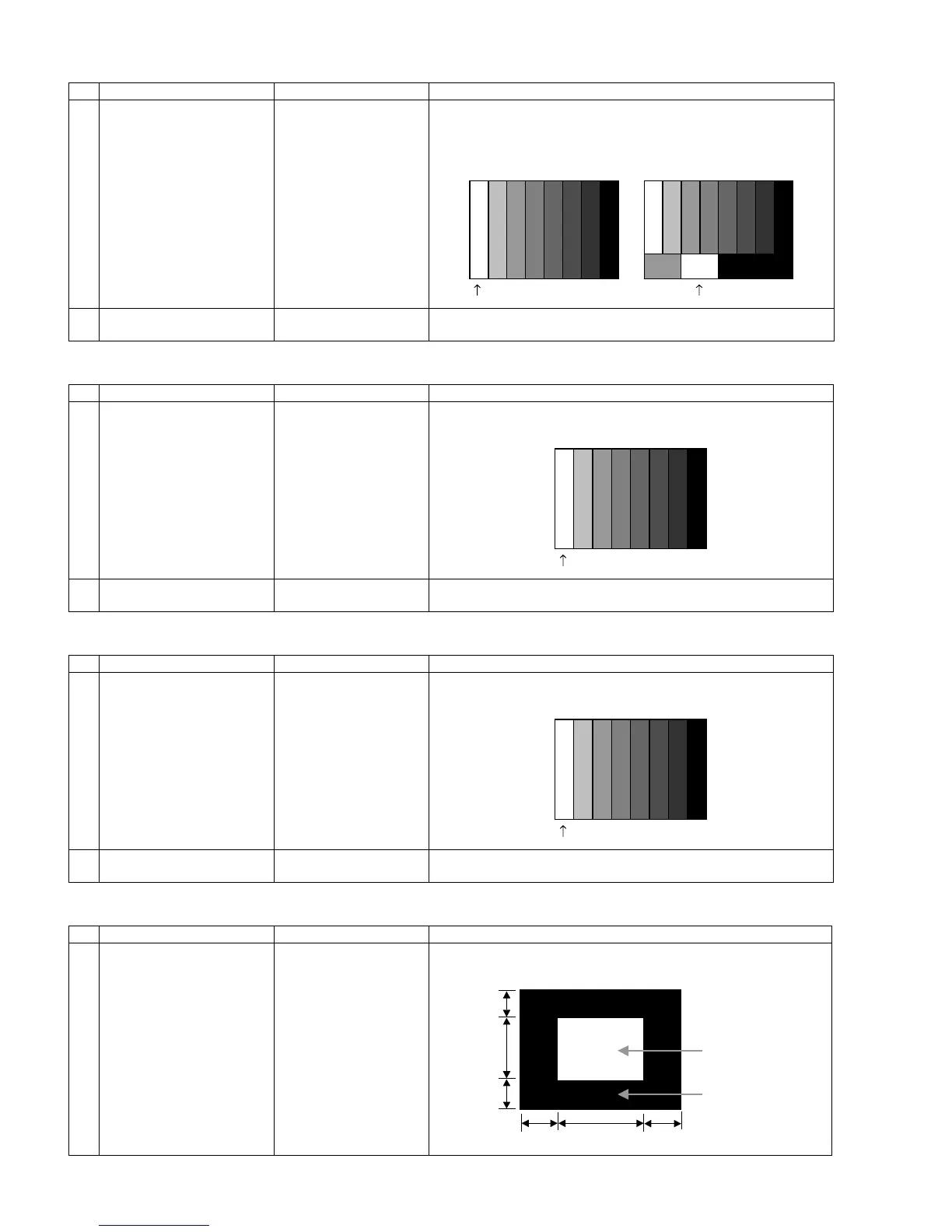

7.3. N358 composite signal adjustment (Tuner)
7.4. Component 15K signal adjustment
7.5. Component 33K signal adjustment
7.6. DVI-I (analog) signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment N358 signal Feed the PAL split field color bar signal (75% color saturation) to VIDEO
1 input. Feed the RF signal (by use of US-10ch) to TUNER-A.
2 Auto adjustment
performance
Page 3/27 Bring the cursor on [•N358 ALL ADJ] and press [ENTER].
[•N358 ALL ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 480i signal Feed the 100% color bar signal to INPUT 1 component input.
2 Auto adjustment
performance
Page 5/27 Bring the cursor on [•COMP 15K ALL ADJ] and press [ENTER].
[•COMP 15K ALL ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 1080i signal Feed the 100% color bar signal to INPUT 1 component input.
2 Auto adjustment
performance
Page 6/27 Bring the cursor on [•HDTV ADJ] and press [ENTER].
[•HDTV ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment DVI-I (analog)
XGA (1024 x 768)
60Hz
H,V SYNC
Feed the 100% white 1/2 window pattern signal to DVI-I (analog) input.
[Video input signal] [US-10CH]
100% white 100% white
100% white
100% white
100% White
0% Black
1/4
1/4
1/2
1/4
1/4
1/2
To Next Page
