16
LC-50LB261U Sharp 50" LED TV
www.sharpusa.com
AV (composite video) (good)
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.

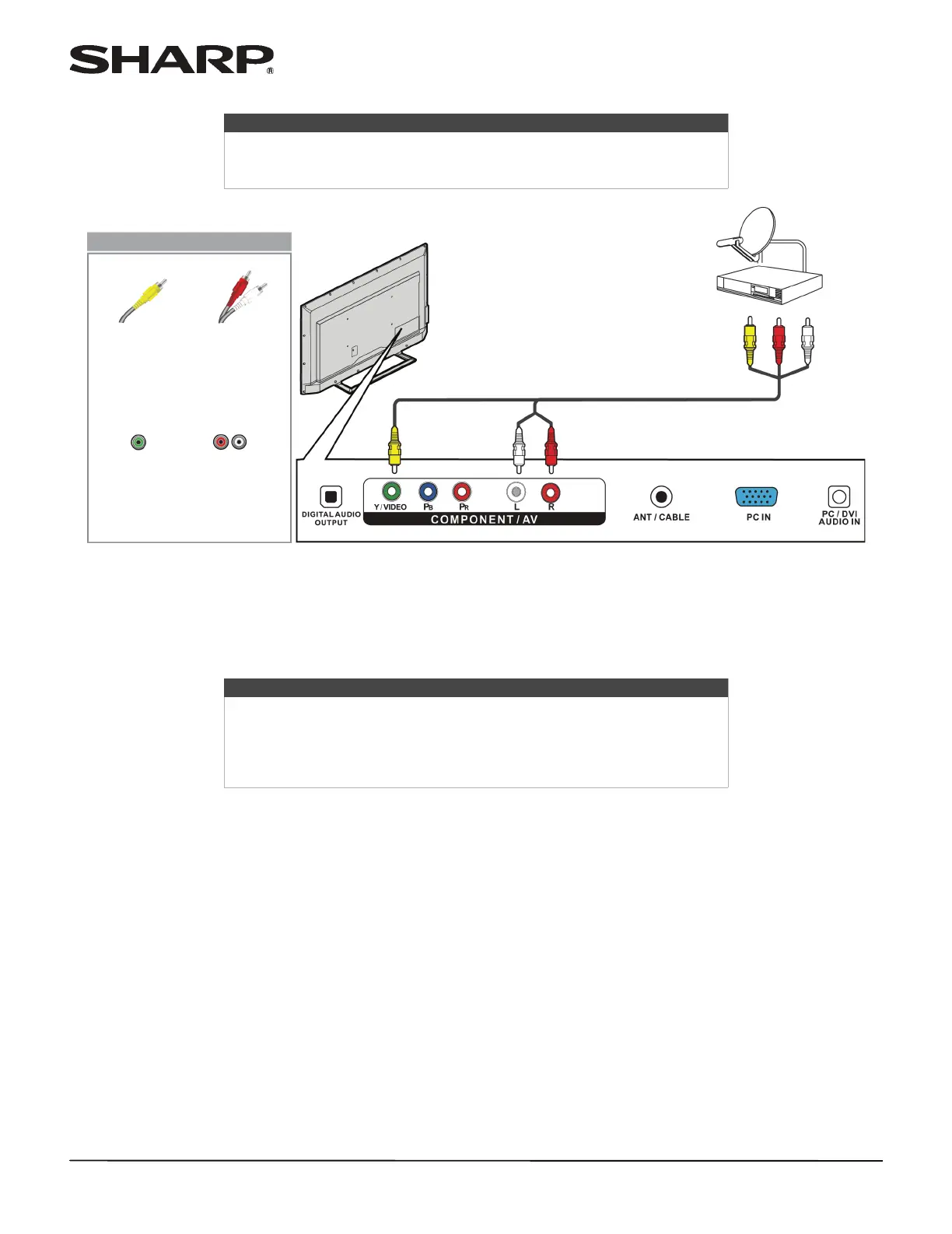

3 Connect an AV cable (not provided) to the Y/VIDEO jack and L and R audio jacks on the back of your TV and to the
composite video and audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
Y/VIDEO jack.
Notes
•The Y/VIDEO, P
B, and PR video jacks (used to connect a component
video device) share the L and R audio jacks with the Y/VIDEO jack (used
to connect a composite video device).
• When you connect the audio using the L and R audio jacks, the audio
output is analog.
Cable or
satellite box
AV cable
Back of TV
Composite
video cable
connector
Composite
video jack
Audio cable
connectors
Analog
audio jacks
On your TV
