LC-52LE920UN/LC-60LE920UN

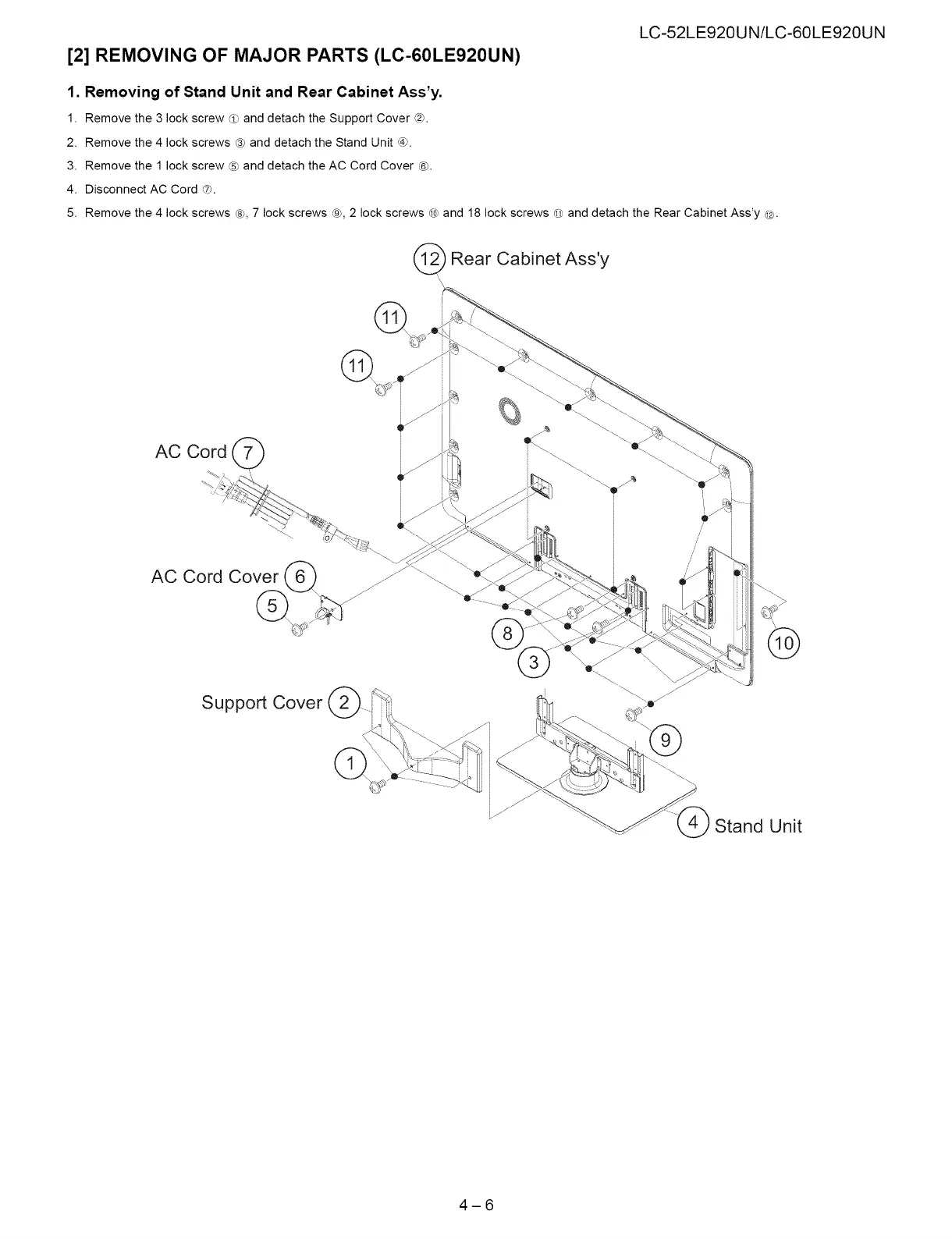

[2] REMOVING OF MAJOR PARTS (LC-60LE920UN)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 3 lock screw © and detach the Support Cover ®.
2. Remove the 4 lock screws @ and detach the Stand Unit @.
3. Remove the 1 lock screw © and detach the AC Cord Cover ©.
4. Disconnect AC Cord @.
5 . Remove the 4 lock screws ©, 7 lock screws @, 2 lock screws @ and 18 lock screws @ and detach the Rear Cabinet Ass’y @.
(12) Rear Cabinet Ass'y
