LC-52LE920UN/LC-60LE920UN

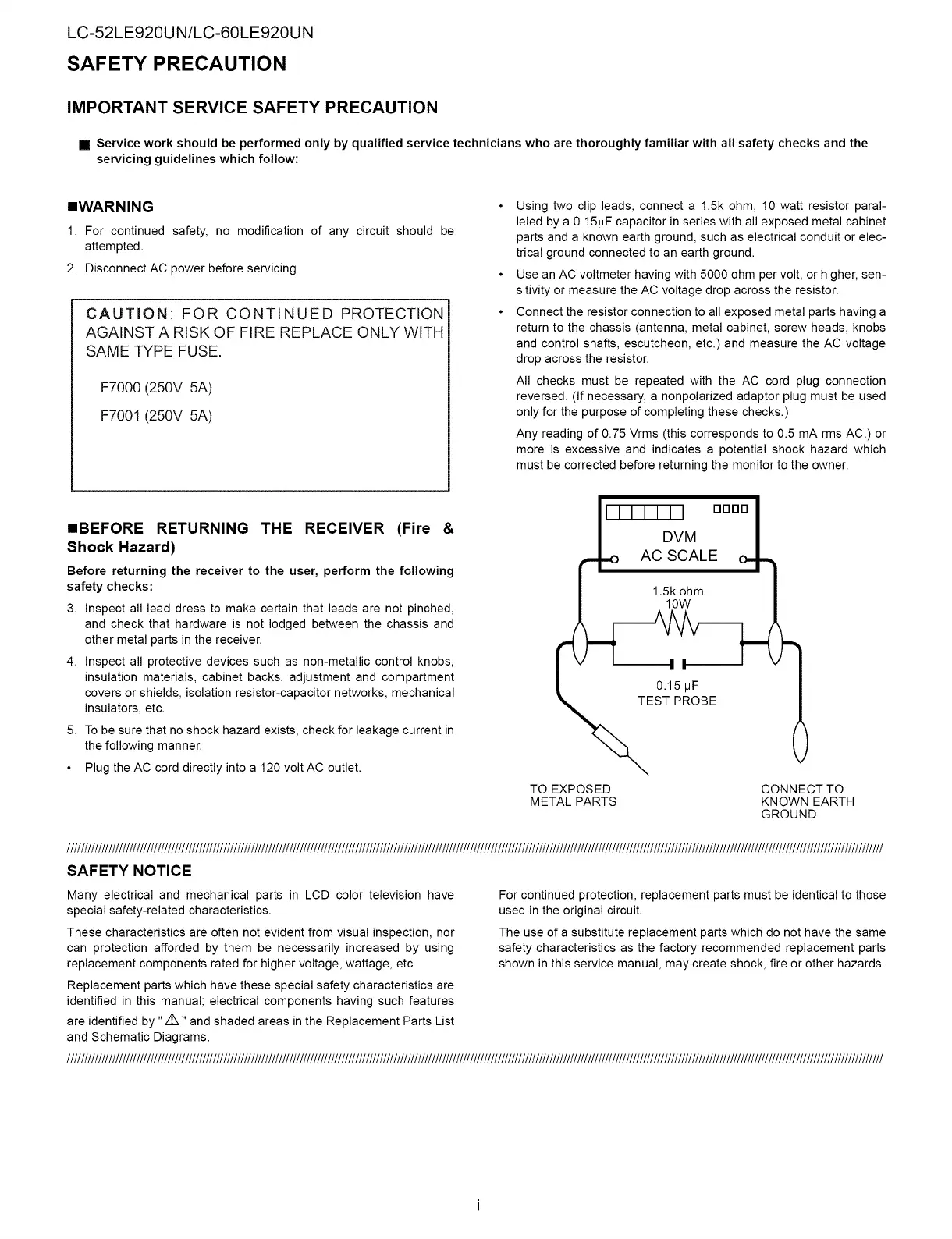

SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
mm Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
SWARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
CAUTION: FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F7000 (250V 5A)
F7001 (250V 5A)
MBEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.
5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
« Plug the AC cord directly into a 120 volt AC outlet.
« Using two clip leads, connect a 1.5k ohm, 10 wait resistor paral-
leled by a 0.15uF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
« Use an AC voltmeter having with 5000 ohm per voit, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
+ Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
OT sss
DVM
Lo ACSCALE oJ
1.5k ohm
10W
5h
ag
0.15 pF
TEST PROBE
TO EXPOSED CONNECT TO
METAL PARTS KNOWN EARTH
GROUND
TILLIATTELLTETEALL LTE TLL LITLE TE TELL TLE TLE TET TEE TET TET TELLTALE ETT TEE
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " A\" and shaded areas in the Replacement Parts List
and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
TILLIALTELLTETEALIL LTTE TLI ALTE TE TELLTALE TTT TEE TEE TLTE ETE TEE TETETTTTTTE TL ETTTTTET TT ETTTTTT
